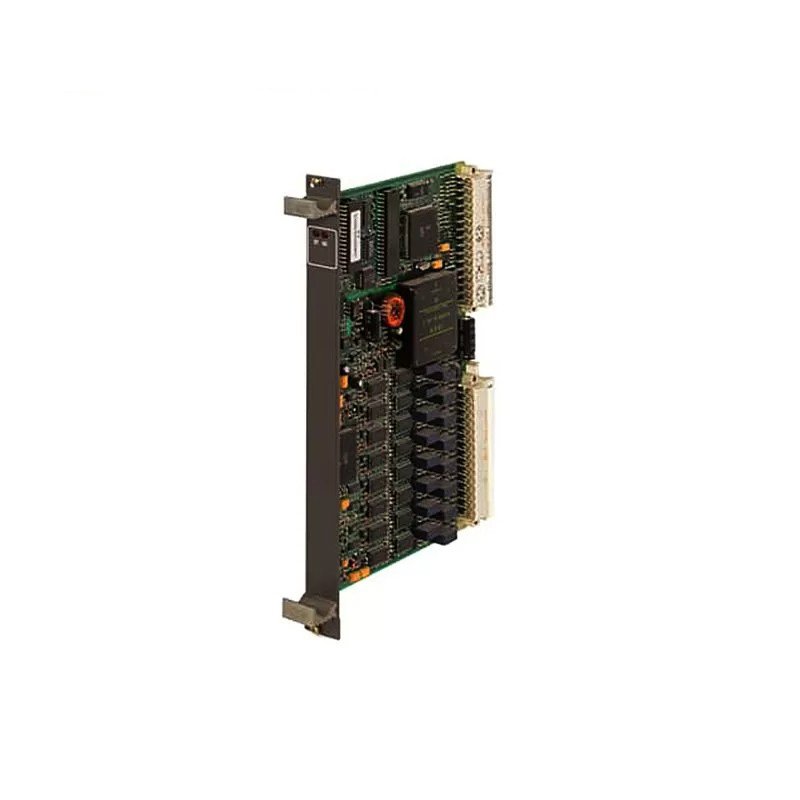

ABB 88TR01 PROCONTROL P Input/Output Signal Conditioning

ABB 88TR01 PROCONTROL P is a signal conditioner designed to seamlessly interface between process sensors and industrial control systems. Here’s a breakdown of its key aspects:

• Conditions Sensor Signals: Takes raw signals from sensors and converts them into formats compatible with control systems.
• Boosts Signal Strength: Amplifies weak signals to ensure reliable transmission.
• Isolates Signal Grounds: Prevents ground loops and electrical noise from affecting measurements.

Key Features

• Universal Input/Output: Supports a wide range of sensor types and control system interfaces.
• Configurable Signal Scaling: Allows for customized scaling of input and output signals for optimal performance.
• Diagnostic Capabilities: Provides real-time insights into signal health and potential issues.

Technical Specifications :

• Input Voltage Range: Typically ±10V, ±20mA (depending on model)
• Output Voltage Range: ±10V, ±20mA (depending on model)
• Isolation Voltage: Up to 2500 VDC

Applications

• Process Industry: Signal conditioning for pressure, temperature, flow, and level sensors.
• Factory Automation: Interface sensors for robotics, assembly lines, and machine control.
• Power Generation: Monitoring and control of critical parameters in power plants.

Benefits

• Enhanced System Performance: Ensures accurate and reliable data acquisition from process sensors.
• Simplified System Integration: Universal compatibility streamlines connection between sensors and controllers.
• Increased System Uptime: Diagnostic features enable proactive maintenance and prevent downtime.

• Flexibility: It can be used for a variety of applications, from small local control systems to large generation units
• Openness: It can be integrated with existing systems, making it suitable for retrofitting and refurbishing existing plants
• Functionality: It offers a wide range of features for boiler protection, turbine control, engineering, and diagnostics
