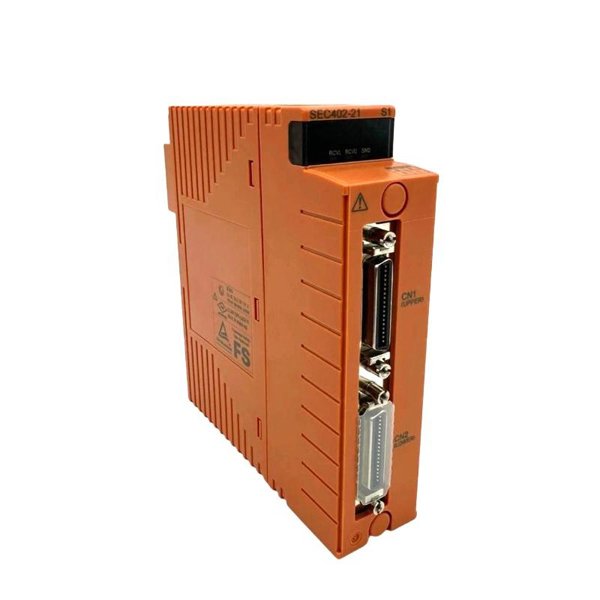

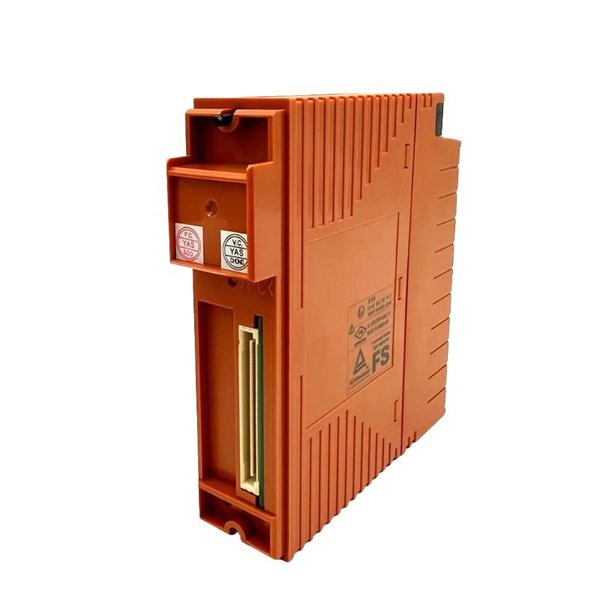

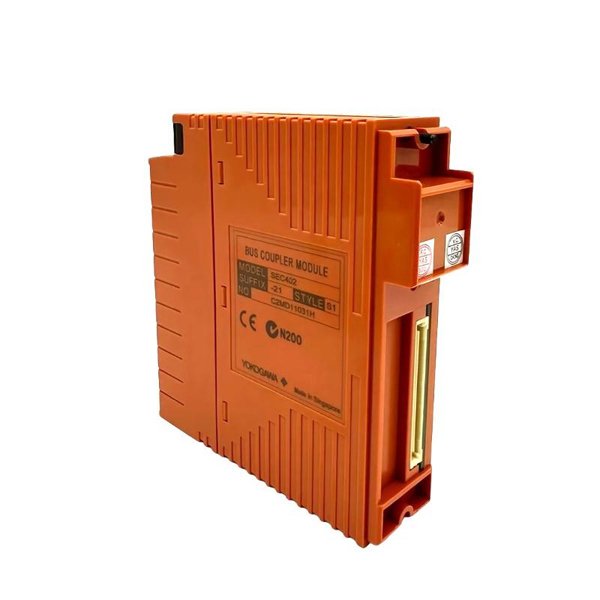

Yokogawa SEC402 ESB Bus Coupler Module

The Yokogawa SEC402 is a high-performance ESB Bus Coupler Module that serves as a vital communication bridge within Yokogawa’s CENTUM VP and CENTUM CS 3000 Distributed Control Systems (DCS). Its primary function is to interface the Field Control Station (FCS) with the I/O modules over the ESB (Enhanced System Backbone) bus, ensuring high-speed, synchronized, and reliable data transmission across control networks.

Designed with a focus on fault tolerance, redundancy, and modular expansion, the SEC402 supports both single and dual-redundant bus configurations. It enables seamless signal exchange between the control processor and I/O modules, while also offering robust electrical isolation and diagnostic functions. The module is known for its durability, efficient bus bandwidth utilization, and compatibility with Yokogawa’s wide range of FIO (Field I/O) modules.

Whether deployed in batch control systems, large process industries, or compact automation architectures, the SEC402 provides the backbone communication essential for maintaining reliable plant operations.

Product Specifications

Product Applications

The SEC402 Bus Coupler Module is extensively used in industrial settings where distributed I/O systems require consistent and high-speed communication between the Field Control Station and I/O nodes. Key application areas include:

• Chemical Processing Plants – Ensures rapid and stable signal exchange for reaction and blending systems.

• Petrochemical Refineries – Facilitates distributed I/O control across large plant areas.

• Power Generation Facilities – Interfaces turbine and boiler I/O with core control systems.

• Water and Wastewater Management – Connects remote valve and sensor signals over long distances.

• Pharmaceutical Manufacturing – Maintains GMP-compliant, real-time data integration between control and field equipment.

• Steel and Cement Industries – Supports precise synchronization between heavy-duty process modules.

The SEC402 is especially beneficial in redundant architectures, segment-isolated networks, and high-availability DCS platforms.

Product Advantages

• Robust Bus Communication: Delivers reliable and high-speed communication over ESB architecture.

• Redundancy Ready: Supports dual-redundant communication for fault-tolerant operation.

• Compact and Modular: Fits seamlessly into existing Yokogawa baseplate configurations without modification.

• Diagnostic Monitoring: Equipped with LEDs for real-time status, easing maintenance and fault detection.

• Highly Compatible: Fully interoperable with Yokogawa’s I/O modules, processors, and FIO platforms.

• Secure Electrical Isolation: Ensures safe operation by isolating I/O and control signals.

• Industrial Durability: Designed to withstand temperature variations, vibration, and EMI interference.

• Easy Installation: Base-mounted design minimizes wiring complexity and setup time.

• Longevity and Support: Backed by Yokogawa’s extended lifecycle management and field service.

• Field Proven: Trusted by process industries globally for over a decade of reliable performance.

Frequently Asked Questions (FAQ)

1. What is the main function of the SEC402 module?

   It acts as a bus coupler, connecting the FCS to Field I/O modules over the ESB backbone.

2. Is the SEC402 compatible with both CENTUM VP and CS 3000 systems?

   Yes, it supports both platforms and integrates seamlessly with Yokogawa’s I/O architecture.

3. Does the module support redundant communication?

   Absolutely. The SEC402 can be used in dual-redundant ESB bus configurations for increased reliability.

4. How is this module powered?

   It receives 24V DC power from the baseplate it’s mounted on.

5. What type of I/O modules can it communicate with?

   It interfaces with various Yokogawa FIO modules such as analog input, digital output, etc.

6. Can it be hot-swapped?

   No, the module should be replaced only during system shutdown or via redundancy failover.

7. Are there any built-in diagnostics?

   Yes, it includes LED indicators for power, communication activity, and error detection.

8. Is there any special cabling required for ESB communication?

   Yes, it requires shielded, twisted-pair ESB communication cables as per Yokogawa standards.

9. What kind of installation environment is required?

   It should be installed inside enclosed control cabinets in industrial environments.

10. How often should the SEC402 be inspected?

    Annual inspections for connection integrity, LED status, and cabinet conditions are recommended.
