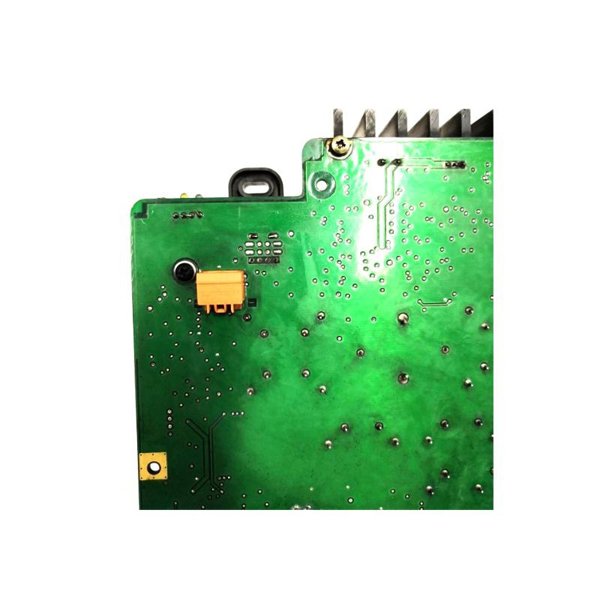

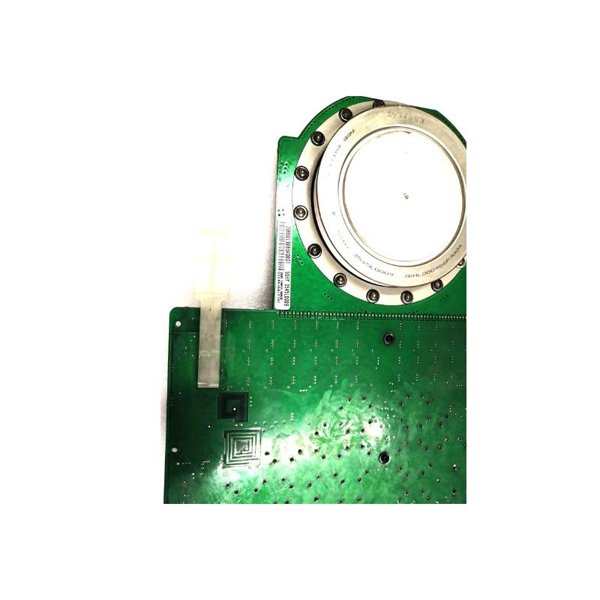

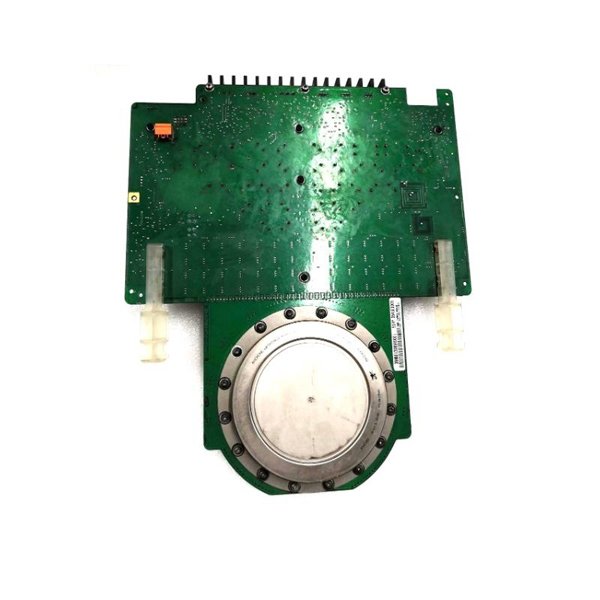

ABB 5SHY3545L0009 3BHB013085R0001 IGCT Module
Manufacturer:ABB
Product Number:5SHY3545L0009 3BHB013085R0001
Product Type:IGCT Module
Origin:Sweden (SE)
Dimensions:150 × 100 × 40 mm
Weight:1.5 kg
Views:45
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB 5SHY3545L0009 IGCT Module is a high-power, high-voltage semiconductor device designed for industrial power electronics. It integrates fast switching capability with high efficiency, making it suitable for modern AC/DC converters, inverters, and rectifiers. Its robust construction ensures reliable operation in demanding industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Type | IGCT (Integrated Gate Commutated Thyristor) |
| Rated Voltage | 4.5 kV AC |
| Rated Current | 125 A |
| Switching Frequency | Up to 1.5 kHz |
| Thermal Resistance (Junction to Case) | 0.40 °C/W |
| Gate Trigger Voltage | 15 V |
| Isolation Voltage | 3,000 V AC |
| On-State Voltage Drop | 2.5 V |
| Off-State Leakage Current | 10 mA |
| Operating Temperature Range | -40°C to +125°C |
| Dimensions | 150 × 100 × 40 mm |
| Weight | 1.5 kg |
Applications
-
High-voltage AC/DC converters
-
Industrial inverters and drives
-
Phase-controlled rectifiers
-
Power exciter control systems
-
Renewable energy systems
Advantages
-
High efficiency with low conduction and switching losses
-
Fast and reliable switching for industrial systems
-
Robust design suitable for harsh environments
-
Wide operating temperature range
-
Flexible cooling options (air or water cooling)
FAQ
-
What is the maximum surge current this IGCT module can withstand?
It can handle peak repetitive surge currents in the kiloampere range depending on cooling.
-
Which cooling methods are recommended?
Forced air or water cooling to maintain junction temperature.
-
How does gate trigger voltage affect module performance?
Proper gate voltage ensures fast turn-on and reduced switching losses.
-
Is the module suitable for both AC and DC applications?
Yes, it can be used in AC rectifiers and DC link circuits with snubber circuits.
-
What is the expected operational lifetime?
Exceeding 100,000 hours when used within rated conditions.
-
How critical is thermal resistance for module performance?
Low thermal resistance reduces junction stress and improves reliability.
-
What protection measures are recommended?
Overvoltage protection, gate snubbers, and thermal monitoring.
-
Are there specific mounting requirements?
Secure mounting with proper insulation and orientation for efficient heat dissipation.
-
Can this module operate in high-frequency switching environments?
Yes, designed for switching frequencies up to 1.5 kHz.
-
What is the typical on-state voltage drop during operation?
Approximately 2.5 V under rated conditions.
