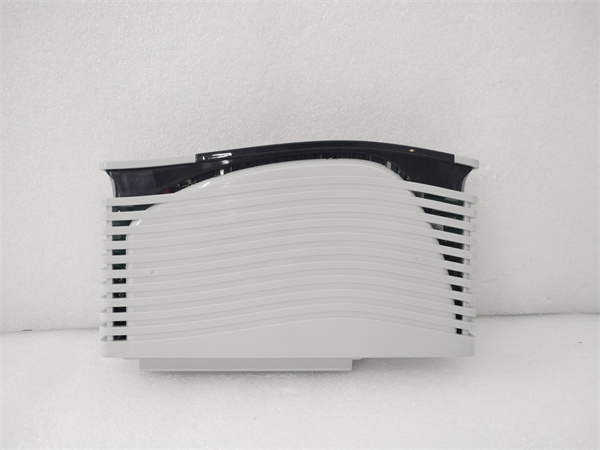

ABB AI02 Product Overview

ABB AI02 is an industrial automation module launched by ABB,usually used for signal acquisition and processing.The following is a detailed introduction to the module.

Product Overview

Model:AI02

Brand:ABB

Type:Analog Input Module

Application areas:industrial automation,process control,power system,manufacturing,etc.

Functional characteristics

Analog signal acquisition

Supports a variety of analog signal inputs(such as voltage,current,thermocouple,RTD,etc.),and can convert the analog signals of field equipment into digital signals for control system processing.

High precision and stability

Adopt high-precision signal conditioning circuits and isolation technology to ensure the accuracy and stability of signal acquisition.

Flexible configuration

Supports a variety of input ranges and signal types,and users can configure according to actual needs.

Easy to integrate

Modular design makes it easy to integrate with other ABB control modules or third-party systems.

Diagnosis and alarm

Provides signal diagnosis and alarm functions to facilitate users to find and handle faults in time.

Technical parameters

Number of input channels:usually 2 or more,please refer to the product manual for details.

Input signal type:supports voltage(such as±10V),current(such as 4-20mA),thermocouple(such as J,K,T type),RTD(such as Pt100),etc.

Resolution:High-resolution ADC to ensure the precision of signal acquisition.

Isolation voltage:High isolation voltage to ensure the safety of signal transmission.

Operating temperature range:Usually-20°C to+70°C,suitable for industrial environment.

Application scenarios

Industrial automation:used to connect sensors,transmitters and other equipment to realize the acquisition and transmission of analog signals.

Process control:in chemical,electric power,metallurgy and other industries,used to monitor process parameters such as temperature,pressure,flow.

Power system:used to collect analog signals such as voltage and current of the power grid to realize power monitoring.

Manufacturing industry:used for equipment status monitoring and control on the production line.
