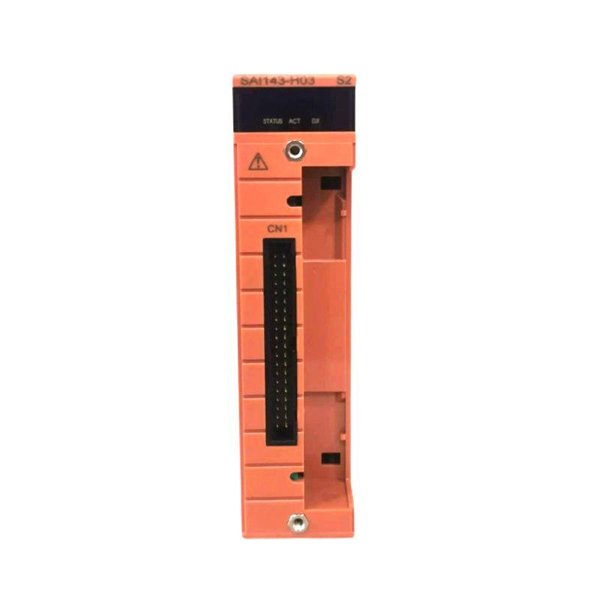

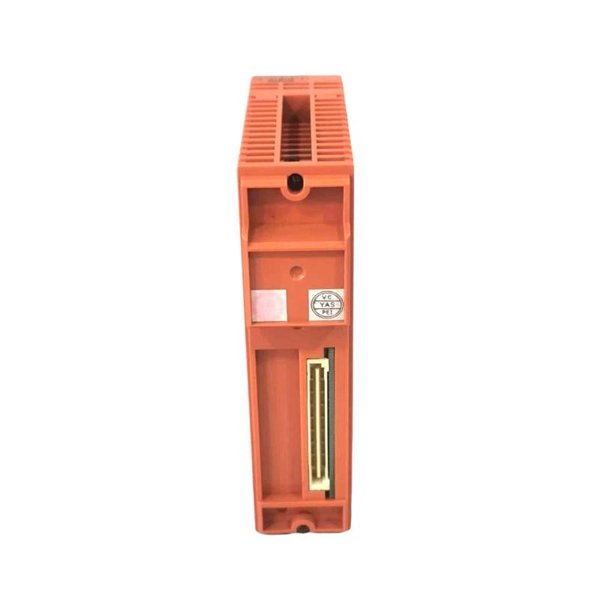

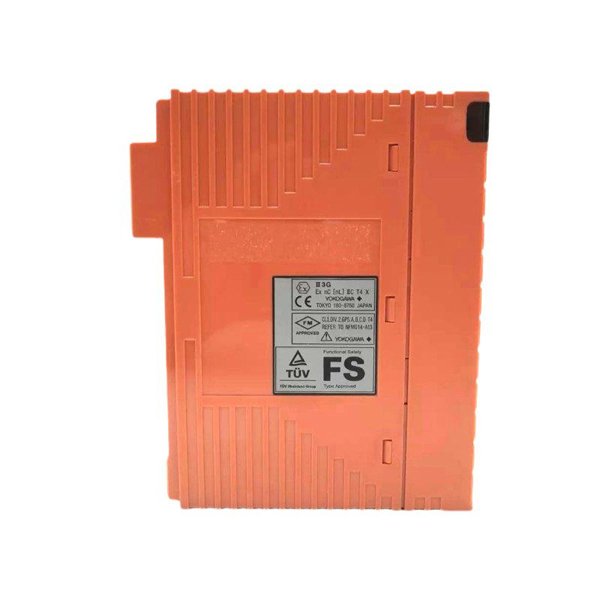

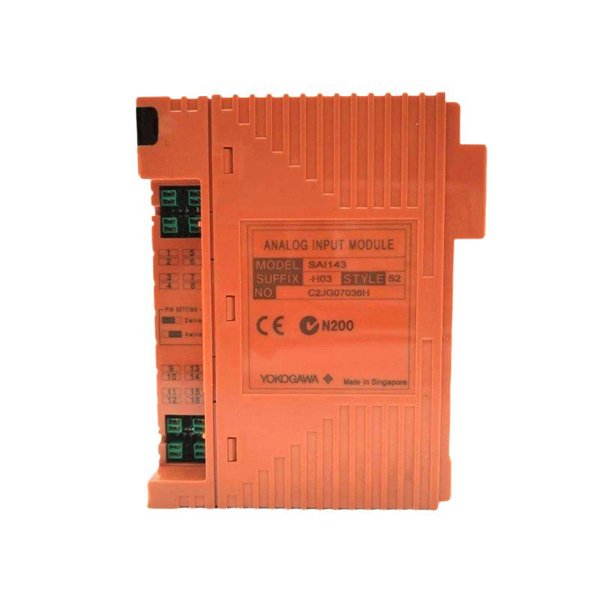

Yokogawa SAI143-H03 Analog Input Module

The Yokogawa SAI143-H03 is a 16-channel analog input module engineered for use within the ProSafe-RS safety control system. Specially designed to accept 4 to 20 mA current inputs from field instrumentation, it integrates HART communication, enabling simultaneous process signal acquisition and device diagnostics. The module is robustly isolated and ideal for high-reliability and safety-critical applications in process automation environments like oil & gas, power generation, and chemical plants.

Technical Specifications

Applications

• Industrial process control in oil & gas, petrochemical, and chemical industries

• Safety instrumentation systems within emergency shutdown applications

• Power generation plants (thermal, nuclear, hydro)

• High-availability input collection for DCS and SIS environments

• Monitoring and diagnostic communication with HART-enabled transmitters

Key Advantages

• High Accuracy: Maintains tight measurement tolerances even in the low current range down to 0.05 mA

• Full HART Compatibility: Supports device diagnostics and configuration through PRM integration

• Isolation & Safety: 1.5 kV isolation between system and input channels ensures operational safety

• Dual-Redundancy Capable: Enhances system availability by allowing redundant configurations

• Fast Response: 40 ms update time ensures real-time process visibility

• Flexible Wiring Options: Compatible with both 2-wire and 4-wire transmitter configurations

• Compact Form Factor: Space-efficient installation in control cabinets

• Surge Protection & False Insertion Options: Configurable for enhanced safety and field robustness

Frequently Asked Questions (FAQ)

Q1: What signal types does the SAI143-H03 accept?

A1: It accepts analog current inputs ranging from 4 to 20 mA, with an extended permissible range of 0 to 25 mA.

Q2: Can this module be used in hazardous environments?

A2: Yes, explosion-protected versions are available via specific suffix codes (e.g., “E” or “F”).

Q3: Does it support HART communication?

A3: Yes, the H03 variant integrates HART communication compliant with HART Protocol Revision 5.7.

Q4: How many HART devices can be connected to the module?

A4: One HART device can be connected per input channel, but communication occurs with one device at a time due to a single modem.

Q5: What is the input update rate?

A5: The data update frequency is 40 milliseconds.

Q6: Is the module isolated?

A6: Yes, the entire module is galvanically isolated from the system and other channels.

Q7: What are the installation options for the terminal connections?

A7: It supports pressure clamp terminals, MIL cable, or dedicated signal cables, with various suffix and option codes.

Q8: What is the operating temperature range?

A8: When equipped with the appropriate suffix (e.g., “3” or “C”), the module supports operation from -20°C to +70°C.

Q9: Can I use it in a dual-redundant configuration?

A9: Yes, dual redundancy is supported for enhanced reliability.

Q10: What kind of diagnostic capabilities does HART communication enable?

A10: It enables device-level diagnostics, configuration, and partial stroke testing (when applicable), viewable via Yokogawa’s PRM system.
