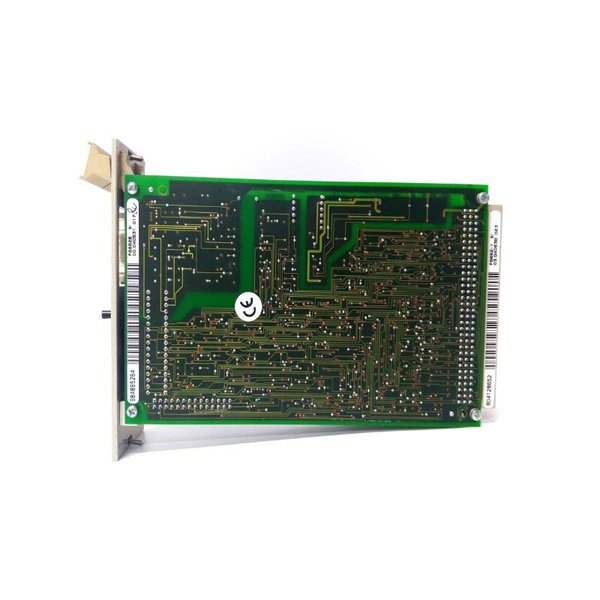

Hima F1202 Safety Relay Module

The HIMA F1202 is a high-performance safety-related module designed for use in industrial automation and control systems. It is part of HIMA’s comprehensive safety product line, providing reliable and secure communication for critical applications. This module ensures robust operation in hazardous environments, making it an ideal choice for industries such as oil and gas, chemical processing, and power generation.

Built with high safety standards, the F1202 meets international certifications for functional safety and ensures compliance with stringent industry regulations. It supports advanced diagnostics and offers easy integration with existing systems, reducing downtime and enhancing operational efficiency.

Technical Specifications

Applications

The HIMA F1202 is widely used in various industrial applications where safety and reliability are critical:

• Oil & Gas – Ensures safe operation in offshore and onshore facilities, pipelines, and refineries.
• Chemical Processing – Provides safety monitoring and control for hazardous chemical plants.
• Power Generation – Used in nuclear, thermal, and renewable energy power plants for safety automation.
• Railway Systems – Integrated into signaling and train control systems to ensure safe rail operations.
• Manufacturing Automation – Supports machine safety and process control in industrial automation.
• Pharmaceuticals – Ensures compliance with safety regulations in pharmaceutical production lines.

Advantages

The HIMA F1202 offers several key advantages:

• High Safety Standards – Certified for SIL 3 applications, ensuring compliance with global safety regulations.
• Reliable Performance – Designed for harsh industrial environments with high durability.
• Flexible Communication – Supports multiple industrial communication protocols, allowing seamless integration.
• Fast Response Time – Low latency for real-time monitoring and control.
• Compact & Lightweight – Space-saving design with easy DIN rail mounting.
• Advanced Diagnostics – Integrated diagnostic functions for early fault detection and maintenance planning.
• Energy Efficient – Low power consumption enhances overall system efficiency.
• Scalability – Easily expandable with other HIMA safety modules for large-scale applications.

Frequently Asked Questions (FAQ)

1. What is the primary function of the HIMA F1202?

   The HIMA F1202 is a safety-related communication module designed for critical industrial automation and control applications.

2. Which industries use the HIMA F1202?

   It is widely used in oil & gas, chemical processing, power generation, railway systems, and manufacturing automation.

3. What communication protocols does the F1202 support?

   It supports SafetyNet, PROFIBUS, and other fieldbus communication standards.

4. What is the SIL rating of the HIMA F1202?

   The module is certified for SIL 3 according to IEC 61508.

5. Can the F1202 be used in hazardous environments?

   Yes, it is ATEX certified and suitable for hazardous industrial environments.

6. What are the power requirements for the F1202?

   It operates on 24V DC nominal power supply with a typical consumption of 250 mA.

7. What is the response time of the module?

   The response time is less than 10 milliseconds, ensuring real-time safety monitoring.

8. How is the F1202 installed?

   It is designed for DIN rail mounting, allowing easy installation in industrial panels.

9. What is the temperature range for operating the F1202?

   The module operates between -25°C and +70°C with a storage temperature range of -40°C to +85°C.

10. Is the F1202 compatible with other HIMA safety modules?

    Yes, it is fully compatible with other HIMA safety controllers and modules for scalable safety solutions.
