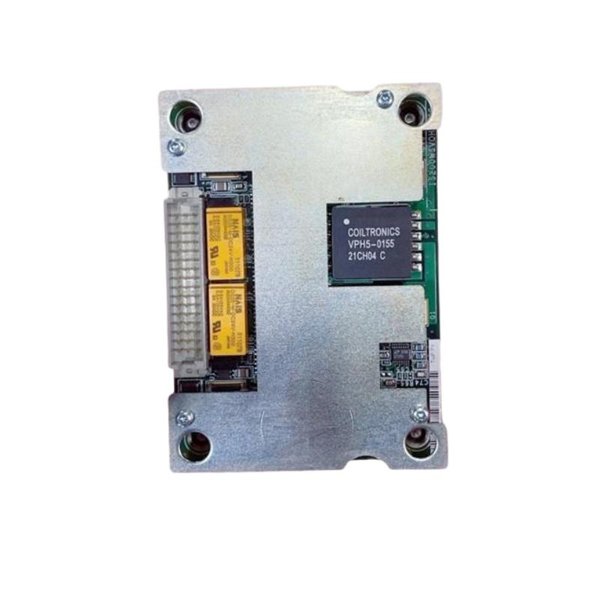

General Electric IS210WSVOH1A WSVO Heatsink Assembly

The GE IS210WSVOH1A WSVO Heatsink Assembly is a crucial thermal management component for GE’s WSVO-class power and control modules. It is designed to efficiently dissipate heat from high-power electronics, preventing thermal stress that could lead to component failure. By ensuring stable operating temperatures, this assembly helps to prolong the service life of critical electronic equipment in power plants and industrial control systems. The assembly is optimized for ease of installation and is commonly used in turbine control systems, generator setups, and other high-power applications that demand robust thermal solutions.

Technical Specifications

Applications

The IS210WSVOH1A WSVO Heatsink Assembly is primarily used for thermal management in various industrial environments, including:

• Power Generation: Cooling of GE WSVO power control modules within turbine or generator systems.

• Industrial Automation: Helps manage thermal loads from high-power control systems in industrial machinery.

• Retrofits and Upgrades: Ideal for retrofitting existing cabinets or control systems to improve thermal dissipation.

• OEM Equipment: Suitable for OEM equipment requiring a pre-qualified thermal solution for WSVO modules.

• Data Centers: Can be integrated into racks housing high-performance electronics for effective cooling.

The assembly ensures that sensitive components remain within safe temperature ranges for enhanced reliability and performance.

Advantages

• Effective Heat Dissipation: The extruded aluminum design efficiently dissipates heat away from high-power control modules, preventing overheating.

• Compact Yet Powerful: Optimized for performance within a small form factor, reducing the need for large, bulky thermal management solutions.

• Durable Construction: Made of anodized aluminum, this heatsink assembly offers superior corrosion resistance, ensuring long-term reliability in harsh environments.

• Easy Installation: Features captive fasteners and mounting mechanisms that make the installation process quick and hassle-free.

• Customizable for High Loads: Although it operates on passive convection, the heatsink assembly can accommodate additional cooling options such as fans for higher thermal loads.

• Versatile Use: Compatible with a range of WSVO modules and easily integrates into both new and existing installations.

• Protects Electronics: Prevents damage from thermal cycling and high operating temperatures, increasing the overall lifetime of the equipment.

• Enhanced System Reliability: Improves the Mean Time Between Failures (MTBF) of sensitive components by maintaining stable temperatures.

• Cost-Efficient Solution: Extends the life of power modules, saving on maintenance and replacement costs.

• Environmentally Friendly: Manufactured with materials that comply with environmental standards, including RoHS.

FAQ

Q1: What is the purpose of the GE IS210WSVOH1A?

A1: The GE IS210WSVOH1A is designed to dissipate heat from WSVO-class power modules, ensuring safe operating temperatures and prolonging the life of critical electronics.

Q2: Can this heatsink be used with other GE modules?

A2: The IS210WSVOH1A is specifically designed for WSVO modules, but similar heatsink models may exist for other GE products. Check with customer service for compatibility.

Q3: How is the IS210WSVOH1A mounted?

A3: It is mounted via panel or chassis with captive fasteners, making installation straightforward and secure.

Q4: What cooling methods are supported?

A4: The IS210WSVOH1A primarily uses passive convection cooling. However, it can support forced air cooling if additional fan kits are installed.

Q5: Does the heatsink include thermal interface material?

A5: Yes, the IS210WSVOH1A comes with integrated thermal pads. However, thermal paste can be applied for higher-performance needs.

Q6: Is the IS210WSVOH1A suitable for high-heat environments?

A6: Yes, it can operate in environments with temperatures ranging from –20 °C to +70 °C, making it suitable for most industrial conditions.

Q7: How do I ensure compatibility with my cabinet?

A7: Provide your cabinet layout and thermal load details to customer service. We will help ensure that the heatsink assembly fits and performs as needed.

Q8: Can the heatsink be retrofitted to older systems?

A8: Yes, it is designed for retrofitting and works well with existing systems, provided there is adequate space and airflow for passive cooling.

Q9: What type of maintenance is required for the IS210WSVOH1A?

A9: Periodic cleaning of the fins and inspection for dust accumulation or airflow blockages is recommended, especially when using forced-air cooling.

Q10: How can I enhance the cooling performance of this heatsink?

A10: To improve cooling, ensure proper cabinet ventilation or consider adding a fan kit for higher thermal dissipation requirements.
