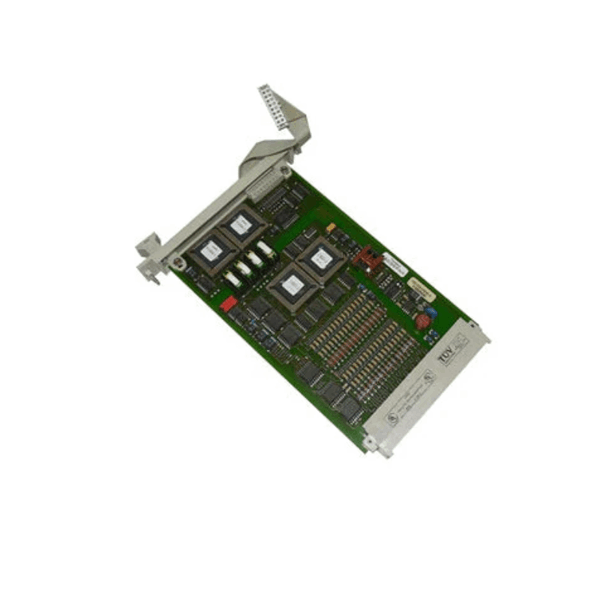

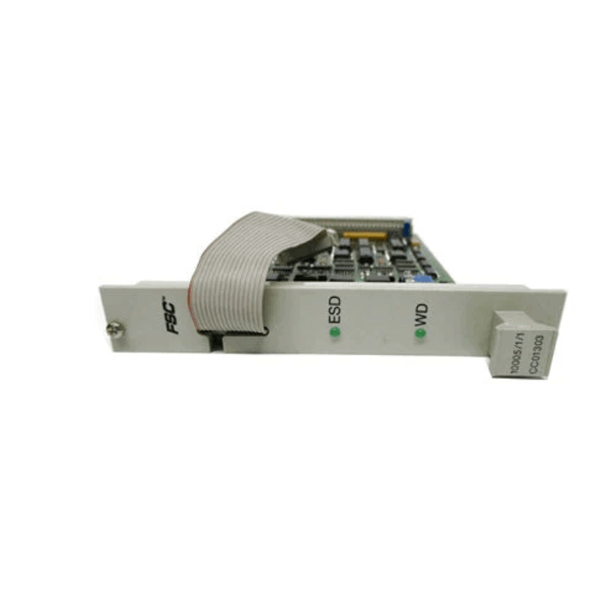

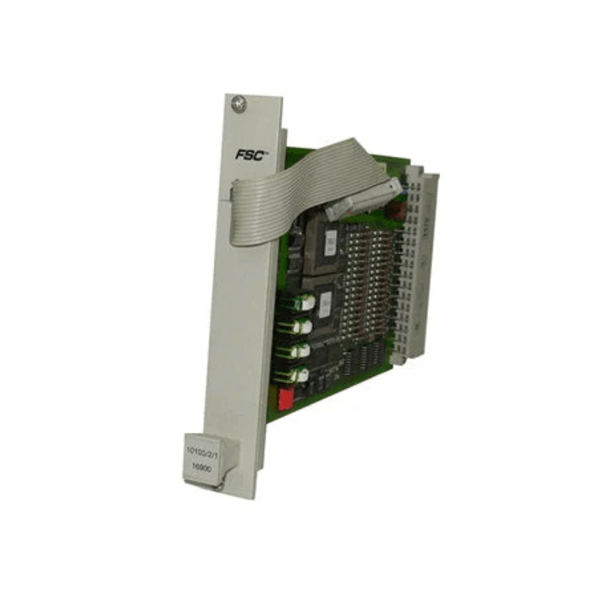

Honeywell FS-IOBUS-CPX12 IO bus of the controller

The Honeywell FS-IOBUS-CPX12 is a high-performance I/O module designed for industrial control systems. It is part of the Honeywell Fieldbus I/O system, providing reliable and efficient communication between devices in process automation applications. This module plays a critical role in ensuring seamless data transfer between control systems and field instruments, improving process accuracy and operational efficiency.

The FS-IOBUS-CPX12 is specifically designed for environments where high durability and robust performance are required. It supports a wide range of process automation needs, providing enhanced connectivity and real-time data exchange. This device offers advanced diagnostic capabilities, ensuring early detection of faults, thus reducing downtime.

Product Parameters

Below are the key technical specifications for the Honeywell FS-IOBUS-CPX12:

Applications

The Honeywell FS-IOBUS-CPX12 is ideal for a wide range of industrial and process automation applications, including:

• Oil and Gas: For monitoring and controlling sensors and actuators in upstream and downstream facilities.

• Chemical and Petrochemical: For integration with a variety of field instruments to monitor and control the chemical process flow.

• Power Generation: As part of the control system in power plants, enabling real-time communication with field devices.

• Water and Wastewater Treatment: For managing sensors, pumps, and actuators in treatment plants.

• Manufacturing: In industries like food & beverage, pharmaceuticals, and automotive, where precise control and monitoring of the process are required.

Product Advantages

1. High Reliability: The FS-IOBUS-CPX12 is built to withstand harsh industrial environments, ensuring reliable performance even in extreme conditions.

2. Advanced Diagnostics: Equipped with built-in diagnostic features, it allows for early detection of problems, preventing unplanned downtime.

3. Seamless Integration: Supports various communication protocols, ensuring compatibility with existing fieldbus systems.

4. Modular Design: Its modular architecture allows for easy expansion of the I/O network, giving flexibility to adapt to changing requirements.

5. Real-time Data Exchange: Offers fast and accurate data transfer between control systems and field devices.

6. Energy Efficient: Designed to reduce power consumption while maintaining performance.

7. Easy Installation: Can be mounted on a DIN rail, simplifying installation and maintenance.

FAQ

1. Q: What is the maximum number of I/O channels supported by the FS-IOBUS-CPX12?

   A: The FS-IOBUS-CPX12 supports up to 12 I/O channels, providing a flexible solution for process monitoring and control.

2. Q: What communication protocols does the FS-IOBUS-CPX12 support?

   A: The FS-IOBUS-CPX12 supports several industry-standard protocols, including Profibus and HART, ensuring compatibility with a wide range of field instruments.

3. Q: Is the FS-IOBUS-CPX12 suitable for outdoor installation?

   A: The FS-IOBUS-CPX12 is designed for industrial environments and can operate in temperatures ranging from -40°C to +70°C. However, outdoor installations may require additional protection from environmental elements.

4. Q: Can the FS-IOBUS-CPX12 be used in hazardous environments?

   A: While the FS-IOBUS-CPX12 is designed for harsh industrial conditions, it is essential to check specific environmental safety certifications for hazardous environments before installation.

5. Q: How is the FS-IOBUS-CPX12 powered?

   A: The FS-IOBUS-CPX12 operates on a 24V DC power supply, making it suitable for integration into most industrial control systems.

6. Q: What mounting options are available for the FS-IOBUS-CPX12?

   A: The FS-IOBUS-CPX12 can be easily mounted on a DIN rail, ensuring straightforward installation and maintenance.

7. Q: Does the FS-IOBUS-CPX12 have any diagnostic features?

   A: Yes, the FS-IOBUS-CPX12 comes with built-in diagnostic capabilities, allowing for real-time monitoring and early fault detection.

8. Q: What is the weight of the FS-IOBUS-CPX12 module?

   A: The FS-IOBUS-CPX12 weighs 0.23 kg, making it lightweight and easy to handle during installation.

9. Q: What is the range of temperatures in which the FS-IOBUS-CPX12 can operate?

   A: The FS-IOBUS-CPX12 can operate in temperatures ranging from -40°C to +70°C, ensuring reliable performance in various industrial conditions.

10. Q: Is the FS-IOBUS-CPX12 UL certified?

    A: Yes, the FS-IOBUS-CPX12 is UL certified, ensuring compliance with safety and quality standards.
