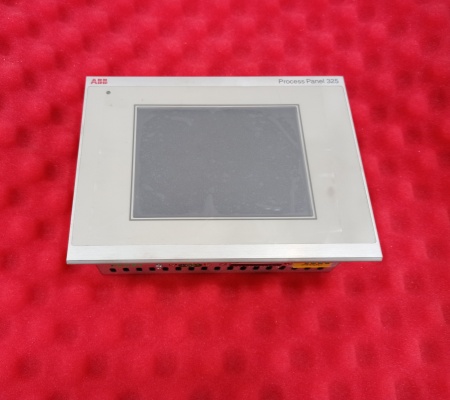

ABB PP325 3BSC690101R2 Process Panel

The ABB PP325 3BSC690101R2 is part of ABB Process Panel series, which is designed for use in industrial automation and process control applications. These panels are primarily used for monitoring and controlling processes, machines, and systems in various industrial settings. The PP325 model is typically used in scenarios requiring visualization of process data and integration with other control devices.

The ABB PP325 offers an intuitive touch interface that allows operators to easily monitor and control processes. Users can design a custom layout for their control screens, including buttons, indicators, charts, alarms, and more. The panel is able to display real-time process data and control parameters from connected devices.

The panel supports alarm management, and users can configure alarms for process variables that exceed defined thresholds. Alarms can be visual and audible to alert operators. The system can also log alarm events for later analysis or troubleshooting. It operates on a 24V DC power supply,

The ABB PP325 can be configured and programmed using ABB Automation Builder or other compatible HMI/SCADA development software.

Frequently asked questions about the product are as follows:

-What type of display does the ABB PP325 have?

It has a graphical touchscreen display that provides high resolution and clarity, ensuring easy interaction. It can display data, process variables, alarms, control elements, and graphical representations of the process.

-How do I program the ABB PP325?

It is programmed using ABB Automation Builder software. It is possible to create custom screen layouts, set process control logic, configure alarms, and define communication settings to integrate the panel with the automation system.

-How do I set alarms on the ABB PP325?

Alarms on the ABB PP325 can be set through the programming software by defining thresholds for process parameters. When a process variable exceeds a threshold, the system triggers a visual or audible alarm.
