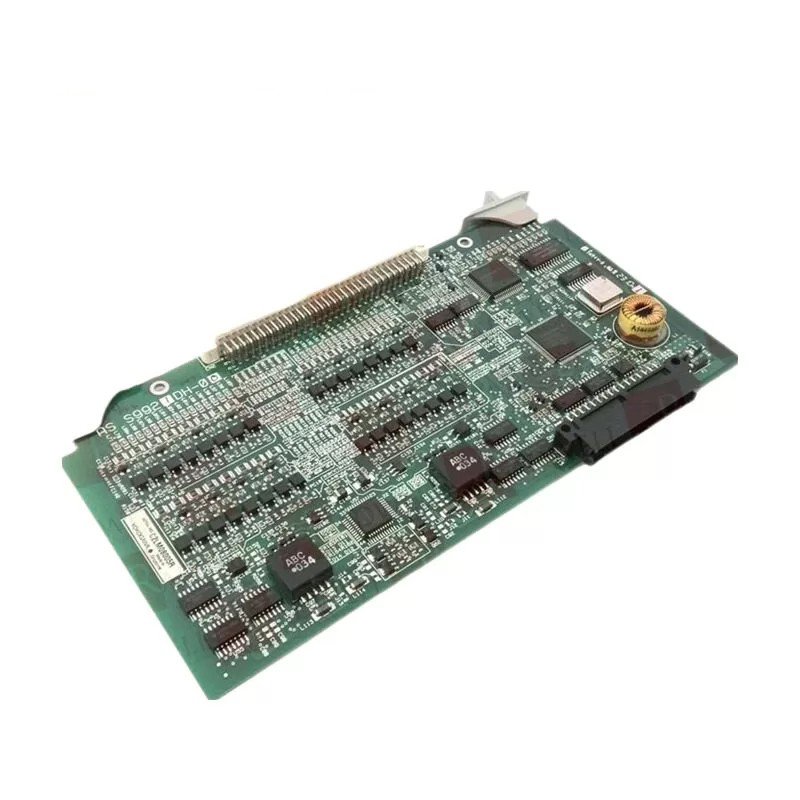

The Yokogawa ADM12 is a versatile I/O module for industrial automation applications. It interfaces seamlessly with Yokogawa’s control systems to ensure reliable and efficient communication between the control system and various field devices.

Key Features

Contact Input

The ADM12 primarily handles contact input, receiving signals from sensors and switches. These signals trigger control actions or provide status updates to the control system.

Modularity

The ADM12 integrates into modular I/O systems, allowing users to customize configurations for specific applications. This flexibility enables integration with various sensors and actuators.

Reliability

Designed for harsh environments, the ADM12 withstands vibration, shock, and temperature extremes. It offers high reliability and long-term performance.

Compatibility

The ADM12 works with Yokogawa’s CENTUM and CS3000 control systems, as well as other compatible platforms.

Ease of Use

The module installs and configures easily, reducing downtime and maintenance costs.

Technical Specifications (Typical)

Number of Channels

The number of channels varies by model, typically ranging from 8 to 32.

Input Type

Contact input (normally open or normally closed)

Voltage

24 VDC

Response Time

Fast response time ensures timely detection of input changes.

Isolation

Electrical isolation between channels and the system prevents interference.

Mounting

Supports DIN rail or panel mounting.

Environmental Conditions

Operates within specified temperature, humidity, and vibration limits.

Applications

Process Control

Monitor and control process variables like temperature, pressure, and flow rate.

Machine Automation

Control machine and equipment operations effectively.

Safety Systems

Implement safety interlocks and emergency stop functions.

Building Automation

Monitor and control environmental conditions in buildings efficiently
