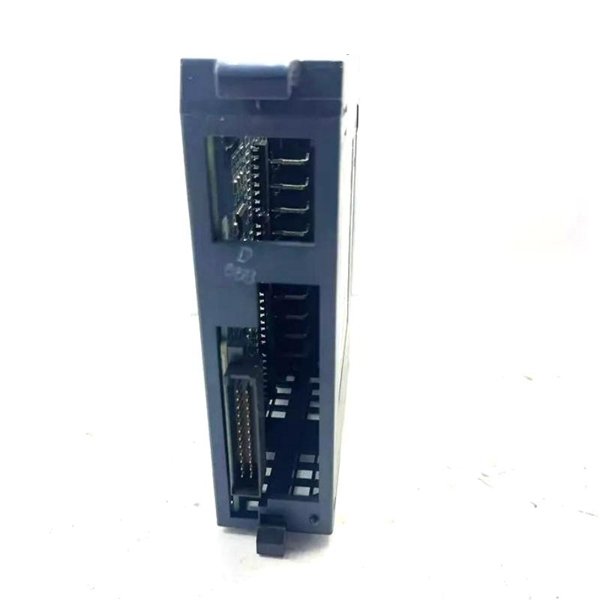

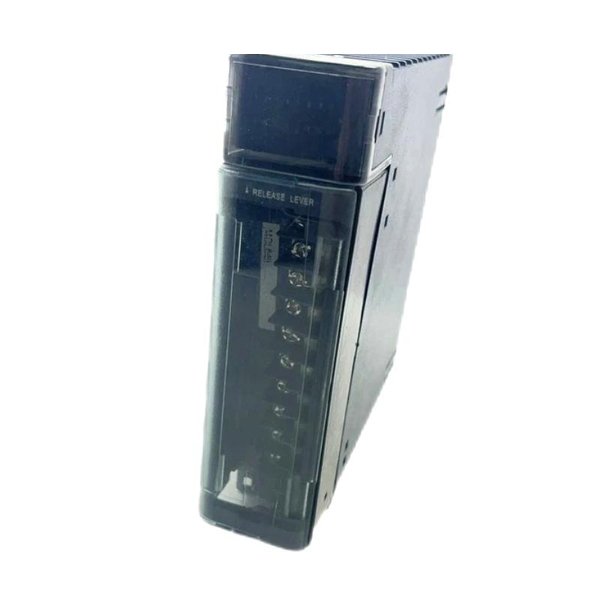

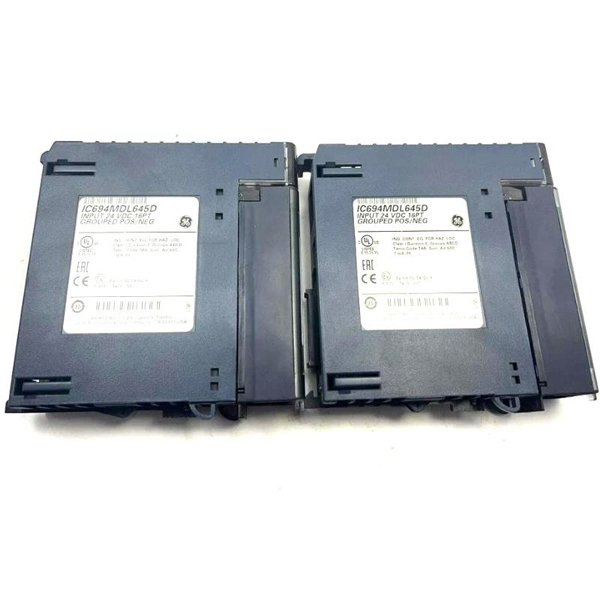

General Electric IC694MDL645D RX3i Input Module

The GE IC694MDL645D is a high-quality digital input module designed to work seamlessly with the GE Series 90-30 programmable logic controller (PLC) systems. It provides reliable and accurate signal processing for various industrial applications, offering a simple yet powerful way to integrate digital inputs into your system. The module is engineered to handle high-speed signals and is capable of interfacing with a wide variety of sensors and other field devices, making it a versatile solution for a wide range of control systems.

Product Specifications

Product Applications

The GE IC694MDL645D module is ideal for a wide range of industrial applications, including:

• Manufacturing Automation: To integrate and manage digital inputs from various field devices like sensors, limit switches, and push buttons.

• Control Systems: Used in PLCs to gather data from sensors, actuators, and control devices.

• Machine Control: Effective for controlling complex machines that require high-speed digital input processing.

• Process Automation: Suitable for use in applications such as chemical processing, food & beverage production, and packaging.

• Robotics: Used in robotic systems where precise input control is essential.

Advantages

• High-Speed Processing: The IC694MDL645D ensures quick and reliable processing of high-speed digital signals.

• Broad Compatibility: Compatible with all GE Series 90-30 PLC systems, offering flexibility in various system setups.

• Reliability: Designed for high durability and long service life, even in demanding environments.

• Compact Design: Its small footprint makes it easy to integrate into existing control panels without occupying too much space.

• Easy Installation: Simple to install and configure, reducing setup time and operational delays.

FAQs

1. What is the input voltage range for the GE IC694MDL645D?

The input voltage range for the GE IC694MDL645D is between 10V and 30V DC for the digital inputs.

2. Can the IC694MDL645D module be used in extreme environmental conditions?

Yes, the IC694MDL645D can operate in environments with temperatures ranging from 0°C to 60°C, and with humidity levels between 5% and 95% (non-condensing).

3. Is the IC694MDL645D compatible with other GE PLC models?

The IC694MDL645D is specifically designed for use with GE Series 90-30 PLCs but may also be compatible with some other GE PLC systems with the right configuration.

4. How many inputs does the IC694MDL645D support?

This module supports up to 16 digital inputs.

5. Does the IC694MDL645D module require special tools for installation?

No, the module can be installed easily with standard tools. It mounts directly onto the Series 90-30 rack without requiring additional hardware.

6. What is the typical current draw for each input on the IC694MDL645D?

The typical current draw for each input is approximately 5mA.

7. Can I use the IC694MDL645D in hazardous environments?

The module is designed for general industrial use and should not be used in hazardous or explosive environments without proper protection and certification.

8. How does the IC694MDL645D handle noise in the signals?

The IC694MDL645D is designed to filter and handle noisy digital signals, ensuring accurate and reliable input reading even in electrically noisy environments.

9. Is there a maximum input frequency for the digital inputs?

The module is capable of handling digital inputs at a high frequency, typically in the range of 5kHz, depending on the application and configuration.

10. How does the IC694MDL645D compare to similar modules from other brands?

Compared to other brands, the IC694MDL645D offers superior compatibility with GE PLC systems, high reliability, and ease of installation at a competitive price.
