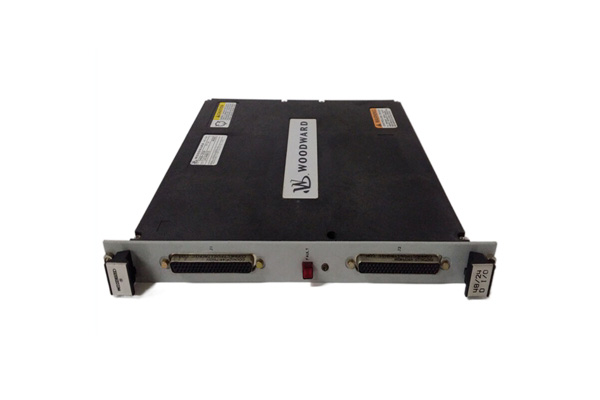

Woodward 5466-258 Discrete Input/Output Unit

WOODWARD 5466-258 is a product from Woodward Corporation, with multiple functions and features. The following is detailed information about the product:

Product Description

Type: The Woodward 5466-258 module is a simplex discrete input/output unit belonging to the MicroNet digital control series and can be used with Vertex Pro chassis.

Usage: This module can be used in simplex and redundant systems, suitable for any chassis module, including eight slot and fourteen slot chassis.

Specification parameters

Power input: The external input voltage is 18 to 32 volts DC.

Required power: At 24 volts DC, the required power is 6.5 watts.

Repair time: Repair usually takes 3-7 days.

Installation: The input module needs to be connected to an appropriate network and a 24 volt DC power supply, and installed on a DIN rail.

Functional features

Reconfigurability: The system allows for real-time replacement of faulty nodes, and the network cable connections must remain intact during node replacement.

Compatibility: Can be used with various other Woodward products (such as 5466-316, 5466-409, etc.) and related models.

Safety: Equipped with short-circuit and overload protection, thermal protection, and I2C monitoring functions.

Environmental adaptability: It has a wide range of working temperatures (-40 to 100 degrees Celsius) and can be used in harsh environments. It has a waterproof shell with an IP65 rating.
