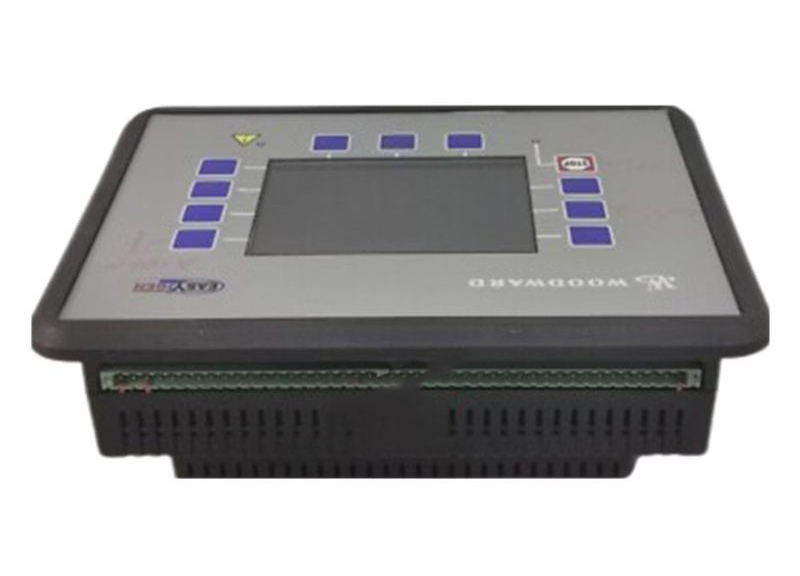

Woodward 8440-1843 Genset Controller

The Woodward 8440-1843 is a genset controller from the easYgen-3000 Series. It manages and monitors generator sets in industrial environments. It protects gensets while ensuring stable and efficient power delivery. The controller supports single and multiple genset operations for flexible power management.

Technical Specifications

Manufacturer: Woodward

Series: easYgen-3000 (Package P2)

Function: Genset control system

Communication Interfaces:

• RS-232 and RS-422 serial ports
• Modbus® protocol support
• Redundant Ethernet communication

Control Features:

• Auto-matching frequency, phase, and voltage
• Soft load transfer and idle-to-rated switching
• Load rejection and load pulse capabilities

Protection Features:

• Overload protection
• Torque limiter
• Integrated manifold pressure limiter

Mechanical Specifications:

• Front Panel Dimensions: 282W × 216H × 96D mm
• Unit Dimensions: 19.4 × 6.5 × 14.5 cm
• Weight: 0.66 kg
• Front Sealing: IP with screw fastening
• Protection Rating: IP20

Other:

• Electrically isolated relay outputs
• Setting range: 1 – 32,000 A
• Accuracy Class: 0.5
