Manufacturer:Woodward
Product Number:8440-1884
Product Type:Genset Controller
Origin:USA
Dimensions:200 x 150 x 75 mm
Weight:1.2 kg
Views:42
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24

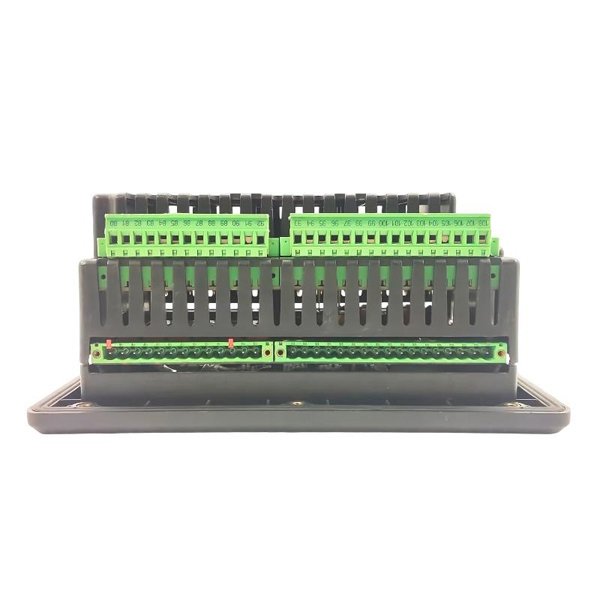

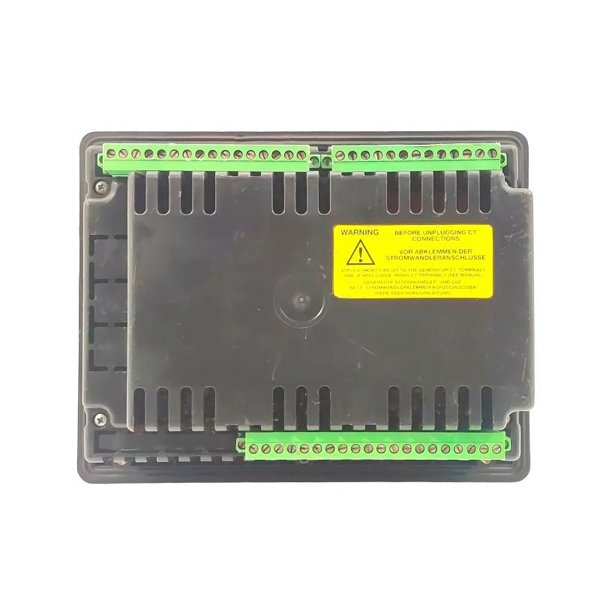

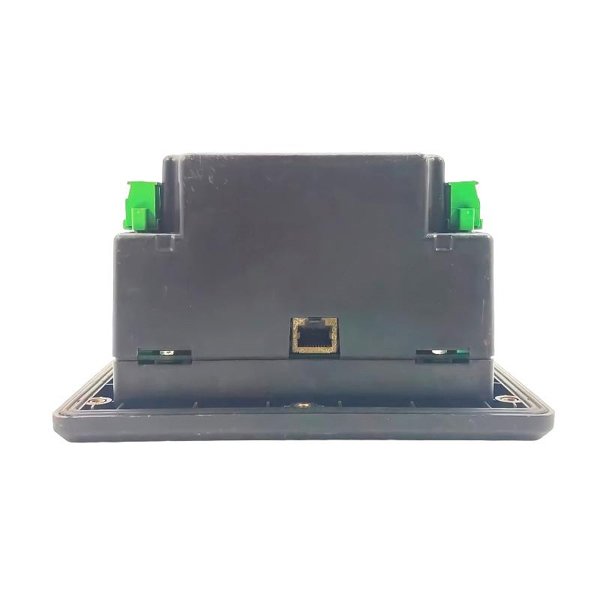

The Woodward 8440-1884 is a high-performance Genset Controller from the acclaimed easYgen® 3000XT series, designed for advanced generator set (genset) management in both isolated and grid-connected applications. This controller delivers integrated functionality, including engine monitoring, protection, synchronization, load sharing, and data communication—all within a compact, reliable unit.
Equipped with robust control logic, flexible I/O configuration, and comprehensive communication protocols, the 8440-1884 enables intelligent genset automation, especially in multi-set or hybrid installations. It is suitable for industrial, commercial, marine, and critical backup power applications, offering consistent performance even in harsh environments.
Built by Woodward, a global leader in power management and control systems, the 8440-1884 combines German engineering precision with global utility standards, making it a trusted choice for system integrators, OEMs, and plant operators.
| Parameter | Specification |
|---|---|
| Model | Woodward 8440-1884 |
| Controller Series | easYgen-3000XT Series |
| Supply Voltage | 8 to 40 VDC |
| Power Consumption | < 10 W |
| Frequency Range | 50/60 Hz (Auto-detect or configurable) |
| Phases Monitored | 3-phase (true RMS measurement) |
| Digital Inputs | 16 configurable |
| Digital Outputs | 11 (6 relay, 5 open collector) |
| Analog Inputs | 4 (0–10 V / 4–20 mA configurable) |
| Analog Outputs | 4 (0–10 V / 4–20 mA) |
| Display | Graphical LCD, multi-language, sunlight-readable |
| Communication Ports | RS-485, CAN, Ethernet, USB |
| Supported Protocols | Modbus RTU/TCP, SNMP, CANopen, J1939, DNP3, IEC61850 |
| Data Logging | Yes, with internal memory |
| Real-Time Clock | Integrated with battery backup |
| Operating Temperature | –25 °C to +70 °C |
| Humidity Tolerance | 5% to 95% RH, non-condensing |
| Protection Rating | IP65 (front), IP20 (rear) |
| Mounting | Panel-mounted |
| Dimensions (W × H × D) | 200 x 150 x 75 mm |
| Weight | 1.2 kg |
| Certifications | CE, UL, cUL, EAC, RoHS, Marine-certified (ABS, DNV, etc.) |
The Woodward 8440-1884 is engineered for high-end genset control applications, offering advanced automation and connectivity features that suit a wide range of industries and environments:
Industrial Power Generation
Fully autonomous generator control in factories, manufacturing plants, and mining operations.
Data Centers & IT Facilities
Ensures seamless backup power management, auto-start, and transfer during grid failure.
Marine Power Systems
Marine-certified for use in onboard power generation and engine rooms.
Renewable & Hybrid Installations
Integrates with battery, wind, or solar systems in hybrid energy frameworks.
Grid-Tied Systems
Synchronization and export power control for parallel operation with the utility grid.
Rental & Mobile Gensets
Rugged design supports frequent relocation and operation in changing environments.
All-in-One Functionality
Combines engine monitoring, generator protection, synchronization, and load sharing in one unit.
Extensive I/O Capability
Easily handles multiple alarms, sensors, actuators, and breaker operations.
Scalable Paralleling
Supports up to 32 gensets operating in synchronization with load-dependent start/stop logic.
Multi-Protocol Communication
Integrates seamlessly with SCADA, PLC, and cloud systems through multiple industrial protocols.
Event & Data Logging
Tracks and records operational parameters, alarms, and controller actions for compliance and diagnostics.
Custom Logic Programming
Configure with Woodward’s ToolKit software to match unique application needs.
Marine-Ready Design
Certified for use in shipboard and offshore power applications with vibration and moisture resistance.
What sets the 8440-1884 apart from other genset controllers?
It offers extended I/O, full grid paralleling, hybrid system support, and multi-protocol communication in a single unit.
Can this controller synchronize multiple generators?
Yes, it supports synchronization of up to 32 generators in complex power systems.
Does it support engine CAN protocols like J1939?
Absolutely. It natively supports J1939, CANopen, and other engine interface standards.
Can it monitor fuel levels and oil pressure?
Yes, via analog inputs, it can read and monitor sensors for fuel, oil, temperature, and more.
Is it suitable for marine environments?
Yes, it is certified by DNV, ABS, and other marine classification societies.
Can I connect this controller to a SCADA system?
Yes, through Modbus TCP/RTU, IEC61850, and SNMP, it can be connected to SCADA/EMS systems.
Is remote start and monitoring possible?
Yes, through Ethernet or GSM routers, remote monitoring, and control are fully supported.
How is programming done?
Using Woodward’s ToolKit software, which supports logic editing, simulation, and parameter management.
Does it provide breaker control and synchronization logic?
Yes, it includes built-in synchronizer logic and automatic breaker sequencing.
What are the display options and user interface like?
It features a high-contrast graphical LCD with soft keys, LEDs, and multilingual menus.
