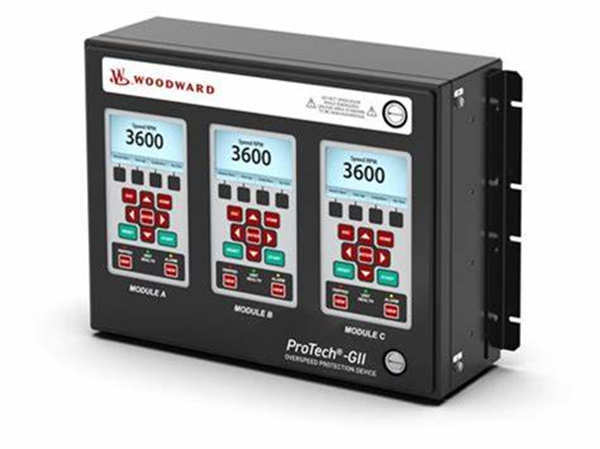

Woodward 8237-1597 OverSpeed Protection Controller

The Woodward 8237-1597 is a high-performance overspeed protection controller designed to ensure the safe shutdown of steam turbines, gas turbines, hydro turbines, and other rotating machinery in the event of unsafe acceleration or over-speed conditions. As part of the ProTech-GII series, this device builds upon the legacy of its predecessor, the ProTech 203, by integrating advanced safety features and robust design principles.

Key Features and Technical Specifications

1. Triple Modular Redundancy (TMR) Architecture

   The 8237-1597 employs a TMR design with a 2-out-of-3 voting logic system, ensuring maximum reliability and fault tolerance. This architecture minimizes the risk of single-point failures and provides accurate detection of unsafe conditions.

2. MPU and Acceleration Detection

   Equipped with Magnetic Pickup (MPU) sensors, the controller monitors turbine rotor speed and acceleration in real-time. Optional acceleration detection capabilities allow it to respond to rapid speed increases, providing an additional layer of protection.

3. IEC 61508 SIL-3 Certification

   The 8237-1597 complies with IEC 61508 SIL-3 safety standards, making it suitable for critical applications where high safety integrity levels are required. It also adheres to API 670 and API 612 specifications for mechanical protection systems.

4. Sulfur-Resistant Conformal Coating

   The device is coated with a specialized conformal coating that provides long-term protection against H₂S and SO₂ gas erosion, ensuring durability in harsh industrial environments. It meets IEC 721-3-3 1994 Environmental Class 3C2 standards.

5. Online Repair and Maintenance

   The modular design allows for hot-swappable replacement of individual modules (A, B, or C) without shutting down the turbine. This feature reduces downtime and simplifies maintenance procedures.

6. Automatic Overspeed Testing

   The controller can be configured to perform periodic self-tests using an internal frequency generator to simulate overspeed conditions. Test results are logged and reported, ensuring continuous system reliability.

7. Modbus Communication and Redundant Hardwiring

   The 8237-1597 supports Modbus communication for seamless integration with distributed control systems (DCS) or PLCs. It also offers redundant hardwired I/O for critical signal paths, enhancing system robustness.

8. Event Logging and Real-Time Clock

   All overspeed events, trips, alarms, and valve response times are logged in non-volatile memory. A real-time clock ensures accurate time-stamping of events, with clock synchronization across modules for consistency.

Applications

• Power Generation: Steam turbines, gas turbines, and hydro turbines.
• Industrial Processes: Reciprocating engines, compressors, and other rotating machinery.
• Oil & Gas: Turbine-driven pumps and compressors in upstream and downstream operations.

Compliance and Certifications

• North America: CSA Certified for Class I, Division 2, Groups A, B, C, and D, T3 (60°C ambient).
• European Union: Compliant with EMC Directive 2004/108/EC and ATEX Directive 94/9/EC (Zone 2, Category 3, Group II G, Ex nA II T3).
• Environmental: IEC 60068-2-60:1995 Part 2.60 Methods 1 and 4 for conformal coating.

Conclusion

The Woodward 8237-1597 is a state-of-the-art overspeed protection controller that combines advanced safety features, modular design, and industrial-grade reliability. Its compliance with international standards and robust communication capabilities make it an ideal choice for critical turbine protection applications in power generation, oil & gas, and industrial processes.

For more information, please refer to Woodward’s official documentation or contact a certified Woodward distributor.

Note: This product description is based on publicly available technical specifications and may vary slightly depending on specific configurations or regional requirements.
