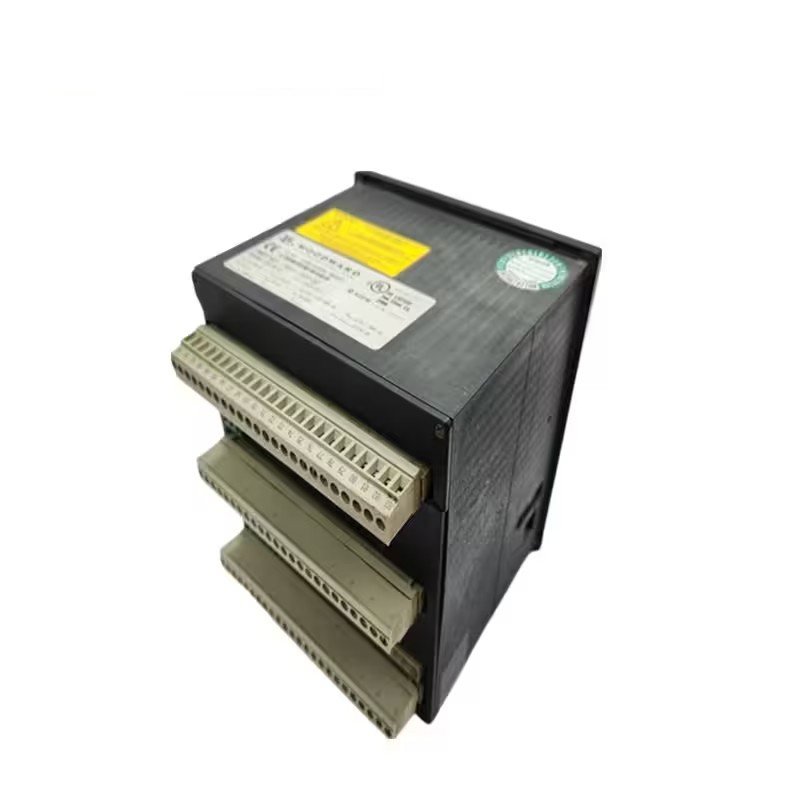

Woodward 8250-573 Final Driver Module

The Woodward 8250-573 module is a Final Driver Module used in Woodward governor systems. This module plays a critical role in controlling the engine’s fuel flow and other parameters.

Key Features and Functions

• The module receives input signals from the ECU, including speed reference, load demand, and fault information.
• It processes these signals to determine the appropriate actuator output.
• Next, it drives the actuator to regulate the engine’s fuel flow or other parameters.
• Additionally, the module provides feedback to the ECU regarding the actuator’s position and status.
• It monitors internal temperature and power supply, ensuring proper operation.

Applications

• Gas turbines
• Diesel engines
• Steam turbines
• Hydro turbines
• Industrial process control systems

Benefits

• The construction ensures reliability and durability.
• It offers high accuracy and precision.
• The module features a fast response time.
• Installation and maintenance remain easy.
• It maintains compatibility with various Woodward governor systems.
