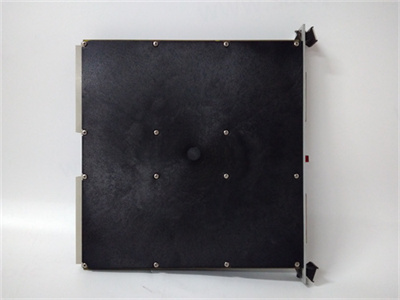

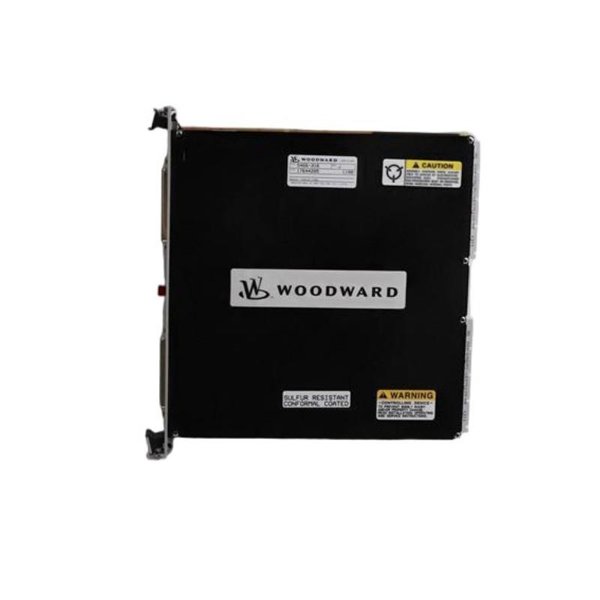

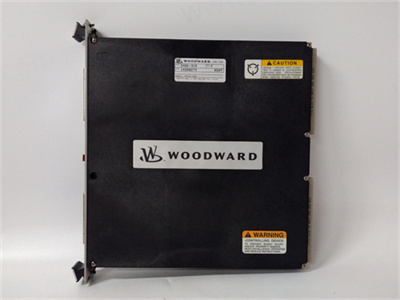

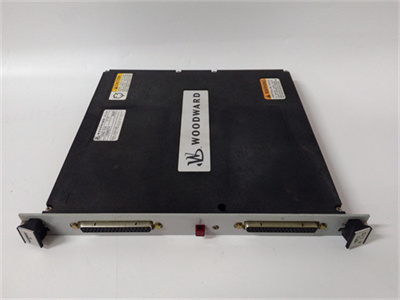

WOODWARD 5466-316 Product Introduction

WOODWARD 5466-316 is an input/output(I/O)module in industrial control systems.The following is a detailed introduction to the product.

Basic information

Model:5466-316

Manufacturer:WOODWARD

Product type:Industrial control system component

Color:Silver(some materials mention white,which may vary due to different batches or versions)

Material:Aluminum

Weight:2.5 pounds(other materials mention 1.85 pounds,which may vary due to different versions or measurement methods)

Technical specifications

Dimensions:6.5 x 4.5 x 2 inches

Input voltage:120/240 VAC

Output voltage:0-10 VDC

Input current:0-20 mA

Output current:4-20 mA

Frequency:50/60 Hz

Power consumption:5W

Operating temperature:-40°C to 85°C

Storage temperature:-40°C to 125°C

Humidity:0 to 95%non-condensing

Functional features

Discrete channels:With discrete input and output channels,digital signals such as switch status and fault signals can be received and output.

Communication interface:Supports a variety of communication interfaces,such as Modbus,Profibus,etc.,and corresponding communication parameters can be selected and set as needed to communicate and transmit data with the host or monitoring system.

Control program:The control program can be written in supported programming languages​​,and the control and operation of the module can be realized according to the actual control logic and algorithm.

Connecting sensors and actuators:The input and output channels of the module are connected to sensors and actuators to transmit signals and control devices.

Application scenarios

WOODWARD 5466-316 modules are usually used to connect sensors and actuators,transmit external signals to the control system or output control signals from the control system.It is widely used in various industrial automation and control systems,such as steam control market,PLC system,DCS system,etc.
