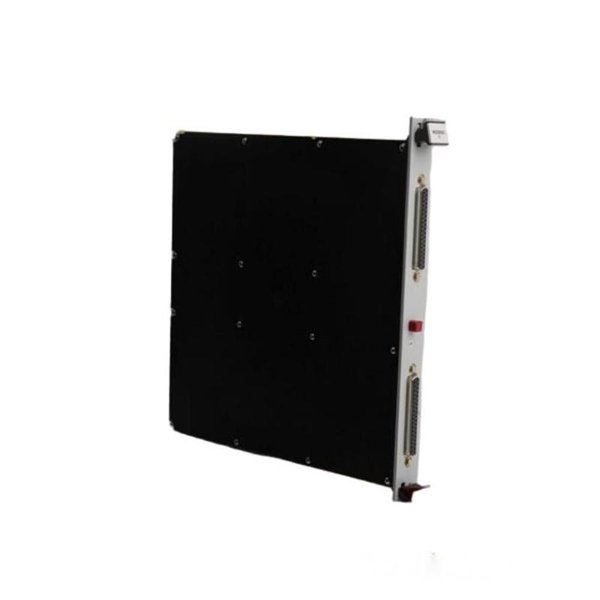

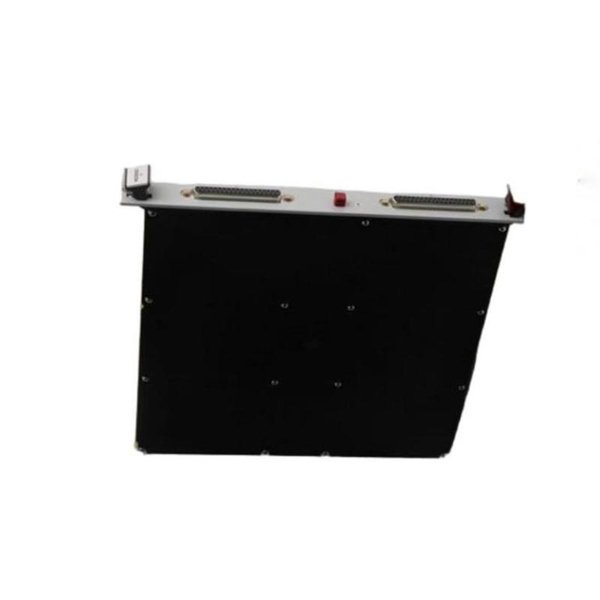

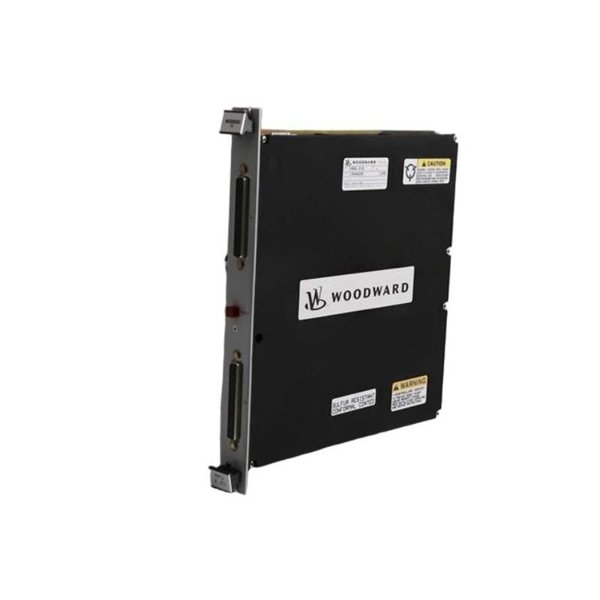

Woodward 5466-316 Analog Combination Module
Manufacturer:Woodward
Product Number:5466-316
Product Type:Analog Combination Module
Origin:USA
Dimensions:245 × 25 × 261 mm
Weight:0.85kg
Views:105
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Woodward 5466‑316 Analog Combination Module is a high-density I/O board used in Woodward MicroNet and NetCon control systems. Designed for precise and flexible control, this module combines both analog inputs and outputs in a single compact unit, offering engineers a reliable solution for monitoring and controlling critical process parameters. The 5466‑316 provides 16 analog input channels and 8 analog output channels, all of which are fully isolated and programmable, making it ideal for applications demanding high signal integrity and configurability.
Key Features
-
Combines analog inputs and outputs in one module
-
16 isolated differential analog inputs
-
8 isolated analog outputs (voltage or current configurable)
-
16-bit resolution on all channels
-
Galvanic isolation between channels and system bus
-
Software-configurable input and output ranges
-
On-board diagnostics and fault detection
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 5466‑316 |
| Module Type | Analog Combination I/O Module |
| Analog Inputs | 16 channels (differential, isolated) |
| Input Range | ±10 VDC, 0–20 mA, 4–20 mA (software configurable) |
| Analog Outputs | 8 channels (isolated) |
| Output Range | 0–10 VDC, 4–20 mA (software configurable) |
| Resolution | 16-bit |
| Isolation | Channel-to-channel and channel-to-backplane isolation |
| Diagnostics | Built-in self-test, signal validation |
| Dimensions | 245 × 25 × 261 mm |
| Weight | 0.85 kg |
| Installation | Mounts in MicroNet / NetCon I/O chassis |
| Operating Temperature | –40 °C to +70 °C |
| Country of Manufacture | United States of America |
Industry Applications
-
Industrial gas and steam turbine control systems
-
Power generation plant automation
-
Process control systems with mixed analog signal types
-
Safety-critical monitoring environments
-
SCADA-integrated industrial systems
Frequently Asked Questions (FAQ)
-
What is the primary function of the 5466‑316 module?
It combines analog input and output capabilities in one I/O module for compact and efficient control.
-
How many inputs and outputs does it support?
16 analog inputs and 8 analog outputs.
-
Are the input and output channels isolated?
Yes, each channel is isolated from others and from the backplane.
-
What signal ranges does it support?
±10 VDC, 0–20 mA, and 4–20 mA on inputs; 0–10 VDC and 4–20 mA on outputs.
-
What is the resolution of the I/O channels?
All channels have 16-bit resolution.
-
Is the module hot-swappable?
No, power must be off before installation or removal.
-
Can I configure the signal ranges via software?
Yes, all input and output ranges are software-configurable.
-
Which systems is the 5466‑316 compatible with?
Woodward MicroNet and NetCon control systems.
-
Does it include diagnostic capabilities?
Yes, it includes self-test features and signal diagnostics.
-
What is the operating temperature range?
–40 °C to +70 °C.
