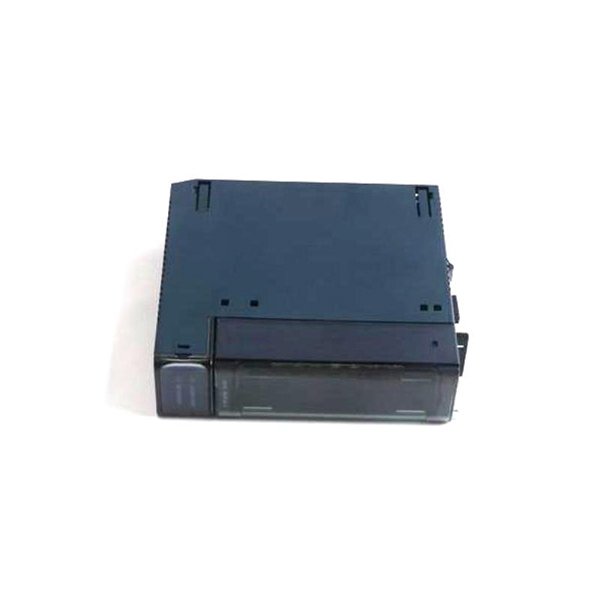

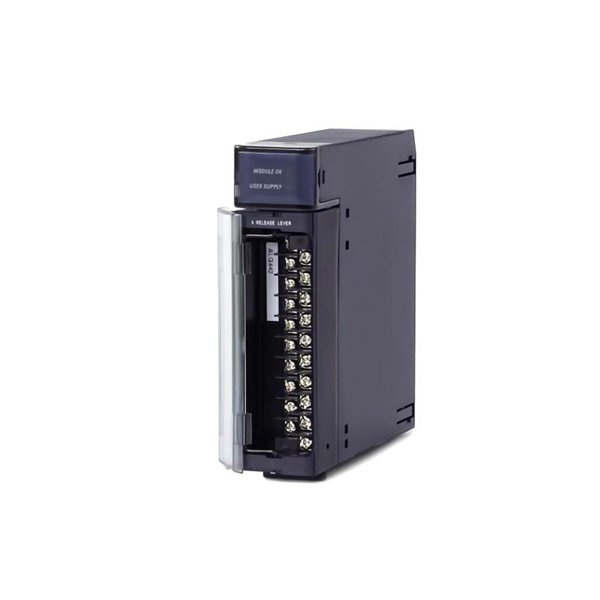

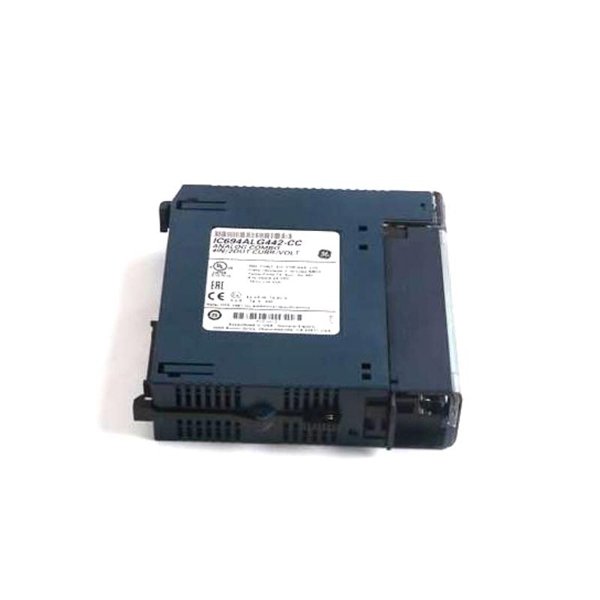

General Electric IC694ALG442-BA Analog Combination Module

​The GE Fanuc IC694ALG442-BA Analog Combination Module is a versatile I/O module designed for the RX3i PACSystems series. It facilitates the integration of analog inputs and outputs, handling both current and voltage signals, thereby enhancing the flexibility and scalability of industrial automation systems.​

The IC694ALG442-BA module offers a combination of analog input and output channels, allowing for efficient signal processing in various industrial applications. Its design ensures reliable performance in monitoring and controlling analog signals within automation systems.

Technical Specifications

Applications

• Process control systems requiring precise analog signal monitoring.​

• Industrial automation setups needing reliable analog I/O integration.​

• Systems where space-saving and multi-functionality are essential.​

Advantages

• Combines both analog input and output in a single module, reducing hardware requirements.​

• High-resolution and accurate signal processing ensures precise control.​

• Robust isolation enhances system safety and signal integrity.​

• Compact design facilitates easy installation in space-constrained environments.​

FAQ

1. What is the primary function of the IC694ALG442-BA module?

   • It serves as an analog combination module, providing both input and output channels for analog signal processing in automation systems.​

2. Can this module handle both voltage and current signals?

   • Yes, it supports input ranges of ±10V and 0–20mA, and output ranges of 0–10V and 4–20mA.​

3. Is the module compatible with other GE PACSystems?

   • It is specifically designed for the RX3i PACSystems series.​

4. What is the resolution of the analog signals?

   • The module offers a 16-bit resolution for precise signal processing.​

5. Does the module provide electrical isolation?

   • Yes, it features 1500V RMS isolation to protect against electrical interference.​

6. What are the physical dimensions of the module?

   • It measures 35 x 130 x 135 mm.​

7. What is the weight of the module?

   • The module weighs 0.5 kg.​

8. What is the operating temperature range?

   • It operates effectively between 0°C and 60°C.​

9. How many channels does the module have?

   • It includes 4 analog input channels and 2 analog output channels.​

10. Is the module suitable for high-speed applications?

    • With an update rate of 10 ms per channel, it is suitable for many industrial applications requiring timely analog signal processing.
