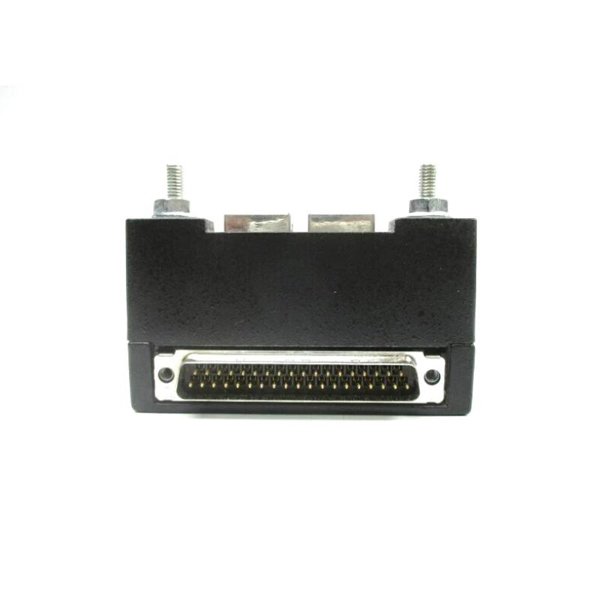

GE IS220PAICH2A Control Pulse Module Product Overview

The GE IS220PAICH2A (part number 336A4940CSP11) control pulse module is a key unit in the GE Mark VIe control system, mainly used for the acquisition and processing of analog signals. This module integrates high-precision input channels, which can convert the voltage and current signals of on-site sensors or transmitters into digital signals and transmit them to the main control unit, thereby achieving real-time monitoring and adjustment of complex industrial processes.

Technical Specifications

Module model: IS220PAICH2A/336A4940CSP11

Functional positioning: Analog input and signal processing module

Input type: Supports multi-channel current/voltage input

Accuracy level: Industrial grade high-precision measurement to ensure the stability of the control system

Communication method: Communicate with Mark VIe control system through I/O network

Redundancy support: configurable in redundant architecture to ensure system reliability

Environmental adaptability: Supports wide temperature range operation and has anti-interference ability

Application scenarios

Gas turbine and steam turbine: Collecting key parameters (such as temperature, pressure, flow) for real-time adjustment by the control system

Petrochemical industry: Collecting and controlling operational data of equipment such as reaction vessels and pump stations

Power System: Used for the Collection and Process Optimization of Operating Parameters in Power Plants

Metallurgy and Manufacturing: Used for high-precision data collection to ensure stable production processes

Cement and Mining: Status Monitoring and Automation Control for Large Continuous Production Equipment

Product advantages

High precision input: supports multiple analog signal acquisition to ensure data accuracy

Strong real-time performance: high-speed interaction with Mark VIe system to meet complex process control requirements

High reliability: supports redundant configuration, reduces system downtime risk

Modular design: facilitates system integration, expansion, and maintenance

Industrial grade standard: adaptable to harsh environments, ensuring long-term stable operation
