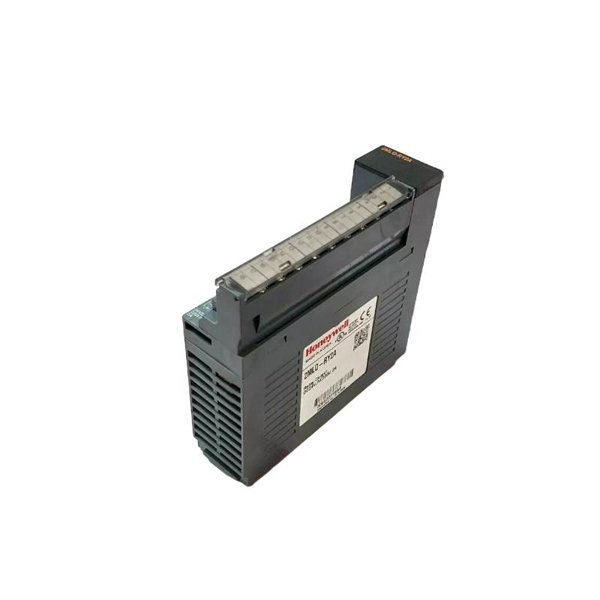

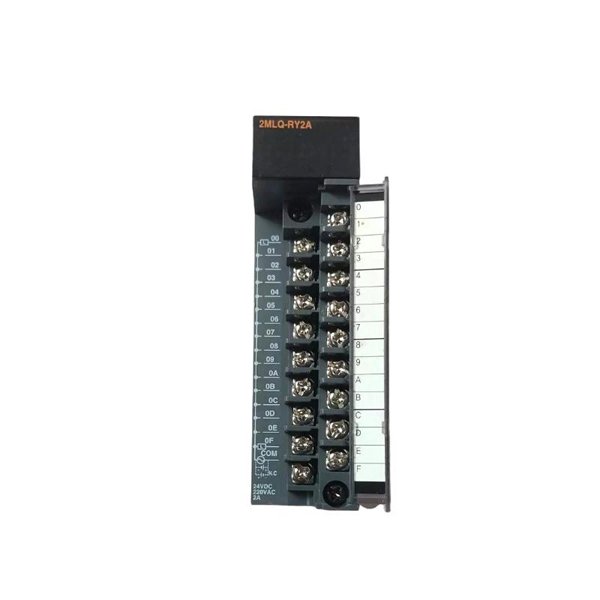

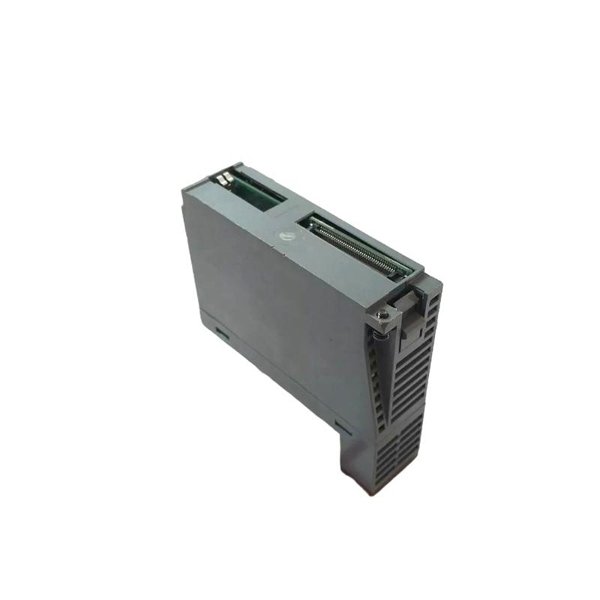

Honeywell 2MLQ-RY2A Relay Digital Output Module

The Honeywell 2MLQ-RY2A Relay Digital Output Module is an industrial-grade output device designed for digital control applications within Honeywell’s programmable logic and automation systems. This module is used to control field devices such as solenoids, alarms, contactors, and lights by providing electrically isolated relay outputs.

Known for its robust design and dependable switching performance, the 2MLQ-RY2A is especially suitable for critical I/O applications in factory automation, process control, and safety systems. It interfaces directly with the control logic to deliver on/off commands through its high-reliability relays, ensuring safe and secure actuation of external equipment.

Product Specifications

Product Applications

• Industrial Automation: Used to control indicators, relays, solenoids, and alarms in automated systems.

• Power Plant Control Systems: Safely activates or deactivates circuit components and field actuators.

• Building Automation: Switches HVAC and lighting systems through digital relay outputs.

• Emergency Systems: Triggers alarms or shutdown mechanisms in safety circuits.

• Manufacturing Machinery: Provides output commands for machine operation, sequencing, and motor starters.

• Infrastructure Management: Supports traffic control, water treatment, and utility systems.

Product Advantages

• High Isolation: Prevents electrical noise and interference from propagating into control systems.

• Durable Relay Contacts: Long electrical life ensures years of dependable operation under industrial loads.

• Dual Output Channels: Supports simultaneous operation of two independent circuits.

• LED Indicators: Visual output status improves diagnostics and reduces downtime.

• Compact Form Factor: Easily fits in space-constrained control cabinets.

• Trusted Integration: Seamlessly connects with Honeywell controllers, PLCs, and I/O platforms.

Frequently Asked Questions (FAQ)

1. What is the main use of the 2MLQ-RY2A module?

   It’s designed for switching field devices using relay-based digital outputs, often used for alarms, contactors, or solenoids.

2. How many output channels does this module provide?

   The module provides two independent SPDT relay outputs.

3. Is it safe for inductive loads like relays or solenoids?

   Yes, but proper suppression (e.g., flyback diodes) should be used to extend relay life.

4. What kind of electrical isolation does it offer?

   It provides 1500Vrms isolation between the control logic and output circuits.

5. Does this module have LED indicators?

   Yes, each output channel has its own LED for output status monitoring.

6. Can the module be replaced hot while the system is running?

   This depends on the host system’s support for hot-swapping. Check system documentation.

7. Is there software configuration required?

   Basic relay outputs do not require configuration, but address and assignment are done via the system controller.

8. Is the module suitable for outdoor use?

   No, it must be installed in a sealed industrial enclosure for outdoor applications.

9. Can it be used in a safety-rated system?

   While not SIL-rated by itself, it can be integrated into safety systems with the right architecture.

10. What’s the expected relay life span?

    Electrical relay life is typically 100,000 to 1,000,000 operations, depending on the load.
