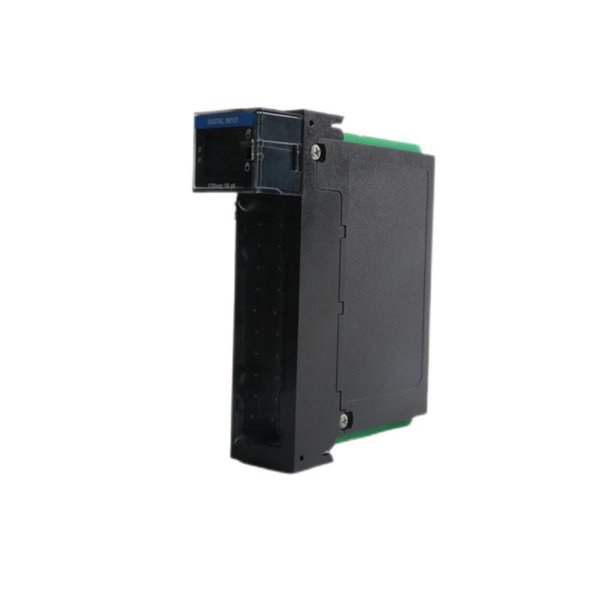

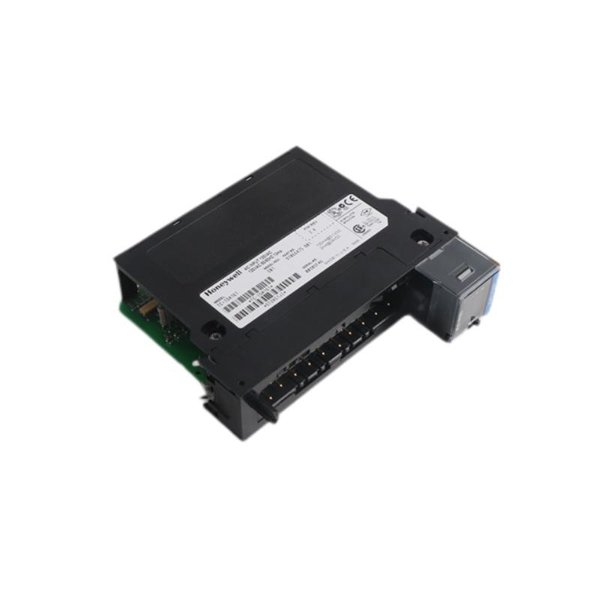

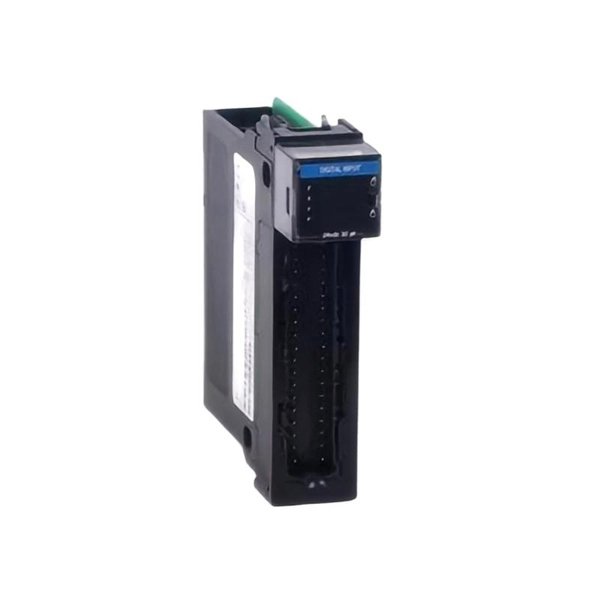

Honeywell TC-IDA161 Digital Input Module

The Honeywell TC-IDA161 Digital Input Module is a part of Honeywell’s extensive range of industrial automation products. This module is designed to handle digital input signals in a wide variety of control and monitoring applications. Whether you’re dealing with simple ON/OFF signals or more complex automation systems, the TC-IDA161 module offers the reliability and precision needed for industrial environments.

The TC-IDA161 serves as a critical component for systems that require secure and reliable digital input handling, ensuring effective communication between sensors, field devices, and the control systems. It offers robust performance even in challenging environments, providing excellent durability and compatibility with Honeywell’s existing control systems.

Product Specifications

Applications

The Honeywell TC-IDA161 Digital Input Module is widely used in industrial control systems, particularly where reliable input signal handling is crucial. Common applications include:

1. Process Automation

   Used to collect digital signals from sensors in process control systems such as temperature, pressure, or flow control.

2. Building Management Systems (BMS)

   Integrates with various monitoring and control systems in building infrastructure to manage alarms and status reports.

3. Machine Control

   Provides direct input interfaces for industrial machines, conveying the status of switches, sensors, and other devices.

4. Safety Systems

   Critical for safety monitoring, ensuring quick detection and response to system faults or abnormal conditions in a hazardous environment.

Advantages

1. High Compatibility

   Fully compatible with Honeywell’s Experion PKS and TPS systems, allowing easy integration into existing setups without complex configuration.

2. Robust Performance

   Designed to withstand extreme conditions, including wide temperature ranges and high humidity, making it perfect for demanding industrial environments.

3. Ease of Installation and Maintenance

   The module features simple wiring and configuration processes, reducing setup time. Additionally, LEDs provide clear visual indicators for each input status, making troubleshooting easier.

4. Flexibility

   Supports both sinking and sourcing input types, offering flexibility for various system configurations.

5. Enhanced Safety

   Built with industry-leading safety standards in mind, the module helps ensure that data signals are correctly monitored, contributing to overall system reliability.

6. Space Efficient

   With a compact size, the TC-IDA161 saves valuable space in control panels, a critical feature in space-constrained setups.

FAQ (Frequently Asked Questions)

1. What type of input signals does the TC-IDA161 support?

The module supports dry contact inputs, which can be configured as either sinking or sourcing signals.

2. How many inputs does the TC-IDA161 have?

The TC-IDA161 provides 16 individual digital inputs.

3. What is the operating temperature range for the TC-IDA161?

The module operates between -20°C and 60°C.

4. Can the TC-IDA161 be used in hazardous environments?

Yes, the module is designed to handle industrial environments, but additional protective measures may be required depending on the specific application.

5. How does the module indicate the status of each input?

The TC-IDA161 features individual LEDs that show the status of each input signal.

6. Is the TC-IDA161 compatible with other Honeywell products?

Yes, it is fully compatible with Honeywell’s Experion PKS and TPS systems.

7. What is the weight of the module?

The TC-IDA161 weighs 0.24 kg.

8. Does the module support both sinking and sourcing inputs?

Yes, the module supports both sinking and sourcing digital inputs.

9. Can I use this module in building management systems?

Yes, the TC-IDA161 is well-suited for use in building automation and management systems.

10. How easy is it to install the TC-IDA161?

The module is designed for easy installation, with clear labeling and simple wiring connections.
