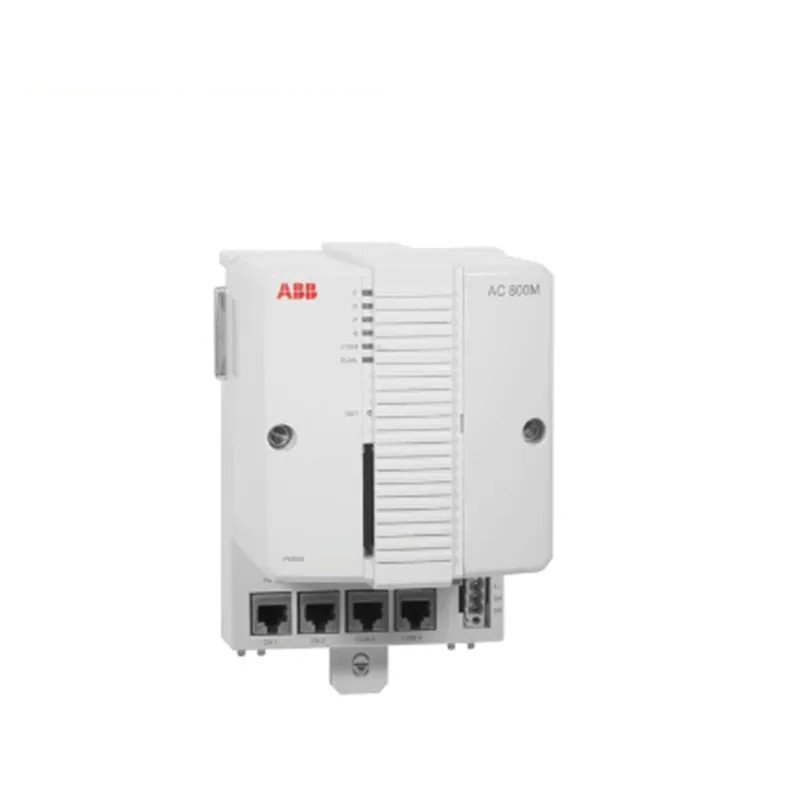

ABB PM858K01 3BSE082895R1 Controller Unit

The ABB PM858K01 is a compact and versatile controller designed for a wide range of industrial automation applications. It belongs to the AC 800M controller family, renowned for its reliability and performance. This controller is particularly suited for applications where space is limited, but high performance is required.

Key Features

Compact Design

The PM858K01 offers a small form factor, making it ideal for installation in tight spaces.

High Performance

It delivers robust processing power and I/O capabilities despite its compact size.

Flexibility

The controller can be configured to meet the specific needs of various applications, thanks to its modular design.

Reliability

The PM858K01 ensures continuous operation in harsh industrial environments.

Connectivity

It offers multiple communication interfaces, including Ethernet, for seamless integration into industrial networks.

Applications

Process Automation

Control industrial processes in various industries, including oil and gas, chemicals, and food and beverage.

Machine Automation

Control machines and production lines in manufacturing facilities.

Building Automation

Regulate HVAC systems and other building controls.

Technical Specifications

The CPU board contains the microprocessor, RAM memory, a real-time clock, LED indicators, an INIT push button, and a CompactFlash interface.

The base plate of the PM858K01 includes:

• Two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network.
• Two RJ45 serial ports (COM3, COM4).
  • COM3 is an RS-232C port with modem control signals.
  • COM4 is isolated and used for connecting a configuration tool.

The controller supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces, and S800 I/O).

Attach or detach the controller easily with the unique slide & lock mechanism on the DIN rail. Each base plate has a unique Ethernet address, providing every CPU with a hardware identity. Find the address on the Ethernet address label attached to the TP830 base plate.

Features and Benefits

• ISA Secure Certified: Read more about the certification.
• Reliability: The controller has simple fault diagnosis procedures.
• Modularity: Allows for step-by-step expansion.
• IP20 Class Protection: No need for enclosures.
• Configuration: Configure the controller with 800xA Control Builder.
• EMC Certification: The controller has full EMC certification.
• Sectioned CEX-Bus: Uses a pair of BC810 / BC820.
• Standard Hardware: Optimized for communication connectivity (Ethernet, PROFIBUS DP, etc.).
• Redundant Ethernet Ports: Built-in for enhanced communication reliability.
