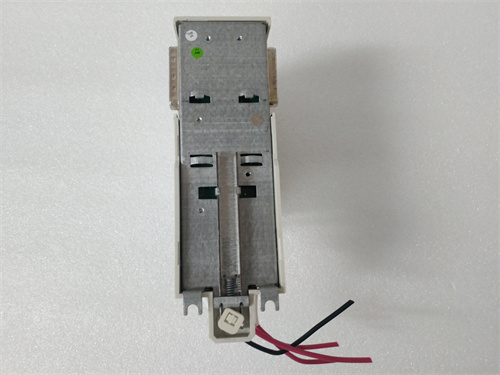

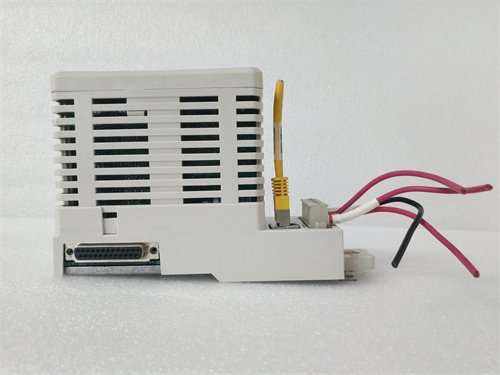

ABB SM811K01 3BSE018173R1 Product Overview

ABB SM811K01 3BSE018173R1 is a high-performance,high-security safety CPU module designed for the field of industrial automation.The following is a detailed introduction to the module.

Basic attributes

Brand:ABB

Model:SM811K01 3BSE018173R1

Type:Safety CPU module

Main features

High security

Certified by SIL3,ensuring high safety integrity.

Can prevent unauthorized access and tampering,and protect the integrity of data and functions.

Powerful computing power

Equipped with a high-performance CPU,it can quickly process large amounts of data and complex algorithms.

Ensure the real-time and accuracy of industrial automation systems.

Easy to configure and manage

Users can flexibly configure the module according to the configuration safety manual to meet the needs of different application scenarios.

Provide rich diagnostic and maintenance functions to facilitate users to monitor and maintain the system.

Good compatibility

Can collaborate with other components such as ABB’s PM865 for seamless integration.

Supports multiple communication protocols and interfaces to facilitate data exchange with other devices and systems.

Redundancy

There is a dedicated synchronization link to synchronize active and redundant SMs for hot-insertion and online upgrades.

Redundant configuration is supported to improve system reliability and availability.

Technical Specifications

Processor type:MPC862P microprocessor,running at 96 MHz.

Memory:32 megabytes of memory(RAM).

Power supply:24 V DC(19.2-30 V DC).

Power consumption

Typical/maximum:+24V power consumption is 160/250 mA,total power consumption is 3.8 watts.

Dimensions

Width:59 mm(2.32 inches).

Height:186 mm(7.32 inches).

Depth:No specific value is provided,but it can be inferred from the description that it is of moderate size.

Weight:0.7 kg(1.54 pounds)(including base).

Application Fields

Due to the excellent performance and safety of the SM811K01 3BSE018173R1 module,it is widely used in various industrial automation scenarios,such as power,chemical,pharmaceutical,food and other industries.In these fields,the module provides stable and reliable operation guarantee for industrial automation systems.
