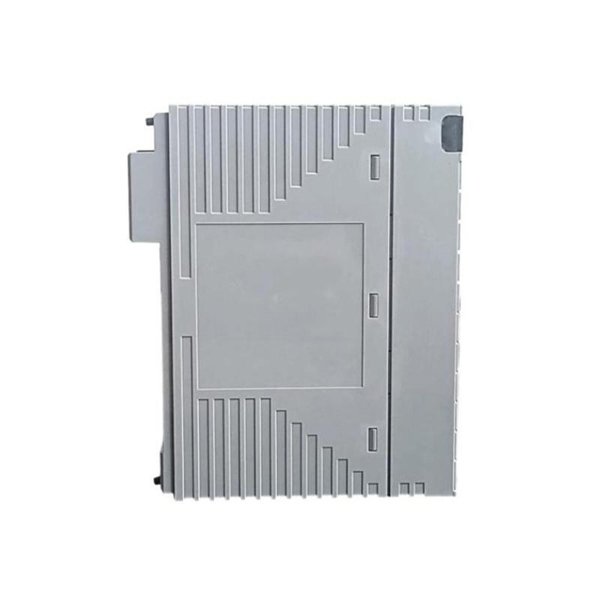

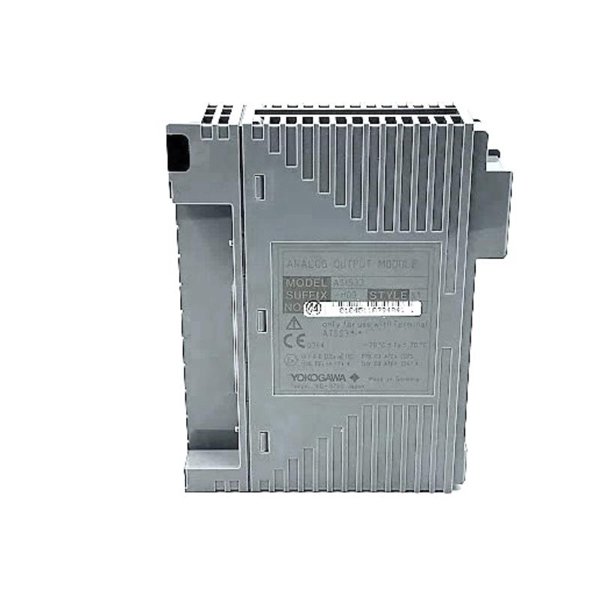

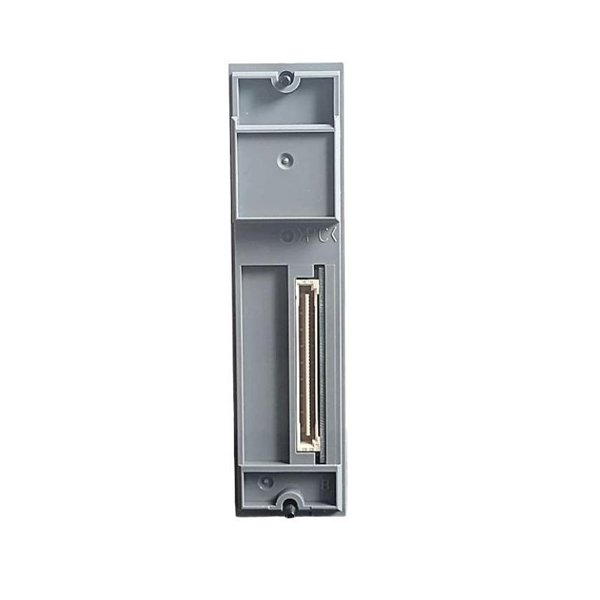

Yokogawa ASI533-S00 Analog Output Module
Manufacturer:Yokogawa
Product Number:ASI533-S00
Product Type:Analog Output Module
Origin:Japan
Dimensions:107.5 × 130 × 32.8 mm
Weight:0.3 kg
Views:30
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Yokogawa ASI533-S00 is a high-performance analog output module designed for process automation systems. It converts digital signals from controllers into precise analog outputs, enabling reliable control of actuators, valves, and other field devices. Built for industrial environments, it ensures stable operation and high accuracy.
Technical Specifications
| Parameter | Specification |
|---|---|
| Output Channels | 8 channels, individually isolated |
| Output Signal Type | 4–20 mA DC or 0–10 V DC |
| Accuracy | ±0.1% full scale |
| Maximum Output Current | 23 mA (load ≤ 600 Ω) |
| Load Resistance | 0–750 Ω (20 mA), 0–600 Ω (23 mA) |
| Update Cycle | 10 ms per channel |
| Operating Temperature | -20°C to 70°C |
| Communication | HART supported (up to 16 HART devices) |
| Power Supply | 24 V DC |
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
Applications
-
Industrial process control systems
-
Chemical, oil & gas, and power plants
-
Valve and actuator control
-
HART-enabled field device integration
-
Precision signal conversion in DCS environments
Advantages
-
High accuracy signal conversion (±0.1%)
-
Supports both current and voltage output types
-
HART communication for smart device integration
-
Compact and lightweight design (107.5 × 130 × 32.8 mm, 0.3 kg)
-
Reliable operation in harsh industrial conditions
-
Fast response with 10 ms update cycle
Frequently Asked Questions (FAQ)
1. What is the maximum number of channels on the ASI533-S00?
The module supports 8 isolated analog output channels.
2. Which output types are supported?
It supports 4–20 mA DC current and 0–10 V DC voltage outputs.
3. What is the module’s accuracy?
±0.1% full scale.
4. Can this module communicate with HART devices?
Yes, it supports HART communication for up to 16 devices.
5. What is the operating temperature range?
-20°C to 70°C.
6. What are the physical dimensions and weight?
107.5 × 130 × 32.8 mm, weighing 0.3 kg.
7. What is the maximum load resistance?
0–750 Ω for 20 mA output, 0–600 Ω for 23 mA output.
8. What is the module’s update cycle time?
10 ms per channel.
9. What type of power supply does it require?
24 V DC.
10. Is the module suitable for harsh industrial environments?
Yes, it is designed for reliable operation under demanding industrial conditions.
