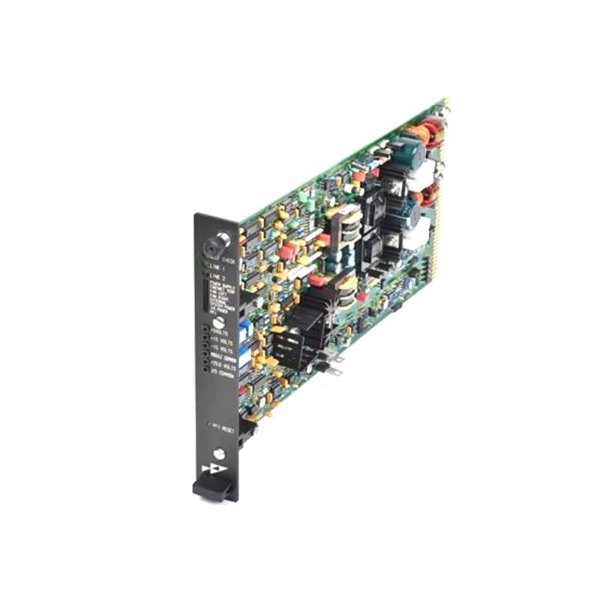

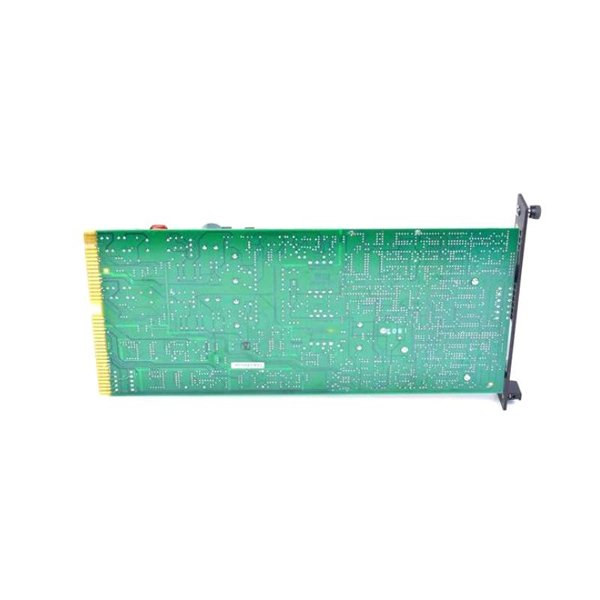

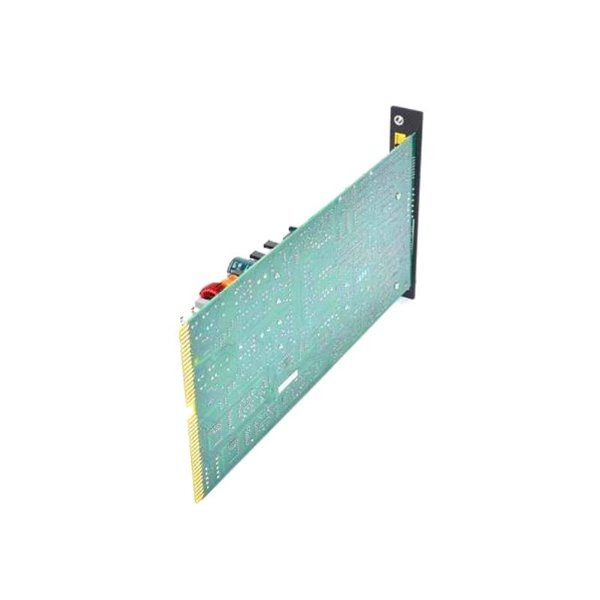

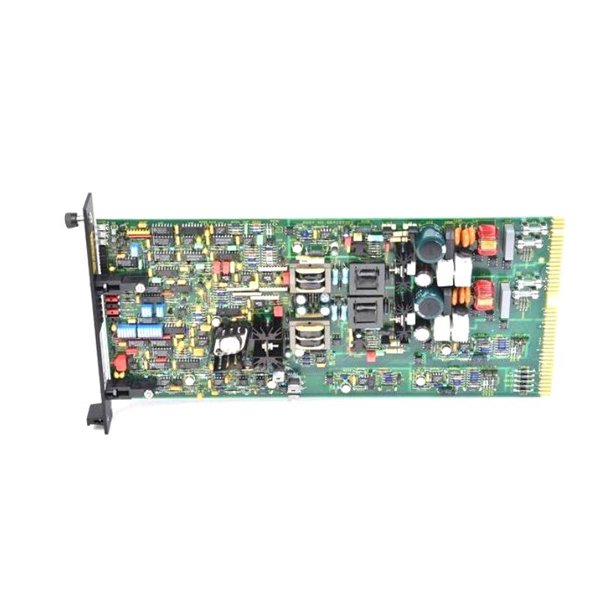

ABB Bailey IPMON01 Power Monitor Module

The ABB Bailey IPMON01 Power Monitor Module is a sophisticated device designed to monitor and manage power quality within industrial systems. It offers precise real-time monitoring of power consumption, voltage, and current, providing detailed insights into the performance of electrical systems. This module is part of ABB’s extensive range of process automation products, built to deliver high levels of accuracy and reliability in a variety of industrial settings.

The IPMON01 Power Monitor Module is a critical tool for ensuring efficient operation and energy savings in industrial environments. By continuously analyzing power usage and detecting any abnormalities in the system, it enables early detection of power issues such as voltage fluctuations, power surges, or energy inefficiencies. This helps companies improve their energy management strategies, optimize performance, and prevent costly system downtime.

Additionally, the module is designed for seamless integration with ABB’s broader automation systems, providing a comprehensive view of power data across various connected devices. Whether used for monitoring individual equipment or larger networks, the IPMON01 provides valuable insights that help improve system performance and reduce operational costs.

Product Parameters

The following table outlines the key specifications of the ABB Bailey IPMON01 Power Monitor Module:

Applications

The ABB Bailey IPMON01 Power Monitor Module is ideal for monitoring and managing electrical power in a variety of industrial and commercial applications. Its robust design and comprehensive features make it suitable for diverse use cases, including:

Key Applications

• Energy Management Systems (EMS): The module enables monitoring of energy consumption and power quality, making it essential for energy management systems in industrial plants and commercial buildings.

• Industrial Automation: Used to integrate with other industrial systems to monitor energy usage, detect anomalies, and optimize energy consumption in manufacturing processes.

• Predictive Maintenance: The IPMON01 provides critical power data that can help predict potential failures in electrical systems, allowing for proactive maintenance and reducing downtime.

• Data Center Monitoring: Helps data centers monitor power quality and usage, ensuring that backup power systems such as UPS units and generators are functioning optimally.

• Power Distribution Systems: Used in power distribution networks to monitor voltage, current, and power quality across substations, improving operational efficiency and reliability.

• HVAC Systems: In large HVAC systems, the module helps ensure that power usage is within expected ranges, preventing energy wastage and optimizing system efficiency.

• Renewable Energy Systems: The IPMON01 can be used to monitor the performance of renewable energy sources, such as solar or wind, to ensure they are delivering the expected power output.

• Building Automation: This module is useful in managing and optimizing the power usage of building systems, including lighting, heating, and air conditioning.

Advantages

The ABB Bailey IPMON01 Power Monitor Module offers several advantages that make it a top choice for industrial power monitoring:

1. High Accuracy: With an accuracy of ±0.5%, the IPMON01 delivers precise readings of power usage, ensuring that energy consumption data is reliable and actionable.

2. Wide Voltage and Current Range: The module supports a wide input voltage range (90-600 V AC) and current input range (1 – 100 A), making it versatile and suitable for a variety of applications.

3. Real-Time Monitoring: Provides real-time power data, which helps operators make quick decisions to address issues before they lead to larger problems.

4. Digital Output: With digital outputs via Modbus RTU and Ethernet, the module can be easily integrated into existing industrial control systems.

5. Compact Design: Its compact size (218.4 × 35.56 × 401.32 mm) allows for easy installation in a variety of spaces, including DIN rail mounting, which saves valuable panel space.

6. Energy Efficiency Optimization: Helps identify inefficiencies in power usage, enabling companies to optimize their energy consumption and reduce costs.

7. Robust Protection: The IP20 protection class ensures that the module is protected from dust and other particles, making it suitable for industrial environments.

8. Compliance with Standards: The module is CE, UL, and RoHS certified, ensuring it meets global safety and environmental standards.

9. Customizable Display Options: The optional external display provides easy-to-read visual feedback, making it easier for operators to monitor power consumption at a glance.

10. Low Power Consumption: With a low power consumption of less than 10 W, the IPMON01 is energy-efficient and cost-effective for long-term usage.

FAQ

1. What is the input voltage range of the IPMON01 Power Monitor Module?

   • The input voltage range is 90-600 V AC.

2. What is the current input range supported by the module?

   • The module supports a current input range from 1 to 100 A.

3. What communication protocols does the module support?

   • The IPMON01 supports Modbus RTU and Ethernet communication protocols.

4. What is the accuracy of the power measurements?

   • The accuracy of the power measurements is ±0.5% of the reading.

5. What are the dimensions of the module?

   • The module has dimensions of 218.4 × 35.56 × 401.32 mm.

6. What is the weight of the ABB Bailey IPMON01 module?

   • The module weighs 0.71 kg.

7. Can this module be used for predictive maintenance?

   • Yes, the IPMON01 provides data that can be used to predict failures in electrical systems, making it suitable for predictive maintenance applications.

8. Is the IPMON01 suitable for use in harsh industrial environments?

   • Yes, with its IP20 protection class, the module is protected from dust and is suitable for many industrial environments.

9. Can the module be integrated into existing industrial control systems?

   • Yes, the IPMON01 can be easily integrated into existing systems via its digital output options (Modbus RTU and Ethernet).

10. What certifications does the IPMON01 have?

    • The module is CE, UL, and RoHS certified, ensuring it meets international safety and environmental standards.
