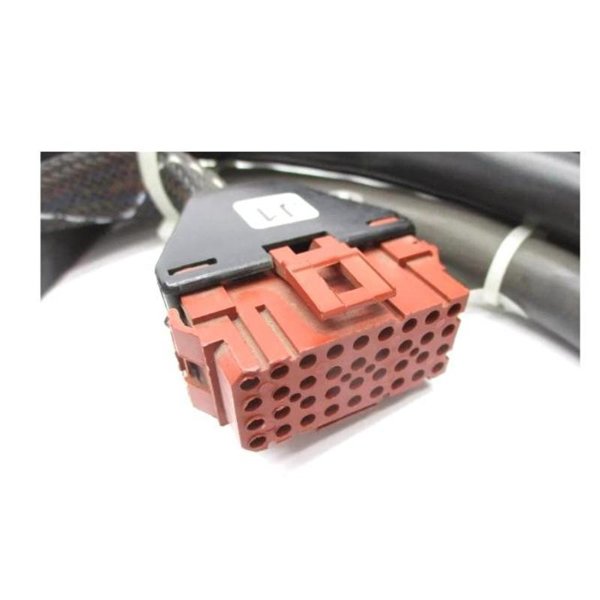

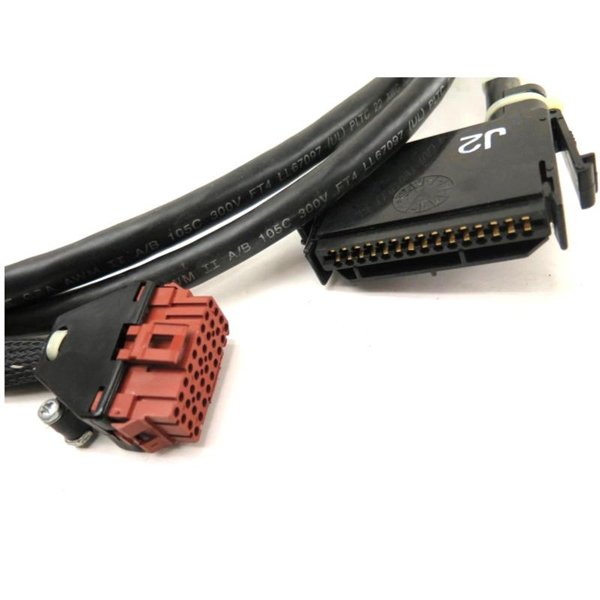

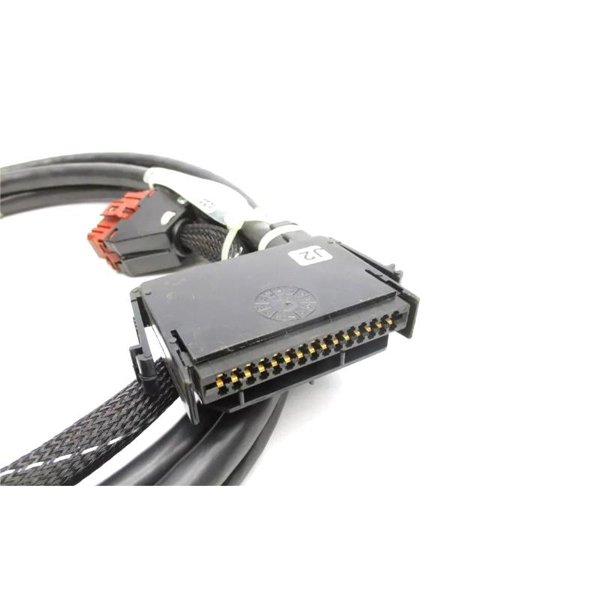

The NKTU01-10 is a 10-foot Infi 90 loop termination cable developed for ABB Bailey control systems. It is specifically designed to connect INFI 90 modules such as the NTDI01 Termination Unit to associated slave or master modules, ensuring reliable I/O signal transmission. Its robust design ensures secure connectivity and operational integrity in industrial automation environments.

Technical Specifications

Product Applications

• Industrial process control systems

• Bailey INFI 90 distributed control systems (DCS)

• Termination of field wiring to NTDI01 and other modules

• Used in power plants, chemical plants, refineries

Product Advantages

• High Compatibility: Designed specifically for ABB Bailey NTDI01 and related modules.

• Ease of Installation: Plug-in design simplifies module interconnection.

• Reliable Signal Transmission: Ensures secure and accurate I/O signal flow.

• Industrial Durability: Operates in harsh conditions with minimal maintenance.

• System Protection: Enhances overall signal integrity and protects system components.

Frequently Asked Questions (FAQ)

Q1: What is the primary use of the NKTU01-10 cable?

A1: It connects ABB Bailey NTDI01 Termination Units to master/slave modules in the INFI 90 system.

Q2: Is the cable pre-terminated or field-terminated?

A2: The cable comes pre-terminated with socket and hooded connectors.

Q3: Can this cable be used in hazardous environments?

A3: No, it is CSA certified only for use in ordinary (nonhazardous) locations.

Q4: What type of signal does the cable carry?

A4: It is designed for I/O signal routing in digital and analog configurations.

Q5: Is this cable compatible with modules other than NTDI01?

A5: Yes, it connects to various ABB INFI 90 slave and master modules.

Q6: Can the cable be extended or spliced?

A6: It is not recommended to splice the cable as it may degrade signal integrity.

Q7: How is the cable secured to the module?

A7: The hooded end latches into the P3 connector of the module; the socket end plugs into the P1 port of the TDI.

Q8: What is the voltage rating for this cable?

A8: The cable supports I/O connections up to 150 VDC or 120 VAC, depending on module configuration.

Q9: What are the maintenance requirements?

A9: Routine inspection for connector integrity and dust cleaning every 6 months.

Q10: What are the storage recommendations?

A10: Store in a clean, non-corrosive, and temperature-controlled environment.
