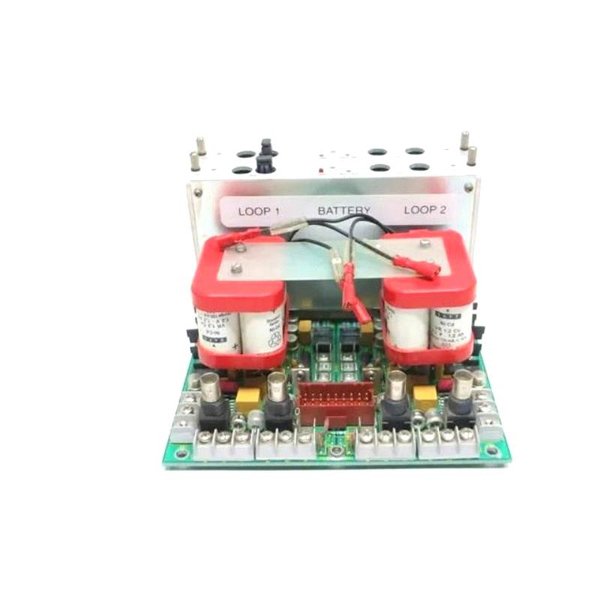

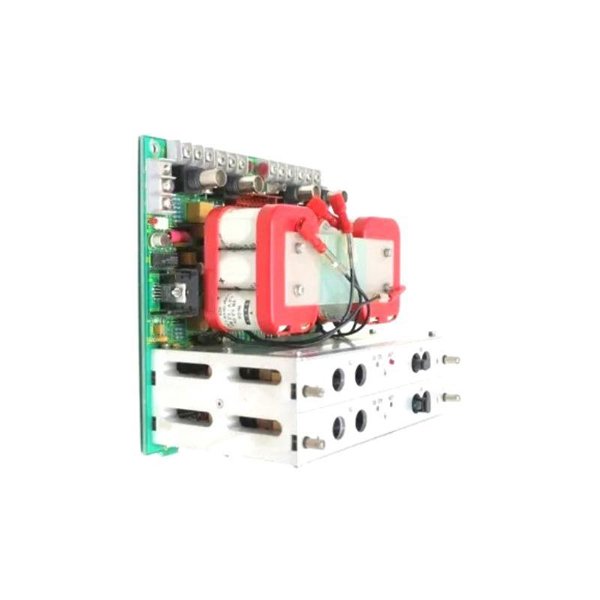

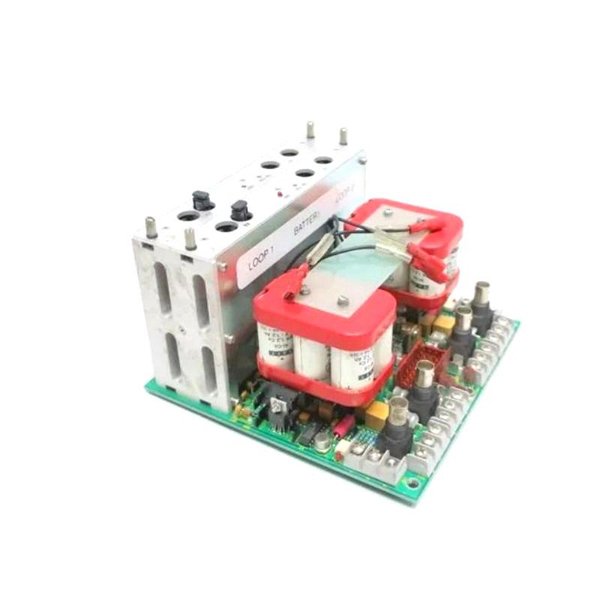

The ABB Bailey NTCF02 is a Termination Unit from the Infi 90 series, designed for reliable signal routing between field devices and control systems. It provides a structured and organized connection interface for I/O modules, improving wiring efficiency and maintainability in industrial automation environments.

Technical Specifications

Applications

• Industrial process control systems

• Power generation plants

• Oil and gas automation

• Water treatment facilities

• Manufacturing automation systems

Key Advantages

• Provides clear and reliable signal termination

• Enhances wiring clarity and reduces field errors

• Simplifies maintenance and module replacement

• Compatible with Bailey Infi 90 architecture

• Robust design suitable for industrial environments

FAQs

Q1: What is the primary function of the NTCF02 unit?

A1: It serves as a termination point for field wiring to interface with I/O modules in the Infi 90 control system.

Q2: Is the NTCF02 compatible with all Bailey Infi 90 modules?

A2: Yes, it is designed specifically to work with the Bailey Infi 90 system.

Q3: Can this unit be mounted in standard industrial enclosures?

A3: Yes, it is suitable for panel mounting in industrial environments.

Q4: What type of terminals does the unit use?

A4: It uses screw terminals for secure wiring connections.

Q5: Does NTCF02 require a power supply?

A5: No, it is a passive termination unit and does not require power.

Q6: Is the NTCF02 suitable for hazardous environments?

A6: It is not intrinsically safe but can be used in conjunction with certified enclosures.

Q7: What is the typical application environment for NTCF02?

A7: It is commonly used in process automation across industries like power, oil & gas, and water treatment.

Q8: Can it be used for both analog and digital signals?

A8: Yes, it supports termination for both analog and digital I/O signals.

Q9: How is wiring maintenance handled with NTCF02?

A9: The clear terminal layout allows easy identification and replacement of connections.

Q10: Are there replacement or alternate models for the NTCF02?

A10: Yes, related models like NTCF01 and newer variants may be used depending on system requirements.
