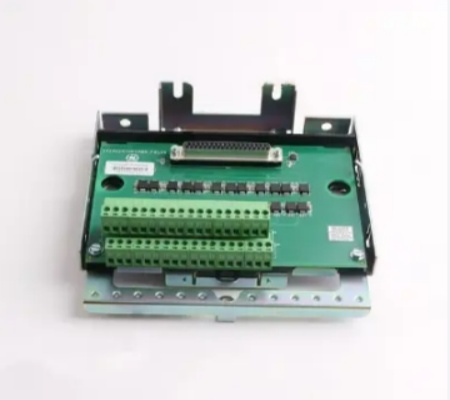

General Electric IS230SNTCH2A Thermocouple Input Module

The IS200STTCH2ABA is a simplex thermocouple board developed by GE. It is part of the Mark VI control system.This board terminates external I/O. It is mainly used for GE Speedtronic Mark VIE series. In addition, Mark VI is a flexible platform for a variety of applications.It also provides high-speed networking I/O for simplex, duplex and triplex redundant systems.The IS200STTCH2A is a multi-layer PCB with embedded SMD components and connectors. Part of the terminal block is a removable connector.

 It is designed to interface seamlessly with the PTCC Thermocouple Processor Board on the Mark VIe or the VTCC Thermocouple Processor Board on the Mark VI. This compatibility ensures smooth integration with existing systems and enhances operational flexibility.Signal Conditioning and Cold Junction Reference: The STTC terminal board incorporates on-board signal conditioning and cold junction reference, the same functionality found on the larger TBTC board. This ensures accurate temperature readings by compensating for variations at the junction where the thermocouple is connected to the terminal board.
