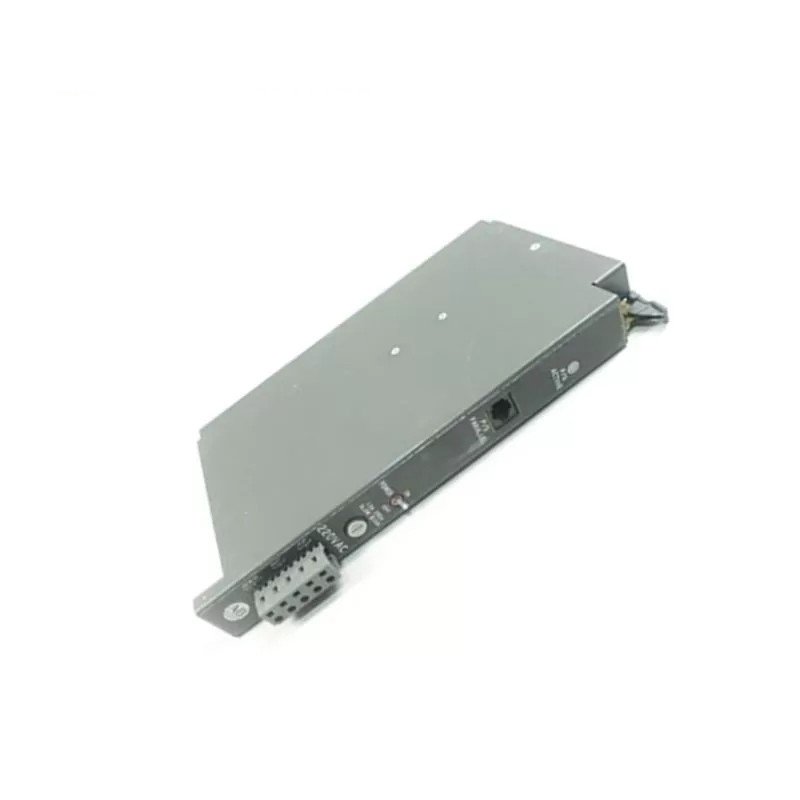

Allen-Bradley 1771-P6S Supply Modules
Manufacturer: Allen-Bradley (Rockwell Automation)
Product Number: 1771-P6S
Category: Auxiliary Power Supply Module (PLC-5 / 1771 Series)
Nominal Input Voltage: 220V AC (range 194-264V AC, 47-63Hz)
Backplane Output Current: 8 Amperes at 5V DC
Max Real Input Power: 56 Watts
Max Apparent Input Power: 89 VA
Max Transformer Load: 140 VA
Fuse: 1.5 Amperes, 250V, slow-blow
Location: 1771 Chassis, occupies 1 slot
Cabling: 1771-CT paralleling cable
Features: Supports paralleling with another supply for up to 16A total; generates shutdown signal on low line voltage to protect memory; supports remote/local sensing via jumper selection
System Compatibility: Allen-Bradley PLC-5 programmable controllers, 1771 I/O systems
Application: Industrial control system power distribution, auxiliary power for backplane
Product Description
The Allen-Bradley 1771-P6S is a power supply module designed for the Allen-Bradley 1771 PLC-5 programmable logic controller platform. It provides regulated 5V DC power directly to the I/O chassis backplane, ensuring reliable operation for your industrial automation system.
Features
- Single-slot design: Fits seamlessly into any available slot within a 1771 I/O chassis.
- Wide input voltage range: Accommodates various power source configurations, accepting 194-264V AC or 97-132V AC.
- Multiple power supply support: Can be paralleled with other compatible power supplies for increased current capacity.
- Local or remote sensing: Jumper configurable for optimized voltage regulation based on application needs.
Technical Specifications
- Input voltage: 194-264V AC or 97-132V AC
- Input current: 0.5A (220V AC) or 1.06A (100V AC)
- Output voltage: 5V DC
- Current rating: 8A
- Form factor: Single I/O slot
