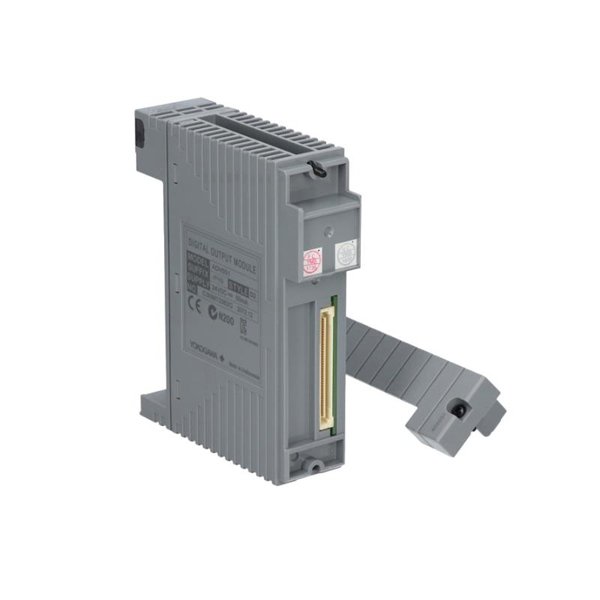

Yokogawa ADV561-P01 Digital Output Module

The Yokogawa ADV561-P01 Digital Output Module is a robust and high-performance component engineered to support industrial automation systems. As part of Yokogawa’s Advanced Automation Platform (AAP), this module is designed for efficient and reliable digital output control, making it essential in industries that demand precise process management, automation, and real-time feedback.

The ADV561-P01 module provides 8 independent digital output channels, offering flexibility and adaptability to various system requirements. It plays a critical role in converting control signals from a central processing unit (CPU) or controller into digital commands for controlling actuators, solenoids, valves, motors, and other external devices.

The ADV561-P01 is ideal for applications that require fast and precise digital outputs, such as manufacturing, chemical processing, power generation, and building automation. Its high-performance characteristics, including fast response time, easy integration into control systems, and high current capacity, make it an excellent choice for diverse industrial settings.

Product Specifications

Product Applications

The ADV561-P01 Digital Output Module is used across several industries that require precise, high-speed digital output control. The following are some of the common applications of this module:

1. Industrial Automation

   The ADV561-P01 module is widely used for controlling a variety of machinery, such as solenoids, actuators, and control valves. By converting digital control signals into outputs, the module ensures the smooth operation of automated processes in manufacturing, assembly lines, and robotic systems.

2. Process Control Systems

   In industries such as chemical, petrochemical, and pharmaceutical, the module is used to control key processes such as mixing, pumping, and material handling. By providing reliable digital outputs, the ADV561-P01 helps maintain product quality and process efficiency.

3. Power Generation

   The ADV561-P01 module is critical in power generation plants where it controls turbines, generators, and other critical equipment. With its ability to manage high current outputs, it ensures the stable and reliable operation of these essential components in power plants.

4. Building Automation

   In commercial and industrial buildings, this module is used to control HVAC systems, lighting, security systems, and other infrastructure. By offering digital output signals, it enables efficient operation of building systems, contributing to energy savings and improved operational performance.

5. Energy Distribution

   The ADV561-P01 module is employed in energy management systems to regulate the distribution of electricity. By managing electrical loads, it ensures the optimal distribution of power across grids, minimizing disruptions and improving energy efficiency.

Product Advantages

1. High-Speed Response

   The ADV561-P01 module offers a typical response time of 10 ms, ensuring that control commands are executed quickly and accurately. This fast response time is critical in applications where real-time adjustments are necessary, such as automated manufacturing lines and process control systems.

2. Compact and Lightweight Design

   With compact dimensions of 130 x 119.9 x 32.8 mm and a weight of just 0.3 kg, the ADV561-P01 module is lightweight and easy to integrate into control panels or existing systems. Its small size makes it ideal for applications where space is limited, while still providing the necessary digital output capabilities.

3. Flexible Output Configuration

   The ADV561-P01 module supports both sinking and sourcing output configurations, providing flexibility for a wide range of industrial applications. This adaptability ensures seamless integration into different control systems, allowing the module to meet specific user needs.

4. Wide Temperature Range

   The module operates within a temperature range of -40°C to +70°C, which makes it suitable for use in demanding environments with varying temperature conditions. Whether deployed in outdoor installations or in industrial plants with extreme temperature fluctuations, the ADV561-P01 maintains stable performance.

5. High Output Current Handling

   Each of the 8 output channels can handle up to 0.5A, making the ADV561-P01 ideal for controlling high-power devices such as actuators and solenoids. This high current capacity ensures that the module can handle the requirements of demanding industrial applications.

6. Easy Integration and Installation

   The ADV561-P01 module is designed for DIN rail mounting, which makes it simple to install in existing control systems. It integrates easily with other Yokogawa products, minimizing installation time and reducing the complexity of system setup.

7. Durability and Long Service Life

   Built to withstand harsh industrial environments, the ADV561-P01 module is constructed from high-quality materials that ensure long-term durability. Its reliability and robustness make it a dependable component for mission-critical applications that require continuous operation.

8. Cost-Effective Solution

   The ADV561-P01 provides exceptional performance at a competitive price point, making it a cost-effective choice for industries that need high-quality digital output control without the need for expensive solutions.

FAQ

Q1: What is the primary function of the ADV561-P01 module?

A1: The ADV561-P01 module is designed to provide digital output signals that control industrial devices such as actuators, motors, valves, and solenoids in automation systems.

Q2: How many digital output channels does the module have?

A2: The module provides 8 independent digital output channels.

Q3: What is the maximum output current per channel?

A3: Each output channel can handle a maximum current of 0.5A, making it suitable for controlling high-power devices.

Q4: What is the response time of the ADV561-P01 module?

A4: The module has a typical response time of 10 ms, ensuring quick execution of control commands.

Q5: What is the temperature range for the module?

A5: The ADV561-P01 module operates within a temperature range of -40°C to +70°C, ensuring stable performance in a variety of environments.

Q6: Can the ADV561-P01 module be used for both sinking and sourcing output configurations?

A6: Yes, the module supports both sinking and sourcing output configurations, offering flexibility for various system designs.

Q7: What is the weight of the ADV561-P01 module?

A7: The module weighs 0.3 kg, making it lightweight and easy to handle during installation.

Q8: How is the module mounted?

A8: The ADV561-P01 module is designed for DIN rail mounting, which simplifies installation and reduces setup time.

Q9: In what industries can the ADV561-P01 module be used?

A9: The module is used in a wide range of industries, including industrial automation, process control, power generation, building automation, and energy management.

Q10: How does the ADV561-P01 module improve system performance?

A10: By providing precise and reliable digital output control, the ADV561-P01 module ensures that industrial systems operate efficiently, contributing to higher productivity, improved quality, and reduced downtime.
