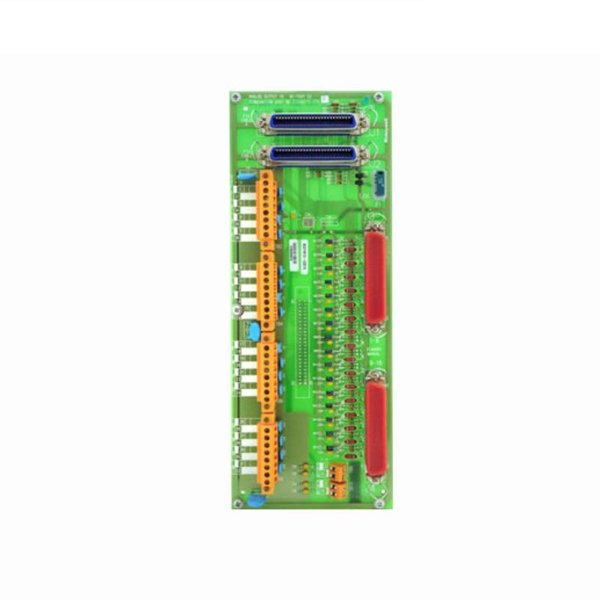

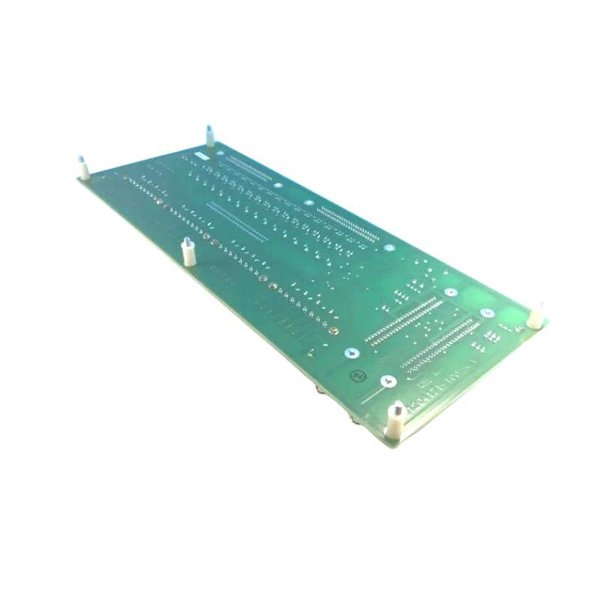

Honeywell MU-TAOY22 51204172-125 Analog Output with Compression Terminals
Manufacturer:Honeywell
Product Number:MU-TAOY22 51204172-125
Product Type:Analog Output with Compression Terminals
Origin:USA
Dimensions:307 × 105.5 × 21.3 mm
Weight: 0.36 kg
Views:29
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Honeywell MU-TAOY22 51204172-125 is a 16-channel analog output processor module designed for use with Honeywell’s TPS (TotalPlant Solution) systems. It delivers reliable 4–20 mA current loop outputs, supporting high-density analog signal transmission for industrial automation and control applications. The module utilizes compression terminals for field wiring and supports redundancy for high availability applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MU-TAOY22 |
| Channels | 16 Analog Output Channels |
| Output Signal Type | 4–20 mA |
| Output Ripple | 100 mV peak-to-peak (across 250 Ω load) |
| Output Linearity | ±0.05% nominal |
| Output Resolution | ±0.05% |
| Calibrated Accuracy | ±0.35% of full scale (at 25°C) |
| Max Output Current | 24 mA |
| Directly Settable Range | 0 mA, 2.9 mA to 21.1 mA |
| Max Resistive Load | 750 Ω @ 20 mA |
| Output Settling Time | 4 ms to reach 98% of final value |
| Output Compliance Voltage | 15 V (with 24 V supply) |
| Humidity | ±0.1% FS (50% RH ±40% RH) |
| Dimensions | 307 × 105.5 × 21.3 mm |
| Weight | 0.36 kg |
| Redundancy Option | Yes (MU-TAOY23, TAOY52, TAOY53 compatible) |
| Surge Protection | ANSI/IEEE C37.90.1-1978 compliant |
Applications
-
Oil & gas refining
-
Power generation plants
-
Chemical and petrochemical facilities
-
Pulp and paper industry
-
Water and wastewater treatment plants
Product Advantages
-
High Channel Density: Supports 16 outputs per module for compact installations.
-
Output Redundancy: Ensures continuous control even during processor failure.
-
High Accuracy and Linearity: Suitable for demanding process applications.
-
Fast Response: 4 ms settling time enhances real-time process control.
-
Integrated Surge Protection: Protects the system from transient conditions.
-
Compression Terminals: Simplifies field wiring and maintenance.
Frequently Asked Questions (FAQ)
Q1: What is the signal type supported by MU-TAOY22?
A1: It supports 4–20 mA analog output current signals.
Q2: Can the MU-TAOY22 be used in redundant configurations?
A2: Yes, it supports redundancy with compatible modules like MU-TAOY23 and TAOY52.
Q3: What is the maximum output current of each channel?
A3: Each channel can output up to 24 mA.
Q4: How many analog outputs are available in this module?
A4: There are 16 analog output channels.
Q5: Is the module compliant with surge protection standards?
A5: Yes, it meets ANSI/IEEE C37.90.1-1978 standards.
Q6: What is the maximum load resistance supported?
A6: It supports up to 750 Ω at 20 mA.
Q7: What is the output accuracy at 25°C?
A7: ±0.35% of full scale including linearity.
Q8: Does it have readback checking functionality?
A8: Yes, with ±4% readback accuracy.
Q9: What type of terminal connections are used?
A9: Compression terminals for secure and tool-less wiring.
Q10: What is the module’s typical use environment?
A10: It’s designed for industrial automation in process control systems.
