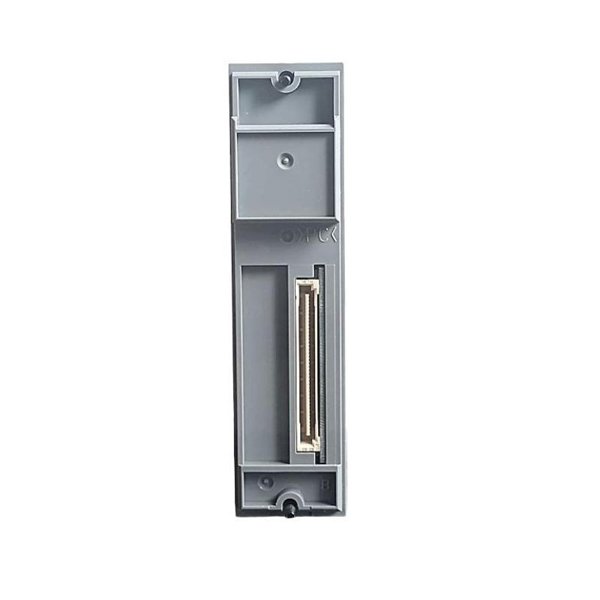

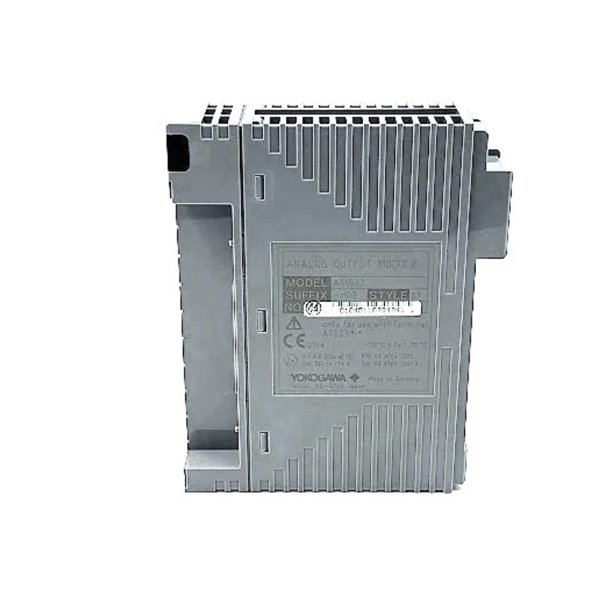

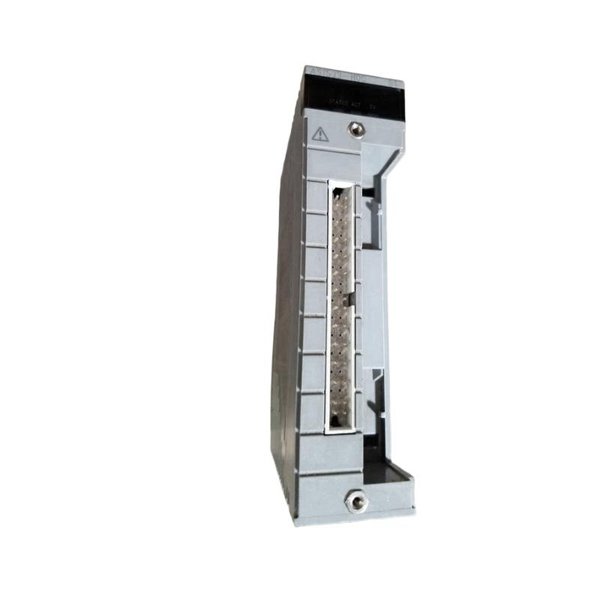

Yokogawa ASI533-S00 S1 Analog Output Module
Manufacturer:Yokogawa
Product Number:ASI533-S00 S1
Product Type:Analog Output Module
Origin:Japan
Dimensions:107.5 × 130 × 32.8 mm
Weight:0.3 kg
Views:30
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Yokogawa ASI533-S00 S1 Analog Output Module is designed for high-precision process control in industrial automation systems. It converts digital signals from DCS or PLC systems into accurate analog outputs to drive field devices such as valves, actuators, and transducers. The module ensures stable, reliable, and fast signal output, suitable for critical industrial applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | ASI533-S00 S1 |
| Output Channels | 8 |
| Output Type | Current: 4–20 mA; Voltage: 0–10 V |
| Resolution | 16-bit high accuracy |
| Accuracy | ±0.1% of full scale |
| Update Rate | 10 ms per channel |
| Output Load Resistance | 0–750 Ω (current mode) |
| Power Supply | 24 V DC nominal |
| Power Consumption | 6 W typical |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +85°C |
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
Applications
-
Industrial process control systems
-
Digital-to-analog conversion for PLC/DCS output
-
Controlling actuators, valves, and motors
-
Chemical, petrochemical, and power plants
-
Temperature, flow, and pressure regulation
Advantages
-
High-precision analog output ensures accurate control
-
Supports both current and voltage signals for versatile applications
-
Compact size for easy integration into control panels
-
Robust construction for harsh industrial environments
-
Fast update rate for real-time control
Frequently Asked Questions (FAQ)
1. What output types are supported by the ASI533-S00 S1?
It supports both 4–20 mA current and 0–10 V voltage analog outputs.
2. How many output channels does it have?
The module has 8 analog output channels.
3. What is the update rate per channel?
The update rate is 10 milliseconds per channel.
4. What is the accuracy of the analog output?
The accuracy is ±0.1% of full scale.
5. What is the maximum load resistance for current output?
The maximum load resistance is 750 Ω.
6. What are the operating and storage temperature ranges?
Operating: -10°C to +60°C; Storage: -20°C to +85°C.
7. What is the module’s power supply requirement?
The module requires 24 V DC nominal supply.
8. What is the module’s weight and dimensions?
Dimensions: 107.5 × 130 × 32.8 mm; Weight: 0.3 kg.
9. Can it be used in harsh industrial environments?
Yes, it is designed to withstand challenging industrial conditions.
10. Is it compatible with all Yokogawa DCS systems?
It is compatible with standard Yokogawa DCS and PLC systems, but verification with the system configuration is recommended.
