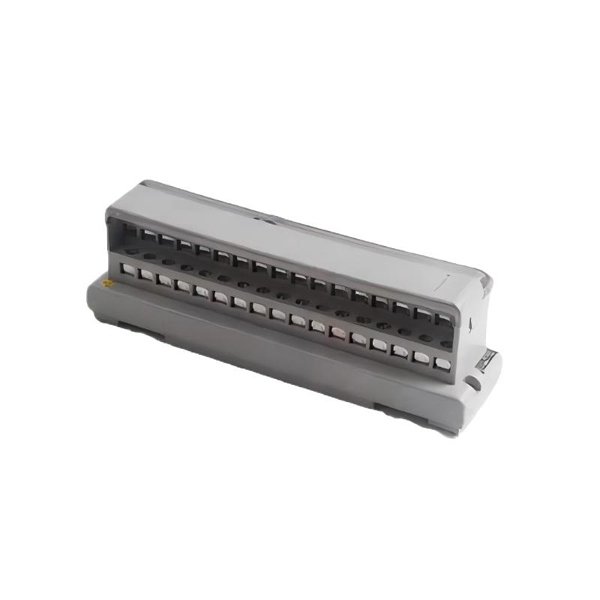

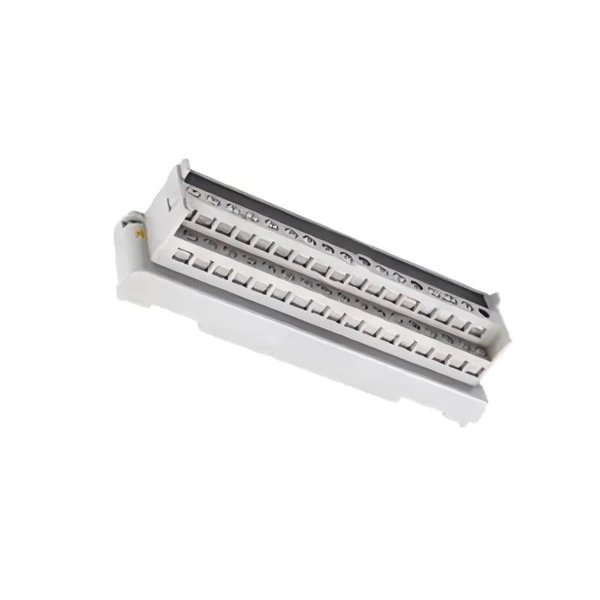

Yokogawa AMM25T Current Input Multiplexer Module

The Yokogawa AMM25T is a high-precision, versatile current input multiplexer module designed for use in industrial automation systems. This module allows for the seamless multiplexing of multiple current input signals, enabling precise and efficient monitoring and control in a variety of applications. Ideal for industries such as manufacturing, process control, and instrumentation, the AMM25T provides reliable signal processing, reducing the need for complex wiring and simplifying system integration.

With its compact design and robust performance, the AMM25T module can handle multiple input channels simultaneously, ensuring that accurate measurements and control are maintained in real-time. This module integrates smoothly with other Yokogawa devices, offering high compatibility and reliability for mission-critical applications.

Product Parameters

Product Applications

The AMM25T current input multiplexer module is ideal for a range of industrial applications that require accurate and simultaneous monitoring of multiple current signals. Common use cases include:

• Process Control Systems: Integrating with PLCs and SCADA systems to monitor sensors in manufacturing lines or chemical plants.

• Automation Systems: Used in automated testing, control, and monitoring systems to multiplex signals from various field devices.

• Data Acquisition Systems: Facilitates the collection of real-time data from multiple current-transmitting sensors, ideal for monitoring production processes.

• Remote Monitoring: Useful in systems where physical space for individual measurement modules is limited, enabling centralized signal multiplexing and monitoring.

Product Advantages

• Compact Design: The AMM25T features a small footprint (45 × 97 × 103 mm), allowing it to fit into tight spaces, reducing panel size and simplifying system installation.

• High Accuracy: With an accuracy of ±0.1% of reading, the module ensures precise measurements, which is critical for sensitive industrial control processes.

• Versatile Input: Supports a wide range of current input signals (4-20 mA), making it adaptable to different types of sensors and measurement systems.

• Efficient Multiplexing: The module allows multiplexing of up to 8 input channels, reducing the number of individual devices needed and simplifying wiring and configuration.

• High Reliability: Designed for industrial environments, the AMM25T operates in temperatures ranging from -20°C to +60°C, ensuring reliable performance in harsh conditions.

• Ease of Integration: Its compatibility with Yokogawa’s other automation and control products ensures seamless integration into existing systems, minimizing setup time.

FAQ

1. What is the input signal type supported by the AMM25T module?

The AMM25T supports 4-20 mA current input signals, which are commonly used for industrial process monitoring and control.

2. How many input channels can the AMM25T multiplex?

The AMM25T can multiplex up to 8 input channels, allowing for efficient signal management from multiple sources.

3. What is the accuracy of the AMM25T module?

The module provides an accuracy of ±0.1% of the reading, ensuring precise data collection and control.

4. What is the power supply requirement for the AMM25T?

The AMM25T requires a 24 VDC power supply for operation.

5. What is the response time of the AMM25T?

The module has a response time of 200 milliseconds, enabling real-time signal processing and control.

6. Can the AMM25T be mounted on a DIN rail?

Yes, the AMM25T is designed for DIN rail mounting, making installation and integration easy in industrial control panels.

7. What is the operating temperature range of the AMM25T module?

The AMM25T operates within a temperature range of -20°C to +60°C, making it suitable for a variety of industrial environments.

8. What is the weight of the AMM25T module?

The AMM25T weighs 0.3 kg, which is lightweight and compact, reducing the overall system weight.

9. How does the AMM25T improve system efficiency?

By multiplexing multiple input channels into a single module, the AMM25T reduces the need for numerous separate devices, simplifying wiring and improving system efficiency.

10. Is the AMM25T compatible with Yokogawa’s other products?

Yes, the AMM25T is fully compatible with Yokogawa’s range of measurement and control instruments, ensuring seamless integration into existing systems.
