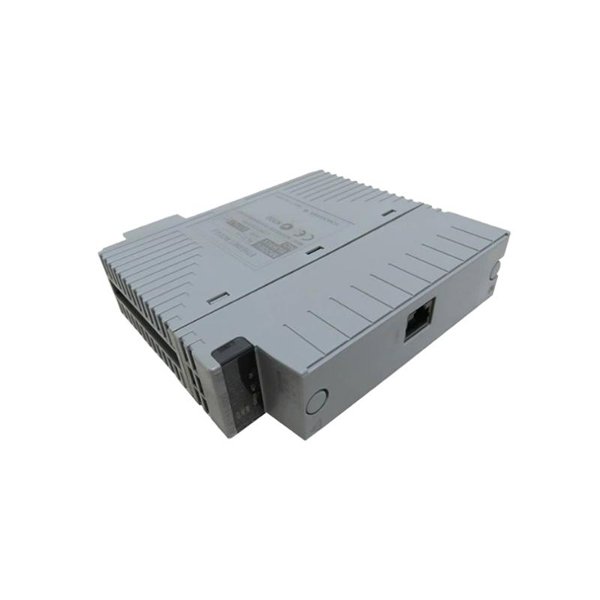

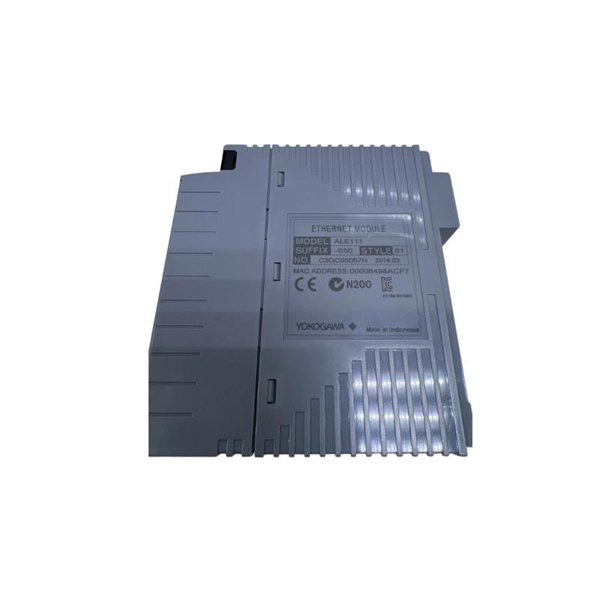

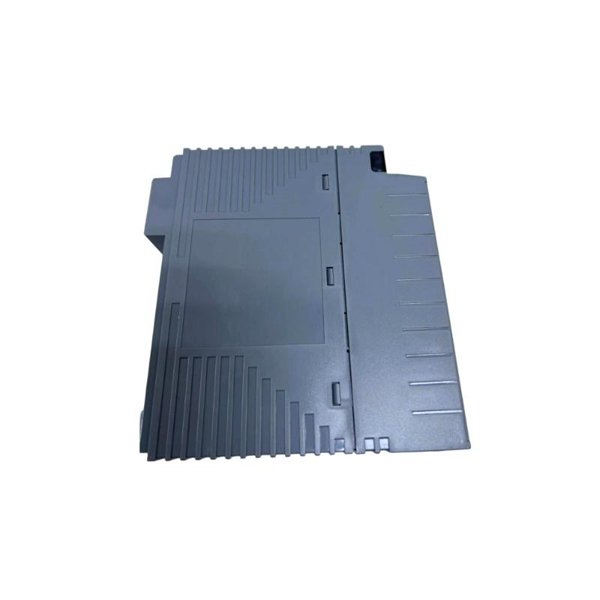

Yokogawa ALE111-S50 S1 Ethernet Communication Module

The Yokogawa ALE111-S50 S1 Ethernet Communication Module is an advanced network communication solution designed to provide seamless integration between field devices and control systems via Ethernet. It enables high-speed and reliable data transmission between various industrial systems, ensuring smooth operations and enhanced productivity in industries like manufacturing, process control, and automation.

This Ethernet communication module supports a wide range of industrial protocols, including Modbus TCP, OPC, and Ethernet/IP, making it a versatile tool for interconnecting devices from different manufacturers. The ALE111-S50 S1 is specifically engineered for use in environments where data integrity, speed, and reliability are paramount. By providing a secure and fast Ethernet connection, it allows industrial processes to be monitored and controlled in real time, improving operational efficiency.

The ALE111-S50 S1 is compact and lightweight, designed for easy integration into existing systems. With a robust construction and high durability, this module ensures that users can achieve uninterrupted communication across critical applications without compromising performance.

Product Specifications

Product Applications

The Yokogawa ALE111-S50 S1 Ethernet Communication Module is used across various industries where high-speed and secure data transmission is essential. Some of the key applications include:

1. Process Control Systems: In chemical plants, refineries, and power stations, the ALE111-S50 S1 provides reliable communication between control systems and field devices, enabling efficient process management.

2. Manufacturing: This module connects manufacturing equipment with centralized systems, facilitating real-time data exchange for better decision-making and improved workflow automation.

3. Energy Management: In energy plants, the ALE111-S50 S1 helps integrate various energy management systems, ensuring seamless communication for monitoring and controlling operations.

4. Automation: In automated environments, such as factory automation, it connects different control systems, PLCs, and HMIs, providing a unified communication interface.

5. Building Management Systems (BMS): The module allows for seamless communication between building control systems, HVAC systems, and security systems, ensuring integrated building management.

Product Advantages

• High-Speed Data Transmission: With support for Ethernet speeds up to 1000 Mbps, the ALE111-S50 S1 ensures quick and reliable data transfer across the network, reducing latency and improving overall system performance.

• Versatile Protocol Support: The module supports a wide range of industrial protocols such as Modbus TCP, OPC, and Ethernet/IP, making it compatible with various control systems and field devices.

• Compact and Robust Design: With its small form factor (130 x 125.5 x 32.8 mm) and lightweight (0.3 kg), the module can be easily integrated into existing systems without requiring significant space or installation effort.

• Secure and Reliable Communication: The ALE111-S50 S1 provides secure data transmission, ensuring that sensitive operational data is protected while being transferred over the network.

• Flexible Mounting Options: The module offers DIN rail and panel mounting options, giving users flexibility in installation and integration with different system configurations.

• Wide Operating Temperature Range: The module operates effectively in harsh environments, with a temperature range from -20°C to 60°C, ensuring reliable performance even in extreme conditions.

FAQ (Frequently Asked Questions)

1. What is the purpose of the ALE111-S50 S1 Ethernet Communication Module?

   • The module enables high-speed, reliable Ethernet communication between field devices and control systems, allowing for real-time data exchange and process control.

2. How is the ALE111-S50 S1 powered?

   • The module requires a 24 VDC power supply for operation.

3. What communication protocols does the ALE111-S50 S1 support?

   • The ALE111-S50 S1 supports Modbus TCP, OPC, and Ethernet/IP protocols, making it versatile for a wide range of industrial applications.

4. What are the mounting options for the ALE111-S50 S1?

   • The module can be mounted using either a DIN rail or a panel mount option, depending on the system’s design.

5. What is the operating temperature range of the ALE111-S50 S1?

   • The ALE111-S50 S1 operates within a temperature range of -20°C to 60°C.

6. What are the Ethernet port specifications of the ALE111-S50 S1?

   • The module is equipped with 2 Ethernet ports, each supporting speeds of 10/100/1000 Mbps for fast and reliable communication.

7. What is the weight and size of the ALE111-S50 S1 module?

   • The module weighs 0.3 kg and has dimensions of 130 x 125.5 x 32.8 mm.

8. Can the ALE111-S50 S1 be used in outdoor environments?

   • The ALE111-S50 S1 is rated with an IP20 enclosure, which means it should be used in indoor environments or well-protected from dust and water.

9. What industries benefit the most from using the ALE111-S50 S1?

   • Industries such as process control, manufacturing, energy management, building management, and automation benefit from the high-speed, reliable data communication provided by the ALE111-S50 S1.

10. What are the main advantages of using the ALE111-S50 S1?

    • Key advantages include high-speed data transmission, versatile protocol support, compact and robust design, secure communication, flexible mounting options, and a wide operating temperature range.
