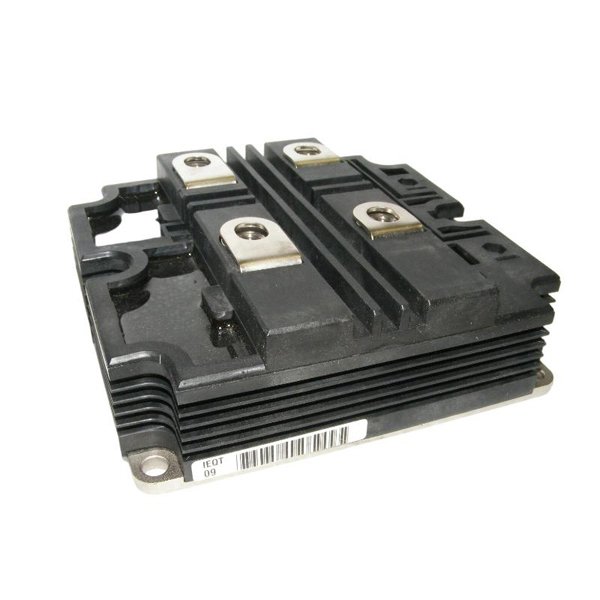

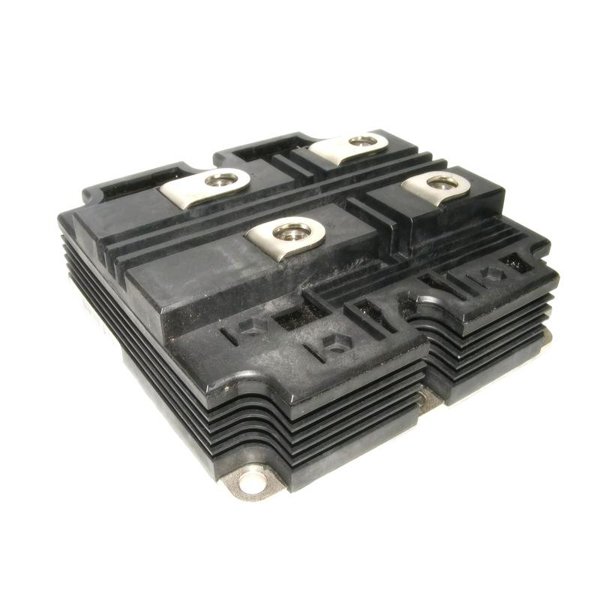

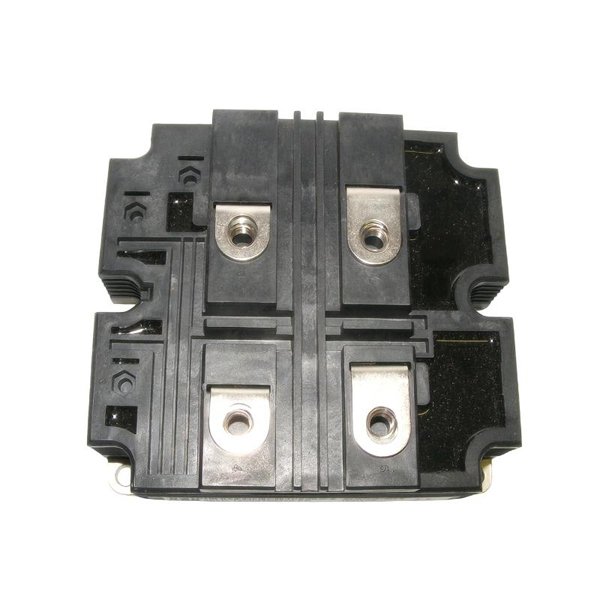

ABB 5SLD0600J650100 HiPak Dual DIODE Module

The ABB 5SLD0600J650100 is a HiPak Dual Diode Power Module designed to meet the performance and reliability demands of high-power industrial and traction applications. As part of ABB’s renowned HiPak family, this diode module is built with high-current and high-voltage silicon components in a dual-pack format, enabling robust thermal management and long-term reliability in high-stress environments.

The module integrates two diodes in an insulated housing, optimized for freewheeling, rectification, and clamping functions in converters and inverters. It features low forward voltage drop, high surge current capability, and low thermal resistance, making it highly efficient in energy conversion systems such as motor drives, wind turbines, solar inverters, and railway traction.

The 5SLD0600J650100 complies with industrial standards and is widely used in medium-voltage drives, power converters, and renewable energy systems.

Product Specifications

Applications

The ABB 5SLD0600J650100 module is used in high-reliability, high-voltage environments requiring superior diode performance and mechanical robustness. Primary application areas include:

• Medium-Voltage Motor Drives

  Functions as a freewheeling or clamping diode in VFD and soft starter systems for heavy-duty motors.

• Wind Power Converters

  Used in the rectification stage of power conversion systems for wind turbines.

• Solar Inverters

  Serves as a blocking or bypass diode in high-voltage photovoltaic inverter systems.

• Rail Traction Systems

  Integrated into propulsion converters for high-speed trains and metros.

• Industrial Power Supplies

  Protects IGBT modules and facilitates efficient power control in industrial UPS and DC link circuits.

• HVDC and FACTS Equipment

  Applied in transmission systems for energy switching, damping, and current limiting.

Product Advantages

• High Voltage Rating (6500V)

  Suitable for high-voltage converter applications, reducing the number of devices required in series.

• Robust Thermal Management

  HiPak design provides excellent heat dissipation, enabling higher current densities.

• Compact and Isolated Package

  Electrically isolated baseplate simplifies mounting and insulation requirements.

• Long Life Cycle & Low Failure Rate

  Designed for 24/7 operation with high surge capability and low leakage currents.

• ABB Quality and Certification

  Manufactured to strict quality standards, ensuring performance consistency and global compliance.

• Press-Pack Compatibility

  Optimized for systems using pressure contact technology, eliminating bond wire fatigue.

Frequently Asked Questions (FAQ)

1. What is the main function of the 5SLD0600J650100 module?

It serves as a high-voltage, high-current diode module for rectification and freewheeling in power electronics systems.

2. Is it compatible with ABB’s HiPak IGBT modules?

Yes, it is mechanically and thermally compatible with HiPak IGBT modules for hybrid configurations.

3. Can the module be mounted directly on a heatsink?

Yes, it features an insulated baseplate for direct mounting onto heatsinks.

4. What’s the advantage of the HiPak package?

It offers robust mechanical construction, superior heat dissipation, and compact form factor for industrial power modules.

5. What is the maximum repetitive reverse voltage?

The module is rated up to 6500 V for VRRM.

6. What cooling method is recommended?

Forced air or liquid cooling is recommended depending on the application’s power density and thermal profile.

7. Is it RoHS compliant?

Yes, the module conforms to RoHS directives for environmental safety.

8. What kind of protection does the module offer?

It offers galvanic isolation and high surge current handling to protect associated semiconductors.

9. Can it be used in renewable energy applications?

Absolutely, it’s widely used in wind, solar, and energy storage converters.

10. What is the weight of the module?

Thhe module weight is 0.98 kg.
