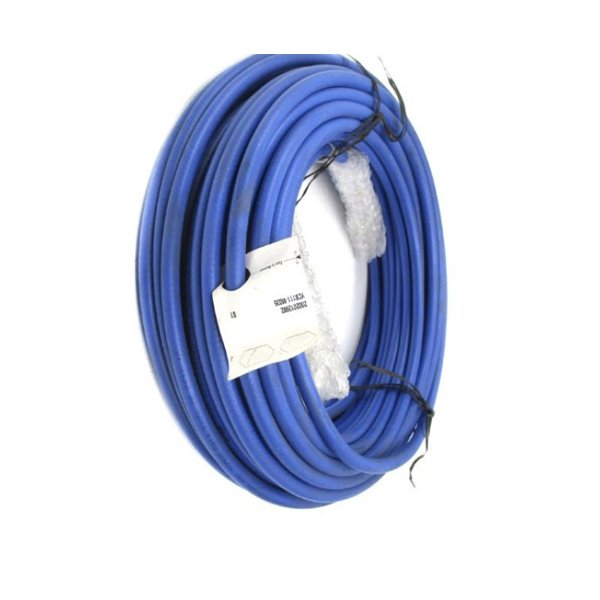

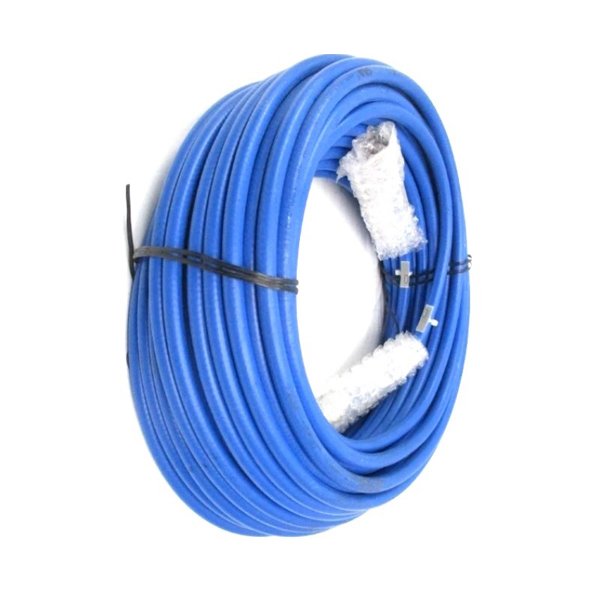

Yokogawa YCB141-M035 Coaxial Cable

The Yokogawa YCB141-M035 Coaxial Cable is a high-performance transmission cable designed for industrial control systems, instrumentation, and signal communication networks. Engineered with precision and strict quality standards, it ensures low-loss signal transfer, reliable shielding against electromagnetic interference, and stable performance in harsh industrial environments. Its construction focuses on durability, flexibility, and electrical stability, making it suitable for long-term use in automation and process control infrastructures.

Product Parameters

Product Applications

• Signal interconnection in distributed control systems (DCS)

• V-net communication in Yokogawa systems

• Process automation data transfer

• Integration of measurement and monitoring devices

• Industrial instrumentation requiring EMI-shielded transmission

• Reliable cabling in mission-critical process plants (oil, gas, chemical, power generation)

Product Advantages

• Excellent Signal Integrity – Designed to minimize attenuation and distortion.

• Strong Shielding Performance – Double shield structure protects against EMI and RFI interference.

• Durability in Harsh Environments – Flame-resistant and robust insulation.

• Compatibility with Yokogawa Systems – Optimized for Yokogawa control network applications.

• Ease of Installation – Flexible jacket and precise dimensions allow easy routing and secure connections.

• Stable Impedance – Maintains consistent impedance characteristics to ensure high reliability in communication systems.

FAQ

Q1: What is the characteristic impedance of the YCB141-M035 cable?

A1: The nominal characteristic impedance is 75 Ω, which is stable across the operating frequency range.

Q2: Does this cable support high-frequency signal transmission?

A2: Yes, it supports stable signal transmission up to several hundred MHz, with low attenuation at 100 MHz.

Q3: How effective is the shielding in reducing electromagnetic interference?

A3: The double-braided plus foil shielding structure provides high protection against EMI and RFI, ensuring signal integrity.

Q4: What type of connectors are compatible with the YCB141-M035?

A4: It is compatible with industry-standard BNC and SMA connectors, depending on the termination requirements.

Q5: Can the cable be used outdoors?

A5: The cable is designed for indoor industrial use, but with additional protective conduit or jacket, it can be used outdoors in controlled conditions.

Q6: How does the cable perform in long-distance transmission?

A6: Over long distances, the cable maintains good signal quality due to low attenuation, especially when paired with proper impedance matching.

Q7: Is the insulation material resistant to chemical exposure?

A7: The polyethylene insulation offers resistance against common industrial chemicals but should be protected from direct long-term chemical exposure.

Q8: Does the cable comply with international flame-resistance standards?

A8: Yes, it complies with IEC 60332-1 flame-resistance standards, ensuring safety in industrial installations.

Q9: Can the cable be used for analog and digital signals?

A9: Yes, it supports both analog and digital signal transmission, making it versatile for control and monitoring systems.

Q10: What is the recommended bending radius for installation?

A10: The recommended minimum bending radius is 10 times the outer diameter, to avoid mechanical stress and maintain performance.
