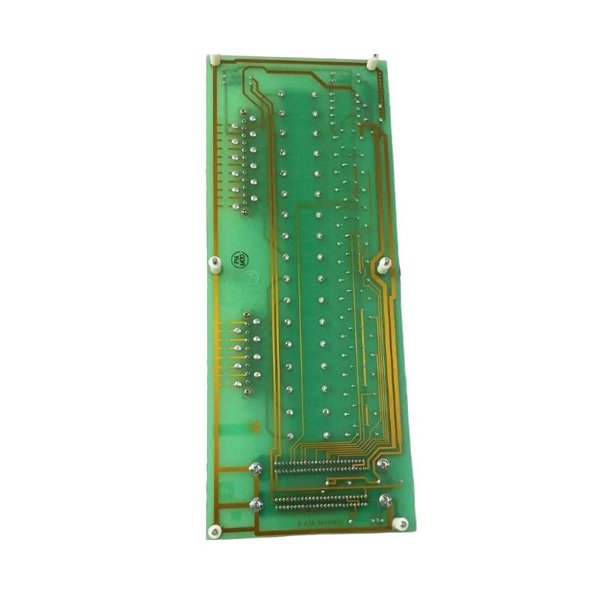

Honeywell MU-TDON12 51304446-100 Digital Output Field Termination Assembly

Honeywell’s MU-TDON12 51304446-100 digital output field termination assembly is designed to provide a reliable interface between Honeywell’s distributed control system (DCS) and discrete field devices requiring precise digital output control. This assembly reliably transmits digital signals to actuators, relays, solenoid valves, and other critical output devices in industrial environments.

Designed for seamless integration with Honeywell’s Experion PKS and TDC 3000 systems, the MU-TDON12 provides high-integrity signal isolation, integrated surge protection, and real-time diagnostics to ensure safe, accurate, and consistent control signal transmission under harsh conditions.

Product Specifications

Product Applications

• Distributed Control Systems (DCS): Acts as the digital output interface between controllers and field devices.

• Industrial Automation: Drives solenoids, relays, and motor starters in manufacturing and processing plants.

• Safety Systems: Provides dependable output signals for emergency shutdown and safety interlocks.

• Power Generation: Controls turbine auxiliaries, circuit breakers, and relays for stable operation.

• Oil & Gas Industry: Supports critical automation in pump control, valve actuation, and safety systems.

• Chemical & Pharmaceutical: Facilitates batch control and discrete device operation in complex processes.

• Manufacturing: Powers machinery, packaging lines, and conveyors for production efficiency.

Product Advantages

• Compact Channel Configuration: 16-channel digital output suitable for medium-density control needs.

• Built-in Surge Protection: Protects connected equipment from voltage spikes and transients.

• Robust Isolation: Electrical and optical isolation improves signal integrity and system safety.

• Visual Diagnostics: LED indicators for each channel allow quick troubleshooting and status verification.

• Full Honeywell System Compatibility: Designed to integrate seamlessly with Experion PKS and TDC 3000 platforms.

• Durable Construction: Withstands industrial stresses such as vibration, temperature fluctuations, and humidity.

• Easy Installation: Plug-in terminal blocks reduce installation time and complexity.

• Low Maintenance: Engineered for reliability, minimizing downtime and service needs.

FAQ

1. How many digital output channels are available on the MU-TDON12?

   The assembly provides 16 isolated digital output channels.

2. What types of isolation are used in this module?

   Both electrical and optical isolation are implemented to safeguard signals and prevent interference.

3. What is the maximum output current per channel?

   Each channel supports up to 0.5 A of output current.

4. Does the MU-TDON12 include surge protection?

   Yes, it has integrated transient voltage suppression to protect field equipment.

5. Is this assembly compatible with redundant DCS architectures?

   Yes, it supports redundancy when used within compatible Honeywell control systems.

6. What is the nominal voltage output of the MU-TDON12?

   The nominal output voltage is 24 VDC, depending on the system and wiring configuration.

7. Are there status indicators on this component?

   Yes, the LED indicators provide real-time channel status to assist with diagnostics.

8. What type of connector does the MU-TDON12 use?

   This component uses plug-in terminal blocks to simplify wiring and maintenance.

9. Does the MU-TDON12 comply with EMC requirements?

   Yes, it complies with EN 61000-6-2 and EN 61000-6-4 standards for industrial environments.

10. Which grounding method is recommended?

    Dedicated shield grounding is recommended to maintain EMI suppression and system reliability.
