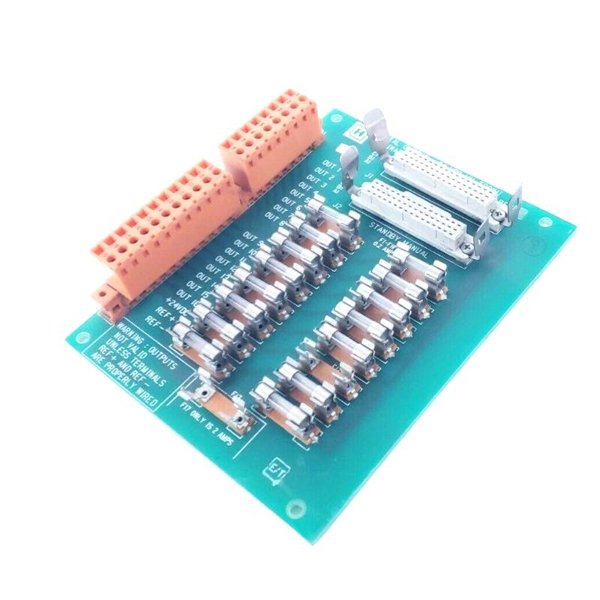

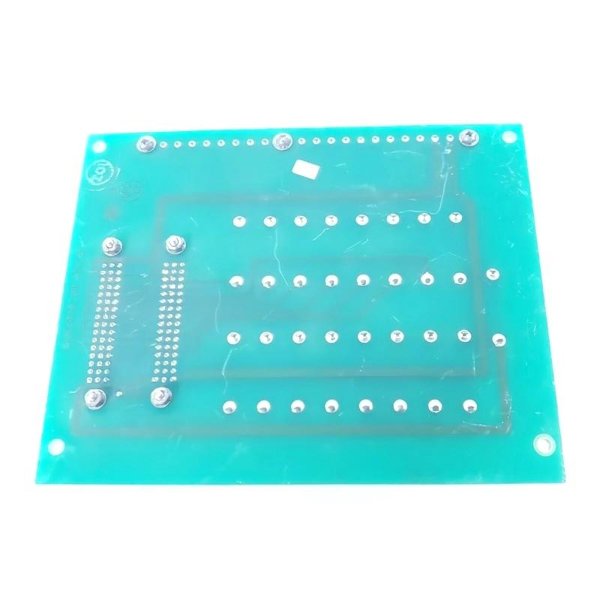

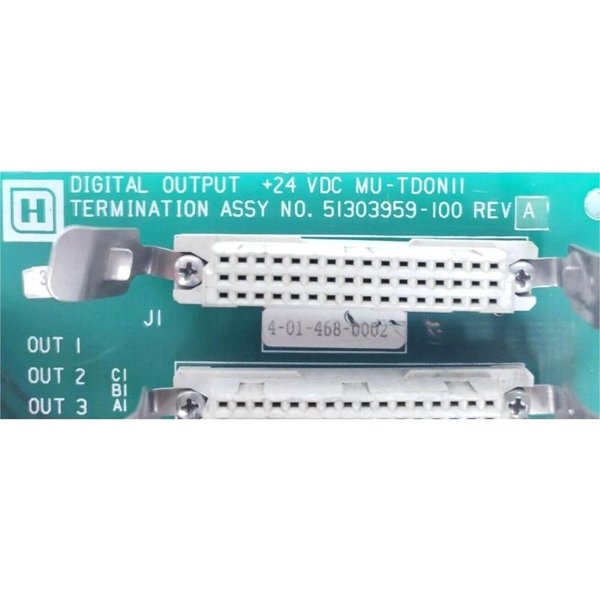

Honeywell MU-TDON11 51303959-100 Digital Output Field Termination Assembly

Honeywell’s MU-TDON11 51303959-100 digital output field termination assembly is designed to provide a reliable interface between Honeywell distributed control systems (DCS) and field devices requiring discrete output control. This module ensures accurate transmission of digital control signals to actuators, solenoid valves, relays, and safety devices in a variety of industrial applications.

As part of Honeywell’s Experion PKS and TDC 3000 systems, the MU-TDON11 is carefully designed to maintain high signal integrity, robust electrical isolation, and integrated surge protection. It can withstand harsh industrial environments and ensure the stable operation of critical control and safety systems.

Product Specifications

Product Applications

• Distributed Control Systems (DCS): Provides termination for digital output signals between controllers and field devices.

• Industrial Automation: Controls actuators, solenoids, and motor starters in production systems.

• Emergency Shutdown Systems: Supports critical safety interlocks and shutdown sequences.

• Power Generation: Interfaces with turbine auxiliary equipment, relays, and breakers.

• Oil & Gas Industry: Provides reliable discrete outputs for pumps, valves, and safety devices.

• Chemical & Pharmaceutical Plants: Supports batch process control and discrete automation systems.

• Manufacturing Lines: Drives packaging machinery, conveyors, and production line actuators.

Product Advantages

• Optimized Channel Count: 16-channel output assembly ideal for medium-density control applications.

• Integrated Surge Protection: Prevents damage from voltage spikes and transient surges.

• High Isolation Integrity: Electrical and optical isolation ensure safety and signal integrity.

• Diagnostic Feedback: LED indicators for each channel simplify troubleshooting and maintenance.

• Honeywell System Integration: Fully compatible with Experion PKS and TDC 3000 systems.

• Industrial Durability: Rugged design withstands vibration, temperature extremes, and harsh environments.

• Simplified Installation: Plug-in terminals reduce wiring complexity and commissioning time.

• Reliable Performance: Designed for critical control systems where uptime is essential.

FAQ

1. How many digital output channels does the MU-TDON11 support?

   It supports 16 isolated digital output channels for discrete control applications.

2. What type of isolation is implemented in the MU-TDON11?

   The assembly provides electrical and optical isolation between output channels and the control bus.

3. What is the maximum current rating per channel?

   Each channel supports up to 0.5 A of output current.

4. Does the MU-TDON11 include built-in surge protection?

   Yes, it integrates transient voltage suppression to protect field devices and controllers.

5. Is this component compatible with redundant DCS architectures?

   Yes, it can be used in redundant control system configurations.

6. What is the nominal output voltage of the MU-TDON11?

   The standard output voltage is 24 VDC, depending on the field wiring configuration.

7. Are there LED indicators included for diagnostic purposes?

   Yes, each channel has an LED indicator to indicate output status and aid in troubleshooting.

8. What type of connector does the MU-TDON11 use?

   It uses plug-in terminal blocks to simplify wiring and maintenance.

9. Does the MU-TDON11 comply with industrial EMC standards?

   Yes, it complies with the EN 61000-6-2 and EN 61000-6-4 electromagnetic compatibility standards.

10. What grounding configuration is recommended for this component?

    A dedicated shield ground is recommended to suppress EMI and ensure stable system operation.
