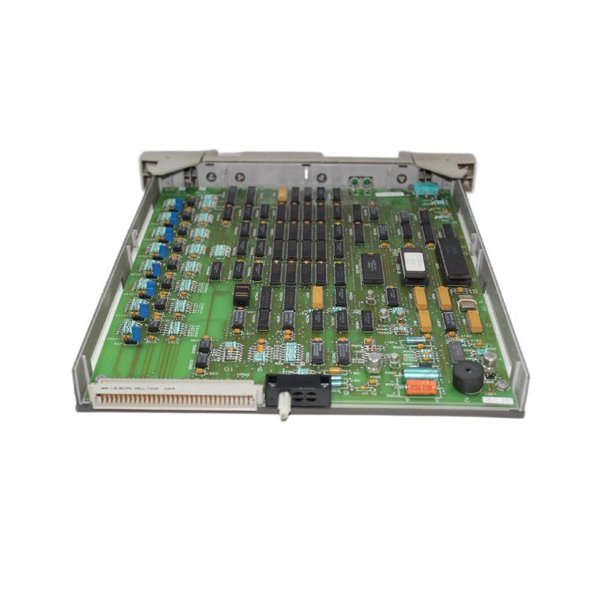

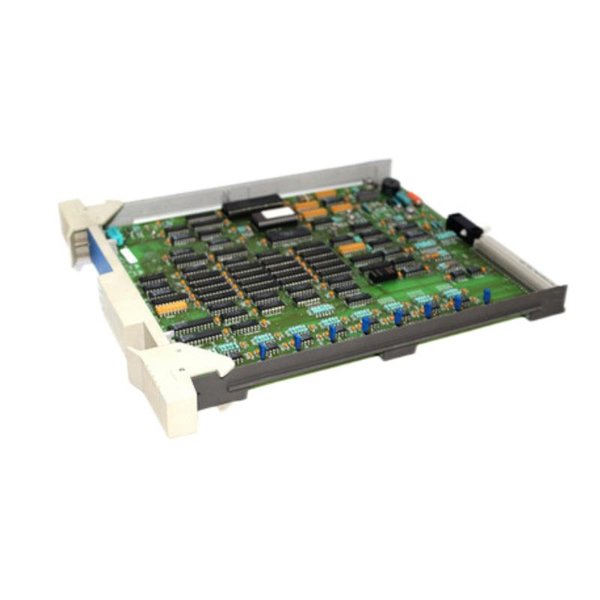

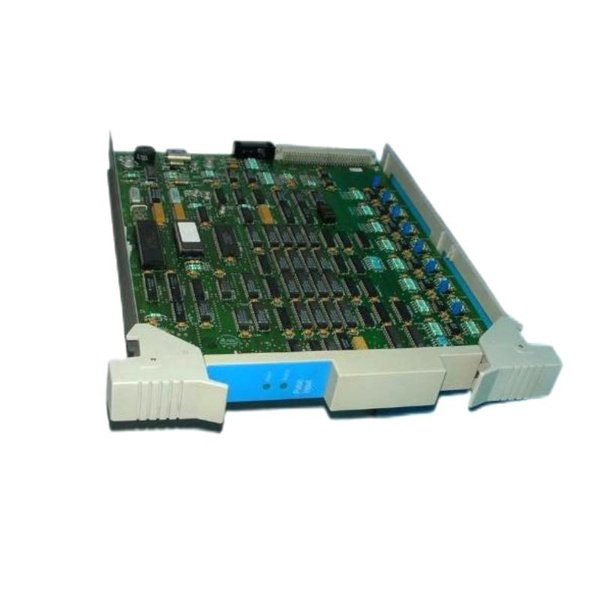

Honeywell MU-PPIX02 51304386-100 Pulse Input Processor Card

The Honeywell MU-PPIX02 51304386-100 is a pulse input processor card designed for use in industrial control systems. This compact, high-performance card is engineered to interface with a variety of pulse-generating devices, such as flow meters, counters, and other instrumentation. It efficiently converts pulse signals into digital data, allowing accurate monitoring and control within automation systems.

The MU-PPIX02 is specifically designed to handle the high-speed processing of pulses, enabling seamless data collection and communication for a wide range of industrial applications. It can be used in control systems for process automation, monitoring, and process control, enhancing operational efficiency and data accuracy.

Product Specifications

Applications

The Honeywell MU-PPIX02 51304386-100 is widely used in industries where pulse-based signals need to be accurately captured and processed, including:

• Flow Measurement: Often used with flow meters in oil & gas, water treatment, and chemical industries to accurately measure fluid flow.

• Metering Systems: Ideal for utility metering applications in energy and water systems.

• Production Monitoring: Used in automated manufacturing to count production cycles, parts, or products.

• Data Acquisition: Used in systems that require high-speed data acquisition and processing of pulse signals.

• Instrumentation: Used in laboratory and process equipment that generate pulse signals.

Its versatility and high-speed processing capabilities make it an essential component in many control systems, contributing to improved process efficiency and accuracy.

Product Advantages

• High-Speed Processing: Designed to handle high-frequency pulse signals, ensuring fast and accurate data acquisition.

• Compact and Lightweight: With its small size and low weight, the MU-PPIX02 is easy to integrate into existing control systems without taking up excessive space.

• Seamless Integration: Fully compatible with Honeywell’s range of control systems, ensuring smooth data flow and compatibility.

• Versatile Applications: Suitable for a wide range of industrial applications, including flow measurement, production monitoring, and data acquisition.

• Reliability: Built to operate in harsh industrial environments, the MU-PPIX02 is engineered for durability and long-term performance.

• Cost-Effective: Provides advanced processing capabilities at a competitive price, making it an economical solution for industrial automation.

FAQs

1. Q: What is the input type for the Honeywell MU-PPIX02 51304386-100?

   • A: The input type for this processor card is pulse input, designed to handle high-frequency pulse signals from various devices.

2. Q: Can the MU-PPIX02 be used with Honeywell control systems?

   • A: Yes, the MU-PPIX02 is fully compatible with Honeywell’s range of control systems for seamless data integration.

3. Q: What is the operating temperature range for the MU-PPIX02?

   • A: The MU-PPIX02 operates in temperatures ranging from -40°C to 85°C, making it suitable for use in a wide range of environments.

4. Q: How is the MU-PPIX02 mounted?

   • A: The processor card is mounted in a PCI/PCIe slot, making it easy to integrate into existing control systems.

5. Q: What types of applications is the MU-PPIX02 suitable for?

   • A: It is ideal for flow measurement, metering systems, production monitoring, data acquisition, and instrumentation.

6. Q: What are the power requirements for the MU-PPIX02?

   • A: The MU-PPIX02 requires a 24V DC power supply to operate.

7. Q: What output type does the MU-PPIX02 provide?

   • A: The processor card provides a digital output, making it compatible with digital control systems.

8. Q: What is the weight of the MU-PPIX02?

   • A: The MU-PPIX02 weighs only 0.15 kg, making it lightweight and easy to install.

9. Q: What certifications does the MU-PPIX02 have?

   • A: The MU-PPIX02 is certified with CE and UL, ensuring compliance with international safety standards.

10. Q: Can the MU-PPIX02 be used in hazardous environments?

    • A: While the MU-PPIX02 is built for reliability, it is recommended to check the specific installation and environmental requirements for use in hazardous areas.
