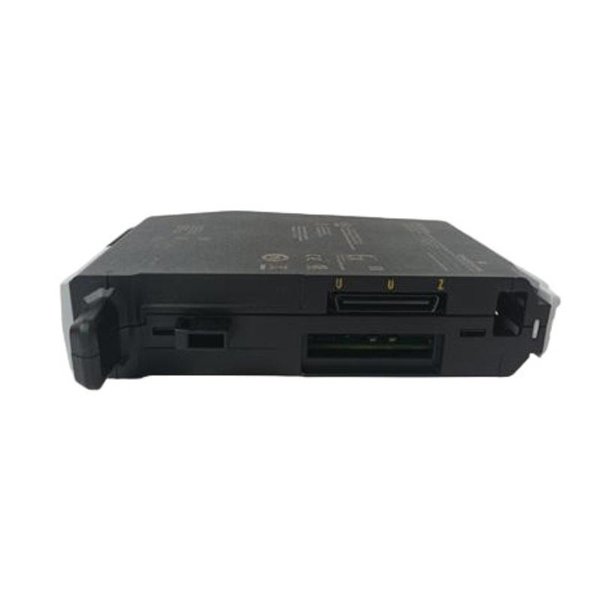

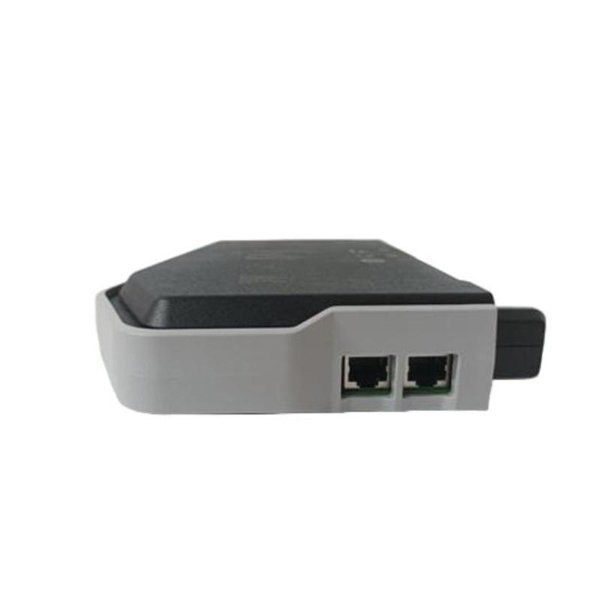

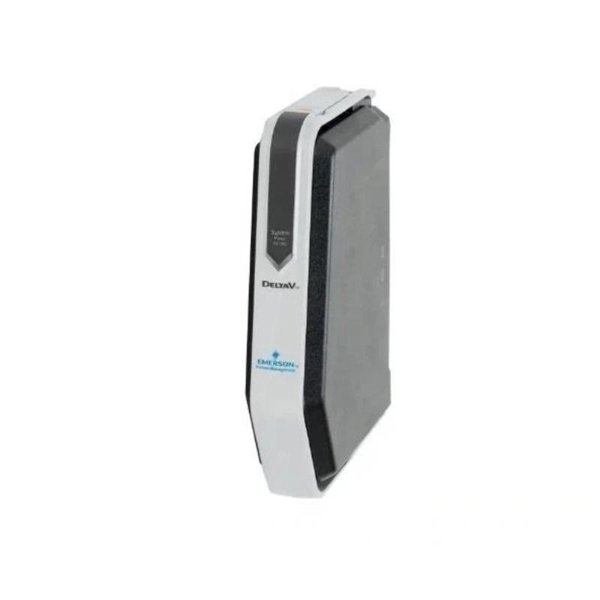

Emerson KJ1501X1-BC4 Power Module

The Emerson KJ1501X1-BC4 Power Module is a vital component of the DeltaV™ distributed control system. It supplies regulated power to the DeltaV CHARM I/O modules, ensuring stable and reliable operation. Designed for high efficiency and robust performance, this module supports critical automation processes across various industrial sectors.

Key Features

• Provides stable, regulated power for DeltaV CHARM I/O modules

• High efficiency with low power loss

• Compact design for easy integration in control cabinets

• Designed to operate reliably under industrial conditions

• Supports wide temperature and humidity ranges

• Meets industrial safety and electromagnetic compatibility standards

Technical Specifications

Industry Applications

• Distributed control systems (DCS) power supply

• Process automation in oil & gas, chemical, power generation, and manufacturing

• Providing reliable power for DeltaV CHARM I/O modules

• Industrial environments requiring robust and efficient power modules

Product Advantages

• Ensures continuous and stable power delivery for critical control components

• Compact and efficient design reduces cabinet space and energy consumption

• Wide input voltage range allows global application

• Robust construction for long-term reliability in harsh environments

• Compliance with key industrial standards guarantees safe operation

Frequently Asked Questions (FAQ)

1. What input voltage range does the KJ1501X1-BC4 support?

   It supports 100-240 VAC at 50/60 Hz.

2. What output voltage and current does the module provide?

   24 VDC ±5%, up to 5 A output current.

3. Can this power module operate in harsh environments?

   Yes, it is designed to operate reliably from 0°C to 60°C and withstands industrial conditions.

4. Is the module compatible with DeltaV CHARM I/O modules?

   Yes, it is specifically designed to power DeltaV CHARM modules.

5. What are the module dimensions?

   Approximately 125mm x 105mm x 40 mm.

6. Does it have safety certifications?

   Yes, it holds UL, CE, and cUL certifications.

7. What is the efficiency of the power module?

   Typically greater than 85%.

8. Is the power module fan-cooled or convection-cooled?

   It is convection-cooled for silent and maintenance-free operation.

9. Can it be used worldwide?

   Yes, the wide input voltage range makes it suitable for global use.

10. What is the expected lifespan of this power module?

    When used according to specifications, it offers long-term reliable service typical of Emerson products.
