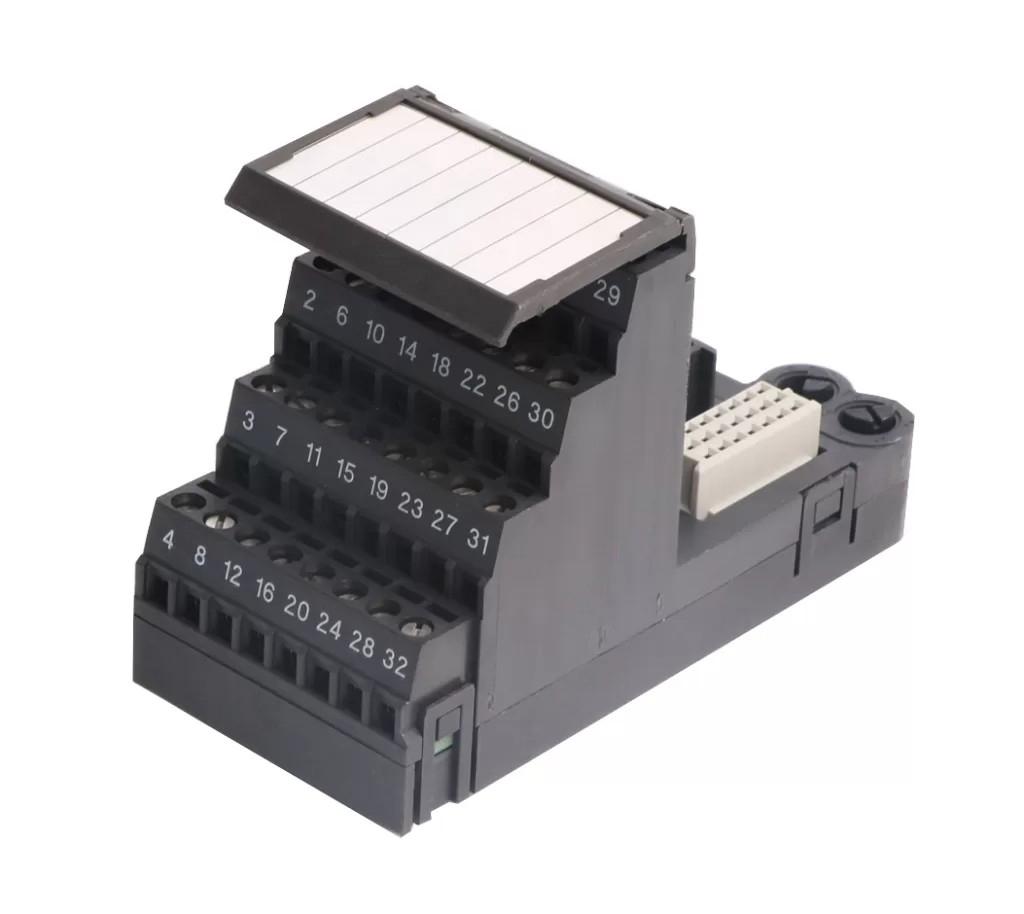

EMERSON DELTAV KJ4001X1-CJ1 32 Channel Terminal Block

The EMERSON DELTAV KJ4001X1-CJ1 32 Channel Terminal Block is a hazardous area terminal block that is certified for use in Zone 2 hazardous areas. It has a voltage rating of 30 VDC and a maximum current rating of 1 A. The terminal block is compatible with DeltaV I/O cards and is designed to be installed and removed without the need for special tools.

Hazardous Atmosphere Classification

• II 3 G
• Nemko No. 02ATEX431U
• EEx nA IIC T4

Power Specifications

• Voltage Rating: 30 VDC
• Maximum Current: 1 A

Environmental Specifications

• Ambient Temperature Range: 0 to 60°C
• Shock Resistance: 10g, ½ Sinewave for 11 msec
• Vibration Tolerance: 1mm Peak to Peak from 5 to 16Hz; 0.5g from 16 to 150Hz
• Airborne Contaminants Class: ISA-S71.04 –1985 Airborne Contaminants Class G3
• Relative Humidity: 5 to 95% (Non-Condensing)
• IP Rating: IP 20

Additional Information

• To locate the serial number, production date, and installation site, you should consult the product label.
• The terminal block features a rotary keying system to ensure compatibility between I/O cards and terminal blocks.
• Important note: This unit is not designed for user maintenance or adjustment since it does not contain user-serviceable parts and should not be disassembled.
• Calibration is unnecessary for this product.
• The document also highlights additional safety certifications, including LR87534 approval for hazardous locations classified as Class I Division 2, with a temperature rating of T4.
