Emerson EPRO PR9350/02 Inductive Sensor (LVDT Sensor)
Brand: Emerson
Model Number: PR9350/02
Type: Inductive Sensor
Product Origin: Germany
Payment: T/T, Western Union, Credit Card
Warranty: 1 year
Product Description
Surface contact sensor designed for critical turbomachinery applications such as steam, gas and hydro turbines, compressors, pumps and fans to measure radial and axial shaft dynamic displacement, position and eccentricity. The Emerson EPRO PR9350/02 is designed to work under tough environmental conditions.
Features Of PR9350/02
- Options include field or enclosure mounting, small to large shaft measurements and industry safety ratings
- Eddy current sensors feature focused measurement areas over air-coil-based sensors
Technical Specifications
| Dynamic Performance | Range | Sensitivity | Linearity Error |
|---|---|---|---|
| PR9350/01 | ±12 mm | 110 mV/V | 3.5% |
| PR9350/02 | ±25 mm | 270 mV/V | 3.5% |
| PR9350/04 | ±50 mm | 270 mV/V | 2.5% |
| PR9350/06 | ±75 mm | 310 mV/V | 2.0% |
| PR9350/08 | ±100 mm | 310 mV/V | 2.0% |
| PR9350/12 | ±150 mm | 340 mV/V | 1.5% |
Environmental:
- Operating Temperature Range: -20 to 100°C (-4 to 212°F)
- Temperature Error: <3%
Power & Electrical:
- Supply Voltage: 5 Vrms
- Carrier Frequency: 3 to 5 kHz
- Capacitance: 250 pF (each winding)
Accessories:
- Includes:
- Solenoid plunger with M3 threaded rod
- Connector: Cannon CA06COME10SL3S44 ITT Can

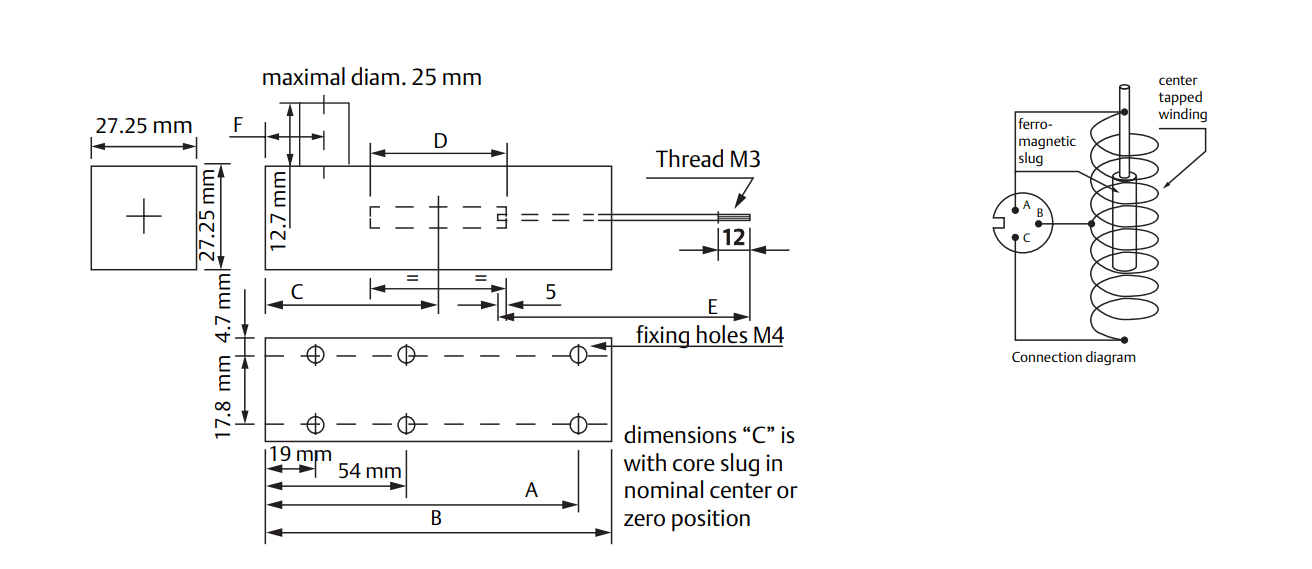

Physical
| Grams | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | |
|---|---|---|---|---|---|---|---|
| PR9350/02 | 255 | 108 | 127 | 65.4 | 76.2 | 123.2 | 25.4 |
