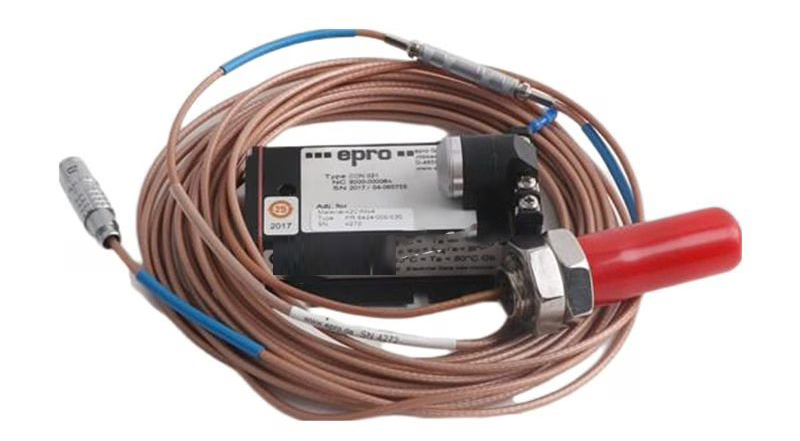

Epro CON021+PR6424/000-030 Eddy Current Sensor
Product Number: CON021 + PR6424/000-030
Category: Eddy Current Sensor System
Sensor Type: Non-contact eddy current displacement sensor (PR6424, 11mm typical)
Converter: CON021 signal converter
Probe Length: Standard front mount (specified by -000)
Cable Length: 3.0 meters (specified by -030)
System Compatibility: MMS 3000/6000 monitoring systems
Application: Shaft vibration, radial position, axial thrust measurement for larger shafts
Product Description
The EPRO CON021 and PR6424/000-030 form a combined system for precise displacement measurement. This solution is ideal for critical turbomachinery applications such as turbines, compressors, and pumps.
CON021 Signal Converter
Frequency Range: 0 to 20,000 Hz.
Rise Time: <15 μs.
Operating Temperature: -30°C to +100°C (-22°F to +212°F).
Power Supply: -23V to -32V DC.
Output Voltage Range: -4V to -20V or -2V to -18V.
Protection Class: IP20.
Certifications: ATEX, IECEx, CSA for hazardous areas.
PR6424/000-030 Displacement Sensor
Measurement Range: ±2 mm (static).
Sensitivity: 4 V/mm (101.6 mV/mil).
Nominal Air Gap: Approx. 2.7 mm (0.11 inches).
Frequency Response: Up to 20,000 Hz.
Operating Temperature: -35°C to +150°C (-31°F to +302°F).
Material: Stainless steel housing with PTFE cable.
Protection Class: IP66.
Certifications: ATEX, IECEx, CSA for hazardous areas.
