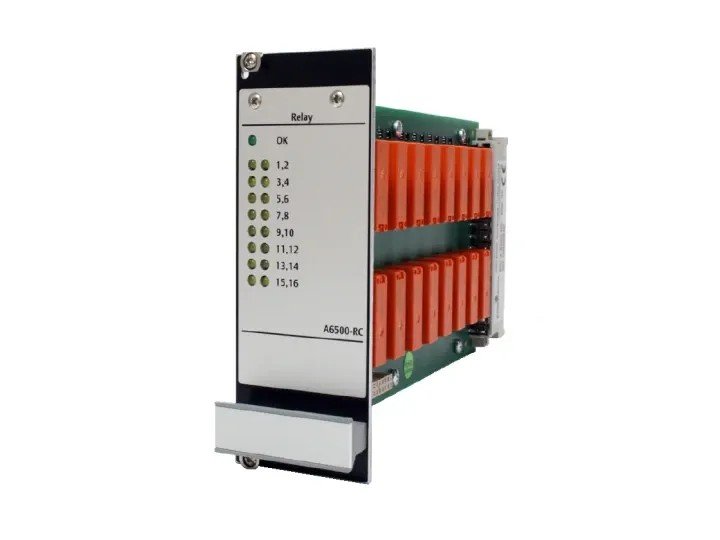

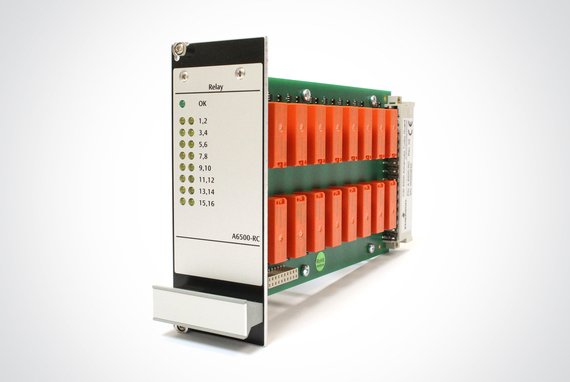

The EPRO A6500-RC 16-Channel Output Relay Module is designed for high reliability, catering to the most critical rotating machinery within a plant. It is a key component of the API 670 machinery protection system, used alongside the CSI 6500 ATG to create a comprehensive monitoring setup. Its applications encompass steam, gas, compressors, and hydro turbo machinery.

Any channel’s clear, alert, or alarm signal can be designated as input to the 16-Channel Output Relay Module. By employing Boolean logic, applying time delay, and selecting output relays, configuration is seamlessly achieved. The user-friendly software offers graphical logic displays, guiding users through configuration with visual aids.

The CSI 6500 Machinery Health Monitor, a fundamental part of PlantWeb® and AMS Suite, adds value to operations by integrating machinery health insights with Ovation® and DeltaV™ process control systems. AMS Suite empowers maintenance personnel with advanced predictive and performance diagnostic tools, ensuring the early detection of machine malfunctions.

Data Output

– Relays: Redundant relay configurable

– Mechanical relays as per API 670 specification

– Supply Voltage: 19-32 VDC

– Contact Load: AC/DC – 48/32 V – 2A

– Normally open or normally closed, selectable

– Single pole, double throw (SPDT)

– Logic: Redundant relay configurable

– Logic Gates: AND, OR, XOR, SR, RS, MooN, Pos, Neg

– Up to 16 logic networks definable per A6500-RC module

– Inputs: 66 inputs, including:

– Channel clear (slot number), Channel 1 and 2

– Alert (slot number), Channel 1 and 2

– Danger (slot number), Channel 1 and 2

– Outputs: Relay 1-16

– Time Delay: 0-1000 seconds

A6500-RC Features

– 3U size, 2-slot plug-in module reduces cabinet space by half compared to traditional 6U size cards

– API 670 compliant, hot-swappable module

– 66 inputs, 16 logic networks, and 16 relay outputs

– A6500-RC is a 10TE wide module for the A6500-SR rack

Environmental Specifications

– Protection Class: IP 20, IEC 60529

– Operating Temperature: -20°C to 70°C (-4°F to 185°F)

– Temperature for Storage and Transport: -40°C to 85°C (-40°F to 185°F)

– Relative Humidity: 5–95%, non-condensing

– Vibration: IEC 68-2, part 6; 0.15mm, 10-55HZ; 20m/s², 55-150Hz

– Shock: IEC 60068-2-27; 150 m/s², 4000 shocks per axis

– EMC Resistance: EN50081-1 / EN50082-2

– Power Consumption: Max. 6W

Module Dimensions

– PCB/EURO card format according to DIN 41494, 100 x 160mm (3.937 x 6.300in)

– Width: 60mm (2.362in) (12 TE)

– Height: 128.4mm (5.055in) (3 HE)

– Length: 160mm (6.300in)

– Net Weight: approx. 320g (0.705lbs)

– Gross Weight: approx. 450g (0.992lbs)

– Packing Volume: approx. 2.5dm3 (0.088ft3)

For further information, refer to the Specifications Sheet (November 2015) of the CSI 6500 Machinery Health™ Monitor.
