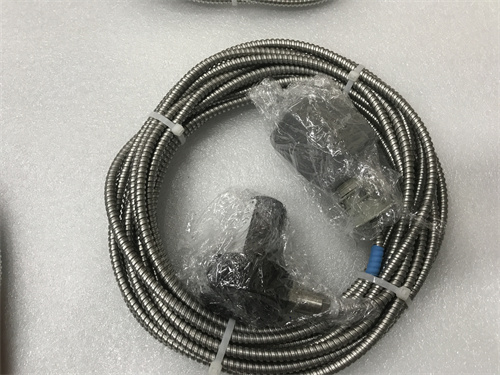

EPRO PR9268 203-000 Product Details

EPRO PR9268/203-000 eddy current sensor is produced by EPRO of Germany and is widely used in various industrial fields and laboratories.It has the advantages of small size and high reliability.It adopts non-contact measurement method and can measure physical quantities such as the gap between the rotating part and the fixed part,the vibration and eccentricity of the shaft,and the radial and axial displacement of the shaft.

Main features

High-precision measurement:EPRO PR9268/203-000 eddy current sensor has high-precision measurement capability and can accurately measure various physical quantities,such as shaft vibration and displacement.

Non-contact measurement:The sensor adopts non-contact measurement method to avoid wear and error caused by contact,and improve the accuracy and stability of measurement.

Multiple measurement ranges:The sensor provides a variety of measurement range options,such as 1mm to 20mm,etc.,which can be configured according to specific measurement needs.

Multiple configuration options:In order to meet various measurement needs and environmental requirements,EPRO provides eddy current sensors of various models and configurations for users to choose from.The sensor is equipped with mounting threads or rectangular mounting flanges,which is convenient for users to install and debug.

High explosion-proof level:After the sensor is equipped with a safety barrier,it can work in an environment that requires explosion-proof,and the explosion-proof level can reach Eex ib IIC T6/T4,ensuring safe operation in hazardous environments.

Application fields

EPRO PR9268/203-000 eddy current sensor can be used in the following fields

Steam turbine monitoring and protection system:The sensor can be directly connected to the MMS 3000 and MMS 6000 steam turbine monitoring and protection systems produced by EPRO to monitor and protect the safe operation of steam turbine equipment.

Industrial measurement:The sensor can be used to measure physical quantities such as vibration and displacement of various industrial equipment,such as turbomachinery,fans,compressors,gearboxes,water pumps,coal mills,etc.

Laboratory research:In the laboratory,the sensor can be used to measure and study various physical quantities,such as material mechanical properties testing,vibration analysis,etc.

Technical parameters

The main technical parameters of the EPRO PR9268/203-000 eddy current sensor include

Measuring range:1mm to 20mm(depending on the model).

Thread size:Φ6mm,Φ10mm andΦ18mm metric or imperial threads(depending on the model).

Applicable temperature:-35℃to+380℃.

Sensitivity:Depending on the model,the sensitivity varies,such as the sensitivity of the PR6422/…range is 16V/mm,the sensitivity of the PR6423/…range is 8V/mm,etc.

Rated air gap:to the midpoint of the measuring range,which varies according to the model,such as the rated air gap of the PR6422/…range is 0.8mm,the rated air gap of the PR6423/…range is 1.5mm,etc.
