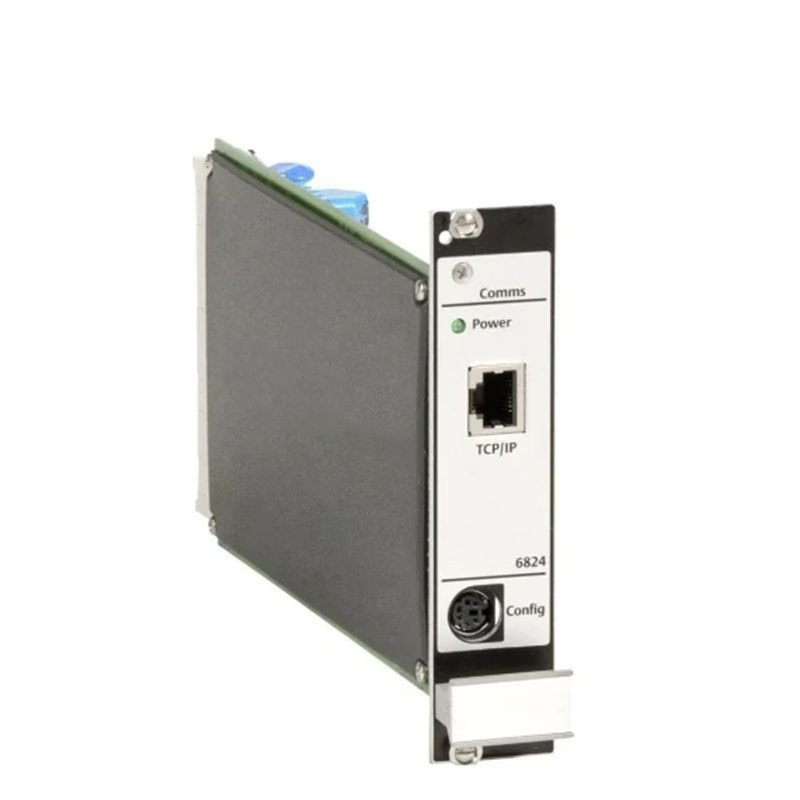

Epro MMS6824 Interface Card Most Favorable

The EPRO MMS6824 is an interface card for the MMS 6000 machine monitoring system. It collects vibration and condition monitoring data from up to 31 modules via RS485. Then, it converts this data into Modbus RTU and Modbus TCP/IP, enabling direct integration with SCADA, DCS, and other supervisory systems. Engineers can configure the connected modules using the built-in RS232 front socket. With high vibration resistance and reliable industrial-grade design, the MMS6824 ensures continuous, accurate data exchange.

Technical Specifications

System Compatibility

• System: MMS 6000 Machine Monitoring System
• Supported Modules: Up to 31 per card

Inputs

• RS485 Ports: 6 channels (EPRO protocol)

Outputs

• Modbus RTU: 48-pole blade connector, 9.6 or 19.2 kBaud
• Modbus TCP/IP: RJ45 Ethernet, 10Base-T

Configuration Interface

• RS232: Front socket for setup and diagnostics

Power Supply

• Voltage Range: 18–31.2 VDC
• Redundancy: Yes, per IEC 654-2 Class DC4
• Consumption: Max 3 W

Environmental Conditions

• Operating Temp: 0°C to +65°C
• Storage Temp: -40°C to +85°C
• Humidity: 5% to 95%, non-condensing
• Protection: IP00 (module), IP21 (frontplate)

Mechanical & Physical

• Format: Euro-card (DIN 41494)
• Dimensions: 100 × 160 mm
• Width: 20 mm (4 TE)
• Height: 128 mm (3 HE)
• Weight: Approx. 250 g

Vibration & Shock Resistance

• Vibration Amplitude: 0.15 mm (10–55 Hz)
• Acceleration: 16.6 m/s² (55–150 Hz)
• Shock: 98 m/s² for 16 ms (IEC 68-2-29)

EMC Compliance

• Standards: EN50081-1 / EN50082-2
