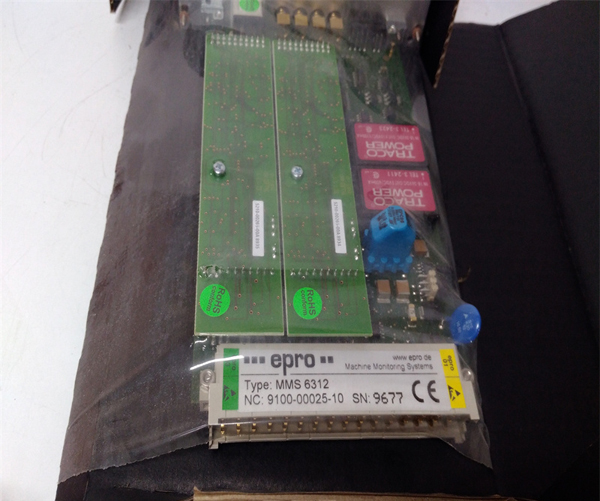

EPRO MMS6312 Product Introduction

EPRO MMS6312 dual-channel speed monitor is a high-performance speed monitoring device commonly used in the industrial field.It adopts a dual-channel design,which can monitor the speed data of two channels at the same time,providing users with accurate and reliable equipment operation information.

Main Features

Dual-channel design

MMS6312 is equipped with two independent monitoring channels,which can monitor the speed of two shafts at the same time,improving the accuracy and reliability of monitoring.

Advanced measurement technology

Advanced measurement technology can be used to accurately measure the speed of the shaft and convert the speed signal into a standard signal output.

Versatility

In addition to speed monitoring,it also provides alarm,self-test and redundant power input functions to ensure stable operation of the equipment.

Supporting multiple interfaces and network connections,users can easily integrate it into the existing monitoring system to achieve remote monitoring and data transmission.

Sensor compatibility

Channel 1 and channel 2 have independent sensor signal inputs,supporting eddy current sensors or Hall effect sensors.

Output signal

Provides two TTL pulse outputs,one for each channel,with a voltage range of 0 to+5V.

Two keying signal outputs,one for each channel,with an output voltage of typically 24V.

Two current outputs for displaying the speed,one for each channel,with an output range of 0/4~20mA.

Alarm output

Provides 4 independent alarm outputs,which can be configured according to user requirements,such as”up limit”,”down limit”,”cranking”,”differential speed”,etc.

Self-test function

The module has a self-test function that can detect sensor and module failures and improve system reliability.

Field configuration and communication

Supports field configuration and communication,can read measured values,and facilitates users to set parameters and read data.

Application scenarios

EPRO MMS6312 dual-channel speed monitor is widely used in various industrial fields that require speed monitoring,including but not limited to

Turbine:used to monitor the speed of the turbine to ensure safe and stable operation of the equipment.

Compressor:used to monitor the speed of the compressor to prevent equipment failure and shutdown.

Fan:used to monitor the speed of the fan to improve production efficiency and product quality.

Generator:used to monitor the speed of the generator to ensure the stability and reliability of the power supply.

Centrifuge:used to monitor the speed of the centrifuge to ensure its normal operation and extend its service life.
