The MMS 6350D is a speed monitor featuring a digital display suitable for various applications, including turbines, fans, and other rotating machinery.

Key Features

• Displays the current speed
• Communicates via the PROFIBUS-DP network
• Compares actual speed with a set value and triggers an alarm for overspeed
• Monitors sensor gaps and status, issuing alerts in case of malfunctions
• Operates on a 24V DC power supply

MMS 6350D/DP

The MMS 6350D/DP is an extended version of the MMS 6350D, furnished with a PROFIBUS-DP interface for seamless communication with other devices.

Specifications

• Three monitors: MMS 6350D (/DP)
• Firmware application number: 0 (with speed display, PROFIBUS interface optional)
• Firmware application number: 2 (with speed display, PROFIBUS interface optional)

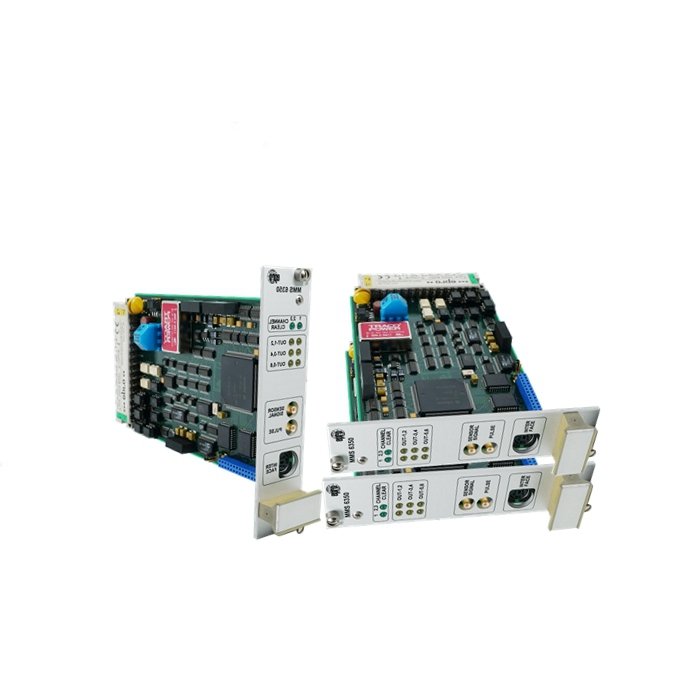

MMS 6350D/DP Components

• 8-digit alphanumerical LED matrix in green
• 6 yellow LEDs for function/limit values
• 2 green LEDs: LED 1 for channel supervision, LED 2 and 3 for indicating adjacent system channel status
• 1 Mini DIN diode socket for RS232 interface (for configuration and data interchange with a computer)
• 1 SUB-D socket (9-pole) for connection of the Profibus DP system cable
• Handle for module insertion/extraction and labeling purposes
