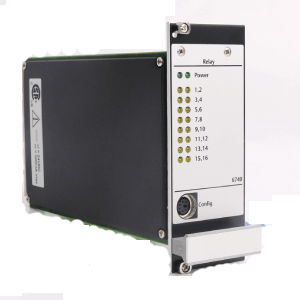

Emerson Epro A6740 16-Channel Output Relay Module
Brand:Emerson
Item No.:A6740
Payment:T/T, Western Union, Credit Card
Product Origin:Germany
Product Type: 16-Channel Output Relay Module
Condition:Brand New And Original
Width: 60mm (2.362in) (12 TE)
Height: 128.4mm (5.055in) (3 HE)
Length: 160mm (6.300in)
Net Weight: app 320g (0.705lbs)
Gross Weight: app 450g (0.992lbs)
Packing Volume: app 2.5dm3 (0.08ft3)
Warranty:1 Year
Certificate:COO
Shipping Port:Xiamen, China
Product Description
The 16-Channel Output Relay Module is designed for high reliability for the plant’s most critical rotating machinery. This 2-slot monitor is used together with the AMS 6500 to build a complete API 670 machinery protection monitor. Applications include steam, gas, compressors and hydro turbo machinery.
Any channel clear, alert or alarm signal can be selected as input to the 16-Channel Output Relay Module. Use Boolean logic, apply time delay, and select an output relay to complete the configuration. Easy-to-use software provides graphical logic displays that guide the user pictorially through configuration.
The AMS 6500 Machinery Health Monitor is an integral part of PlantWeb® and AMS software. PlantWeb provides operations integrated machinery health combined with the Ovation® and DeltaV™ process control system. AMS software provides maintenance personnel advanced predictive and performance diagnostic tools to confidently and accurately determine machine malfunctions early.
Key Features
- 3U size, 2-slot plug-in module decreases cabinet space requirements in half from traditional 6U size cards
- API 670 compliant, hot swappable module
- 60 inputs, 30 logical expressions,
- 16 relay outputs
- 6740 is a 12TE wide module for
- IMR6000 series rack
Technical Specifications
| Data Output | |
| Relays |
Redundant relay configurable Mechanical relays per API 670 specification Control voltage: 13-32 VDC Contact load: 48 V, 1 A Normally open or Normally closed, selectable Normally energized, or Normally
non-energized, selectable Single pole, double throw (SPDT) |
| Logic |
Redundant relay configurable Off, AND, OR, 2 out of 3, AND AND OR Up
to 30 logic expressions definable per 6740 module |
| Inputs |
60 inputs of type:
„ Channel clear (slot number), channel 1 and 2 „ Alert (slot number), channel 1 and 2 „ Danger (slot number), channel 1 and 2 |
| Outputs | Relay 1 – 16 |
| Time Delay | 0 – 30 seconds |
| Handle | Easily remove card and provide plate for module identification |
| Environmental, General | |
| Module | IP 00, DIN 40050 |
| Front Plate | IP 20, DIN 40050 |
| Climate | DIN 40040 class KTF |
| Operating Temperature | 0° – 65°C (32° – 149°F) |
| Temperature for Storage and Transport | -40° – 70°C (-40° – 158°F) |
| Relative Humidity | 5 – 95%, non-condensing |
|
Vibration
– Vibration – Acceleration |
„ IEC 68-2, part 6
„ 0.15 mm, 10 – 55HZ „ 19.6 mm/s2, 55 – 150 Hz |
|
Shock
– Shock Duration |
„ IEC 68-2, part 29
„ 98 m/s2 (9.98 g’s peak) „ 16 msec |
| EMC Resistance | EN50081-1 / EN50082-2 |
| Power Consumption | Max. 6 W |
| Configuration | Password protected |
